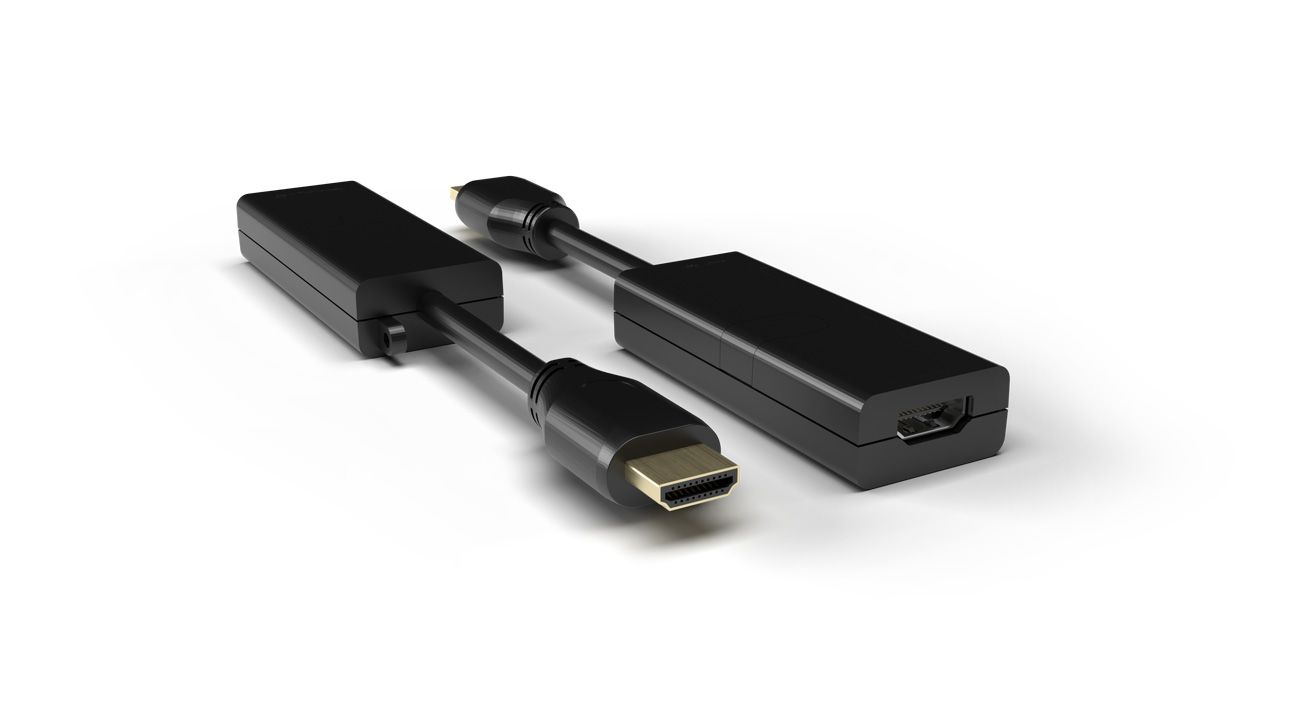

HDMI to HDMI Secure Video Isolator - 4K/1080P
FV11HH-MM
Save $85.67
The Secure Mini Video Isolator prevents vulnerable peripherals from transferring data between compromised and secure computers and devices. The Secure Mini Video Isolator provides the highest possible computer & peripheral isolation as demanded by government agencies, the military, financial and healthcare institutions, and other security-conscious customers. Key features:
- 4 pre-defined EDID files, up to 4K 30HZ support
- Small, easy to use form factor for easy installation
- No external power supply required
The Isolator perfectly suits scenarios where vulnerable peripherals or computers may impose a security threat. For example, in a secure meeting room, when an unsupervised (non-secure) guest laptop must be connected to a projector that is shared with a classified computer. By isolating the classified computer from the projector, the Secure Mini Video Isolator protects the classified computer from being infected by a guest computer compromising a projector vulnerability. The Secure Mini Video Isolator isolates the EDID lines by allowing the user to select between four, pre-defined, EDID files thereby preventing any direct connection between the display to the computer. Other bi-directional video lines, such as HDCP, are terminated and will not work.
High Sec Labs FV11HH-MM Secure Mini Video Isolator Application Diagram
Features of the FV11HH-MM HDMI to HDMI Secure Isolator
- Highest security by design Designed to support isolation of large KVM matrix and conference room equipment.
- Hardware Based peripheral protection/isolation Absolutely no dependency on firmware or software.
- All firmware is in ROM (Read Only Memory).
- Display Plug & Play (EDID) protection Fixed EDID module, Preventing any EDID negotiation. Leakage prevention through patented emulated technology. Signaling attacks prevented by design.
- Tamper Evident Label Special holographic tampering evident labels on the product's enclosure provide a clear visual indication if the product has been opened or compromised.
FV11HH-MM Resources
Mini Video Isolator Datasheet (PDF)
Secure Isolator Brochure (PDF)
High Sec Labs FV11HH-MM Specifications
| Mechanical | |
| Dimensions | 22 (W) x 180 (D) x 14 (H) mm 0.86 (W) x 7.0 (D) x 0.55 (H) inch |
| Weight | 0.25kg / .55lb |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Video | |
| Display Side | 1 x HDMI |
| Computer Side | 1 x HDMI |

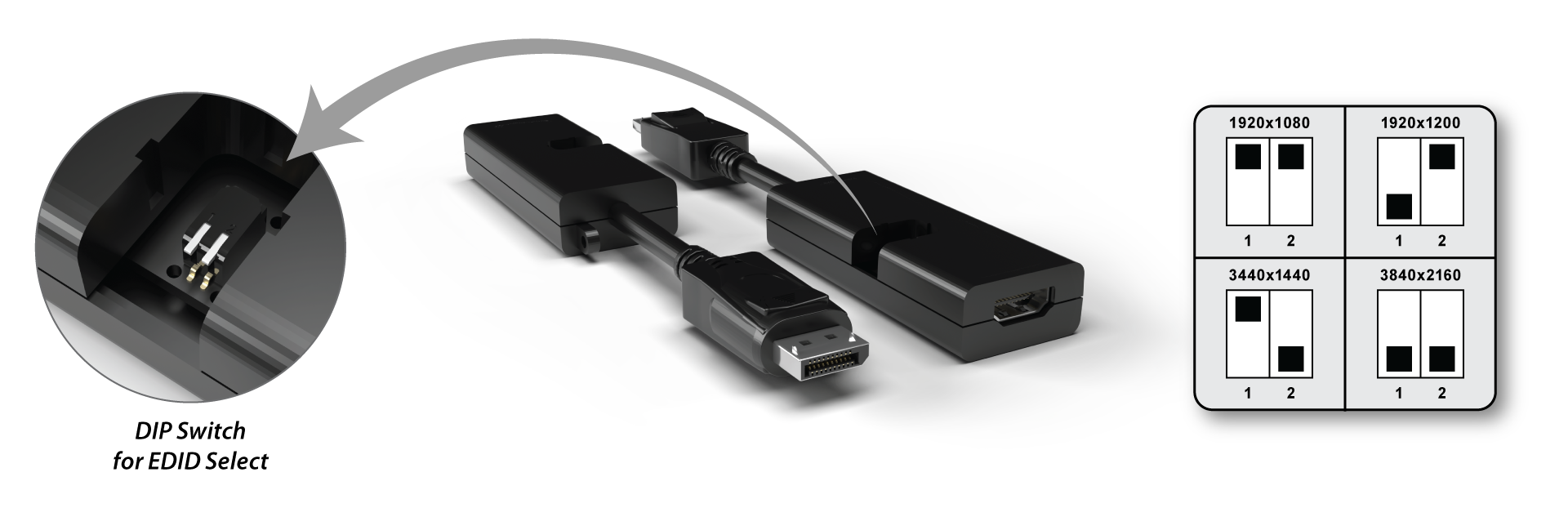

| Resolutions (Input & Output) | 1920X1080 @ 60Hz / 1920X1200 @ 60Hz / 3840X2160 @ 30Hz / 3440X1440 @ 30Hz (Selected by DIP Switch) |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Power | |
| Power Requirements | Powered by HDMI |
| General Info | |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FV11HH-MM HDMI-HDMI Secure Isolator is also known as the CPN26882.
