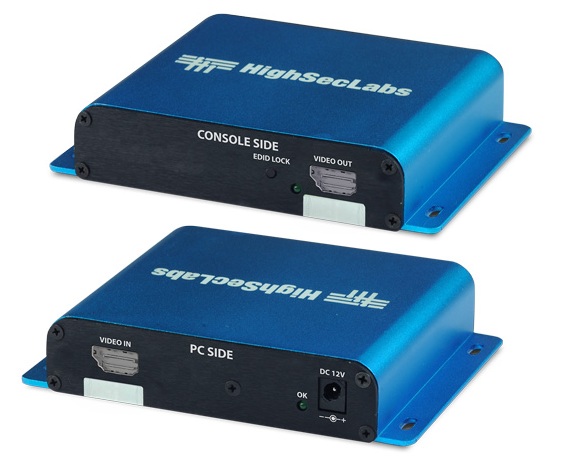

Secure DisplayPort/HDMI Video Isolator: 1-Port, PP4.0 Compliant
FV11PH-M
Save $139.00

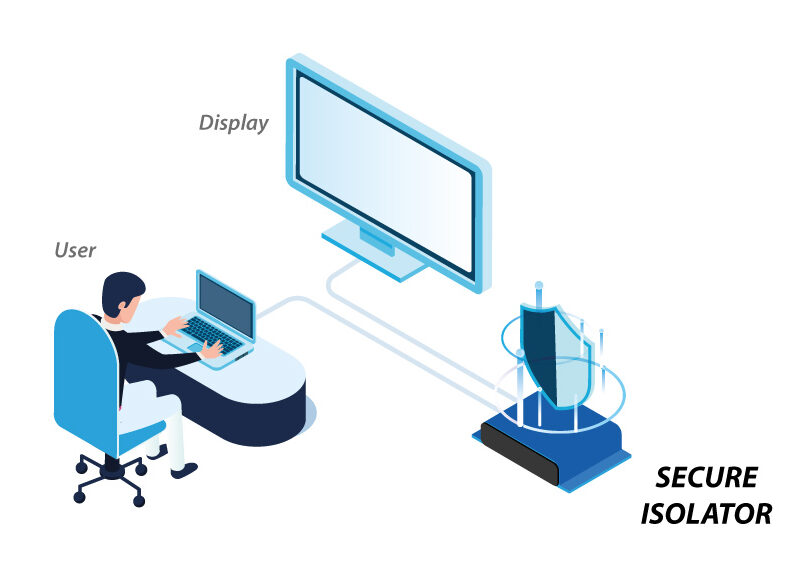

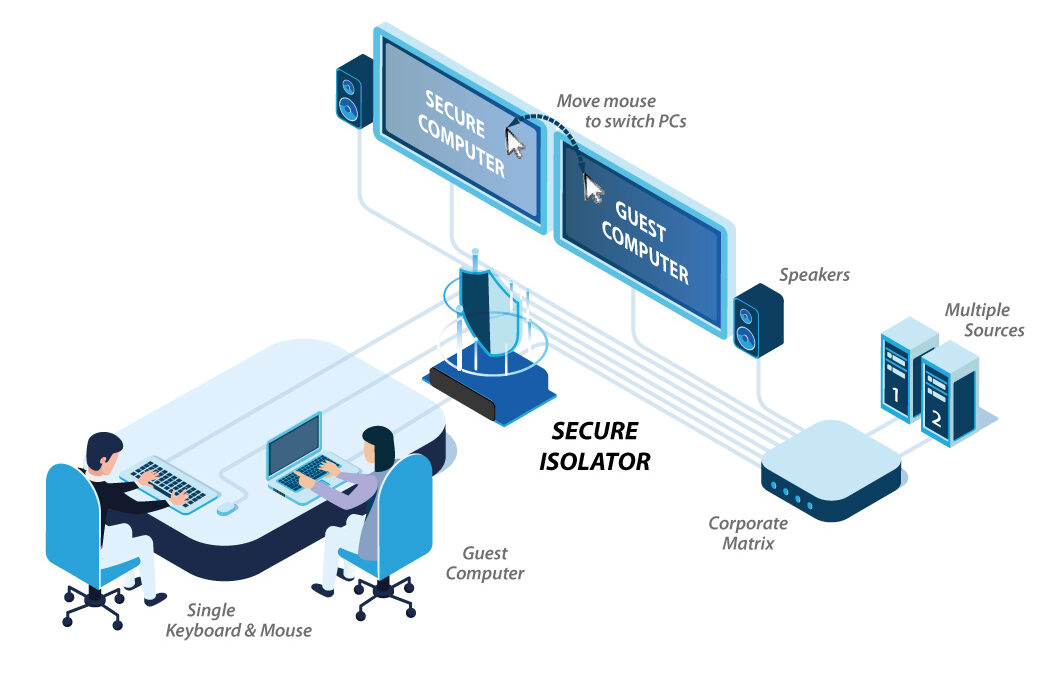

The FV11PH-M secure video isolator prevents vulnerable peripherals from mediating between compromised and secure computers by ensuring that video flows in a single direction. By preventing host-to-peripheral direct access the secure isolator eliminates data leakage. The FV11PH-M secure video isolator is designed to provide the highest possible computer & peripheral isolation as demanded by government agencies, military, financial institutions, and similar security-sensitive customers. The isolator perfectly suits scenarios where vulnerable peripherals or computers may impose a security threat. For example, in a secure meeting room, when an unsupervised (non-secure) guest laptop has to be connected to a projector which is shared with a classified computer. By isolating the classified computer from the projector the secure isolator protects the classified computer from being infected by the guest computer compromising any projector's vulnerability.
How does the High Sec Labs FV11PH-M Protect the EDID Channel
- EDID is read from the display only when the user presses the EDID capture button, typically during installation. This prevents continuous EDID transformation between the display and the source.
- EDID information is parsed to assure that only legitimate information is passed between the display and the source. The Isolator is used as a buffer to protect against transferring malicious code through the EDID channel.
- EDID information is limited to the basic essentials. Instead of passing the full EDID and MCCS, HSL's Isolators limit the EDID to the minimum required.
- The embedded digital audio via DisplayPort/HDMI is also protected due to unidirectional video transfer.
High Sec Labs FV11PH-M Features
- The ultimate solution for securing and presenting sources of different classification level on the same display.
- Supports isolation of large matrix switches and conference room equipment.
- Display Plug & Play (EDID) Leakage prevention through patented emulated technology. Signaling attacks prevented by design.
- Resolutions - Up to 4K-2K Ultra HD resolutions (3840 X 2160 pixels)
- Tamper Evident Label Special holographic tampering evident labels on the product's enclosure provide a clear visual indication if the product has been opened or compromised.
- All firmware is in ROM (Read Only Memory)
- Unidirectional optical data diodes - Assuring USB peripherals isolation.
- Data flows in one direction only. No reverse data flow possible by design.

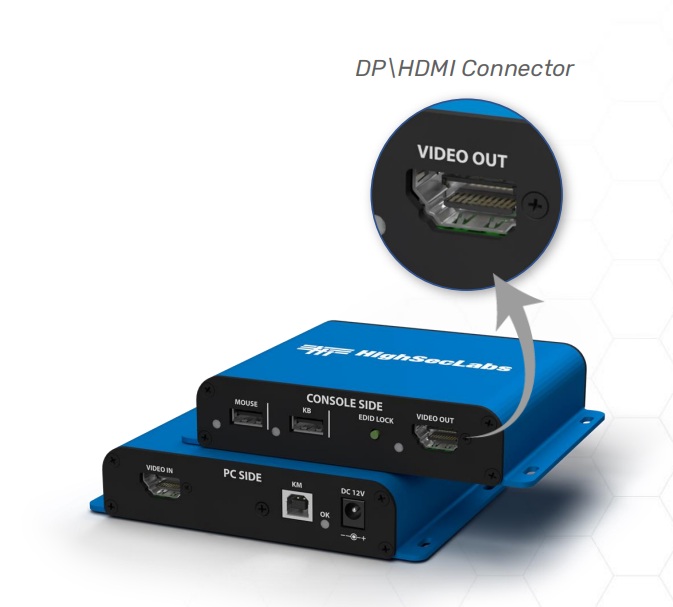

- New type of connector DP/HDMI combined connector allows connecting both type of cables - Display Port and HDMI
- Compliant with NIAP Common Criteria PP4.0 PSD Protection Profile. TEMPEST version available (FV11PH-MT). Call 1-877-586-6654 for details.
FV11PH-M Resources
Secure Video Isolator Datasheet (PDF)
Isolator Quick Start Guide (PDF)
High Sec Labs FV11PH-M Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28mm 5.8 x 4.2 x 1.1in |
| Weight | 0.3kg / .64lb |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Console Ports | |
| Displays | 1 x DP/HDMI |
| Max Resolution | 3840x2160 @ 30 Hz |
| Mouse and Keyboard | N/A |
| Computer Ports | |
| Display Type | 1 x DP/HDMI |
| Mouse and Keyboard | N/A |
| Max Resolution | UHD 4K up to 3840 x 2160 30Hz |
| Power | |
| Power Requirements | DC input 12V/1.5A Maximum |
| AC Input | Wall-mounted power supply included. Power input 90 to 240V AC |
| Power Type | External Power Supply |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Security Accreditation | Compliant with NIAP Common Criteria PP4.0 for peripheral sharing devices (PSD) |
| Product Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FV11PH-M Secure 1-Port DisplayPort/HDMI Video Isolator is also known as the CPN19441.
