IOGEAR MicroLink 6' PS2 KVM Cables



For upgrade or replacement options: Contact Us

The IOGEAR Micro-Lite G2L5002P is a 6ft. All-in-One bonded PS/2 KVM cable which is designed to deliver superb video quality and error-free transmission for your high-resolution applications. These KVM cables feature the latest in design and technologies such as Micro-Lite cable technology, an aluminum shield and an all-in-one bonded structure. They are designed to provide the maximum in quality, performance, and reliability. The thin, flexible cable and the over-sized thumbscrews also make installation quick and easy.

IOGEAR MiniLink KVM Cable Diagram

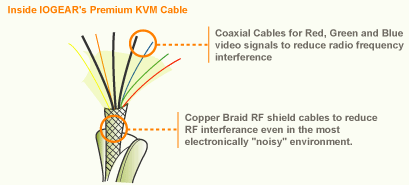

IOGEAR Micro-Lite KVM Cable Diagram

IOGEAR PS/2 KVM Cable Features:

  • Innovative Micro-Lite cable technology to minimize cross-talk and deliver superb video quality for your high resolution applications
  • Aluminum shield to eliminate EMI/RFI interference and ensure signal integrity and error-free transmission
  • Oversized ergonomic thumbscrews make installation quick and easy All-In-One bonded cable design eases connections, setups and cable management
  • Thin and flexible cable structure saves space and lowers carrying and storage cost
  • UL rated materials used to ensure safety, corrosion resistance, and longevity of the cable

IOGEAR G2L5002P Specifications:

Length 6 ft. (1.8 m.)
Weight 0.6 lb. (0.27 kg.)
CPU Connectors
Mouse 6 pin mini-DIN Male
Keyboard 6 pin mini-DIN Male
Monitor 15 pin HDB Male
KVM Side Connections
Keyboard 6 pin mini-DIN Male
Mouse 6 pin mini-DIN Male
Monitor 15 pin HDB Female
Requirements Computers with PS/2 and VGA connections.
UPC / EAN Barcode icon
UPC 672792500343
EAN 0672792500343
