IOGEAR USB KVM cable for IOGEAR KVM Switch, 3ft


FREE Shipping on orders over $100

The IOGEAR G2L5301U is a All-In-One bonded USB KVM cable which is designed to deliver superb video quality and error-free transmission for your high-resolution applications. The aluminum shield and an all-in-one bonded structure provide the maximum in quality, performance, and reliability. This KVM cable features a custom designed DB15 connector which combines keyboard, mouse, and video connections in one to save the space on the KVM and allows 16 ports on a mere 1U high space. The thin, flexible cable and the over-sized thumbscrews also make installation quick and easy.

This IOGEAR KVM cable is designed for the following IOGEAR KVM switches:

  • GCS1732
  • GCS1734
  • GCS1758

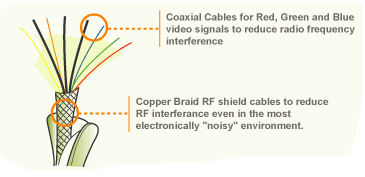

IOGEAR KVM Cable Diagram
IOGEAR KVM Cable Diagram

IOGEAR G2L5301U Features:

  • Innovative cable technology to minimize cross-talk and deliver superb video quality for your high resolution applications
  • Aluminum shield to eliminate EMI/RFI interference and ensure signal integrity and error-free transmission
  • Custom designed DB15 connector allows 16 ports on a 1U high space
  • Oversized ergonomic thumbscrews make installation quick and easy All-In-One bonded cable design eases connections, setups and cable management
  • Thin and flexible cable structure saves space and lowers carrying and storage cost UL rated materials used to ensure safety, corrosion resistance, and longevity of the cable

IOGEAR G2L5301U Specifications:

Length 4 ft. (1.21 m.)
Weight 0.5 lb. (0.225 kg.)
CPU Connectors
Keyboard & Mouse 1 x USB Type A
Monitor 1 x HDB15
Audio 1
Microphone 1
Console Connectors
Audio 1
Keyboard, Mouse, and Monitor 1 x HDB15
Microphone 1
UPC / EAN Barcode icon
UPC 881317002808
EAN 0881317002808
