IOGEAR MiniView 2-Port USB KVM Switch



Recommended replacement: IOGEAR MiniView Extreme GCS1732
Alternative options: Contact Us

The IOGEAR MiniView GCS102U 2-port USB KVMP Switch allows you to connect to a monitor, USB keyboard, USB mouse and two other USB devices - any USB devices. If you need to use more USB devices, connect a USB hub to increase the number of shared ports. With MiniView GCS102U, peripheral sharing has never been easier. Cables Included.

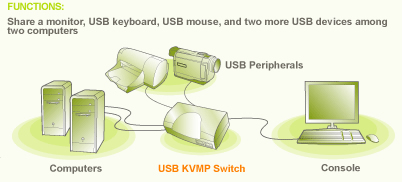

IOGEAR MiniView USB KVMP Function Diagram
IOGEAR MiniView USB KVMP Function Diagram

IOGEAR MiniView GCS102U Features and Benefits:

  • Share a monitor, USB keyboard, USB mouse, and two more USB devices among two computers (Add USB hubs to share up to up to 127 devices)
  • Bonded premium cables included
  • Works with Macs, PCs and other USB-compliant computers
  • USB 1.1 compliance ensures full compatibility with your USB devices
  • Operating system-independent operation - no software required
  • Connected computers can be added or removed from the setup without disturbing the other computers
  • Plug-n-Play monitor support
  • Supports video resolutions up to 1920 x 1440
  • External power adapter included
  • Built in AutoScan mode
  • Buffering technology prevents system failure
  • LED's allow for easy status monitoring
  • Increases desk space and productivity while decreasing power and equipment costs
  • Trim-line, compact design

IOGEAR MiniView KVM Switch Requirements:

  • PCs or Macs with at least one available USB port
  • A USB compliant operating system
  • A HDB15 video display adapter and monitor
  • USB mouse and keyboard

IOGEAR GCS102U Package Contents:

  • 1 MiniView USB KVM & peripheral switch
  • 2 Bonded USB-KVM cables
  • 1 Power adapter
  • 1 User manual
  • 1 Quick start guide
  • 1 Warranty registration card

IOGEAR MiniView GCS102U Specifications:

Height 1.8 in. (4.572 cm.)
Width 4.8 in. (12.192 cm.)
Depth 2.7 in. (6.85 cm.)
Weight 0.4 Lbs. (0.18 kg.)
Case Plastic / Metal
Consumption DC 5V
Amps 11mA (Max.)
Voltage DC 5V
CPU Connectors
Direct 2
Monitor 2 x HDB-15 Male (Std. VGA/SVGA)
Peripherals 2 x USB Type A
Keyboard & Mouse 2 x USB Type B
Console Connectors
Mouse 1 x USB Type A
Keyboard 1 x USB Type A
Monitor 1 x HDB-15 Female (Std. VGA/SVGA)
On Line 2
Selected 2
Mouse USB Plug-n-Play
Keyboard USB Plug-n-Play
Scan Interval 5 sec.
Video Resolution 1920 x 1440 (Max.); DDC2B
Port Selection Pushbutton
