IOGEAR MiniView Compact 2-Port w/Cables
GCS12
The IOGEAR MiniView GCS12 2-port Compact KVM Switch allows you to control 2 computers with a single keyboard, mouse, and monitor. Use one keyboard, one mouse and one monitor to control two PC or Macintosh systems.* The IOGEAR GCS12 self-powered KVM switch features mouse & keyboard emulation to ensure smooth operation, as well as support for Plug-n-Play monitors and most wheel mice. IOGEAR's patented Video Signal Enhancement (VSE) technology provides rich, 32-bit color at resolutions up to 1920 x 1440.
* Macintosh support requires IOGEAR's Mac Adapter.

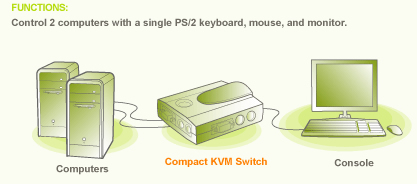

IOGEAR MiniView Compact KVM Switch Function Diagram
IOGEAR MiniView GCS12 Features and Benefits:
- Use one keyboard, monitor and mouse to control two computers
- Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+, and other special mice are supported
- Port selection through push button and Hotkeys
- PS/2 mouse emulation for error-free boot-up
- Connected PC's can be added or removed from the setup without powering off the KVM switch
- Plug-n-Play monitor support
- MiniView switches support video resolutions up to 1920 x 1440
- No software required
- Built in AutoScan mode
- Keyboard lock states are stored for each computer
- LEDs allow for easy status monitoring
- Macintosh keys are remapped on the PS/2 keyboard
- Built-in surge protection
IOGEAR MiniView GCS12 KVM Switch Package Contents:
- 1 MiniView 2-port KVM switch GCS12
- 2 Sets of premium bonded KVM cables
- 1 Installation manual
- 1 Quick start guide
- 1 Product registration card
IOGEAR GCS12 Specifications:
| Mechanical | |
| Height | 1.25 in. (3.175 cm.) |
| Width | 3.5 in. (8.89 cm.) |
| Depth | 8 in. (20.32 cm.) |
| Weight | 0.35 Lbs. (0.1575 kg.) |
| Housing | |
| Case | Plastic |
| Power | |
| Consumption | DC 5V 20mA (Max.) |
| Amps | 20mA (Max.) |
| Voltage | DC 5V |
| CPU Connectors | |
| Keyboard | 2x6 pin mini-DIN Female (PS/2) |
| Monitor | 2xHDB15 Male (Std. VGA/SVGA) |
| Mouse | 2x6 pin mini-DIN Female (PS/2) |
| Console Connectors | |
| Mouse | 1x6 pin mini-DIN Female (PS/2) |
| Keyboard | 1x6 pin mini-DIN Female (PS/2) |
| Monitor | 1xHDB15 Female (Std. VGA/SVGA) |
| Computer Connections | |
| Direct | 2 |
| LEDs | |
| Selected | 2 |
| Emulation | |
| Mouse | PS/2 |
| Keyboard | PS/2, AT |
| Video Resolution | 1920x1440; DDC2B |
| Scan Interval | 5 seconds |
| Port Selection | Push Buttons or Hot Keys |
| System Requirements | Computers with PS/2 mouse connections, PS/2 or AT keyboard connections, and HDDB15 VGA connection. |
