IOGEAR MiniView II 4-Port USB KVM Switch



Recommended replacement: IOGEAR GCS1804
Alternative options: Contact Us

The IOGEAR MiniView II GCS124U is a 4 Port USB KVM switch which features USB enabled hot key and on screen display.  The MiniView GCS124U will allow you to control up to 4 computers with 1 USB keyboard, monitor, and USB mouse. With IOGEAR's USB Sniffing Technology you can use your favorite USB keyboard to control all aspect of the USB KVM. The GCS124U KVM features keyboard and mouse emulation so your computer never loses touch with its peripherals. This KVM switch is also daisy chainable which will allow you to control up to 64 computers from one USB keyboard, monitor, and mouse. The OSD allows you to name each computer and set security access for each. Since IOGEAR is a total solutions provider, we have included four sets of premium bonded KVM cables.

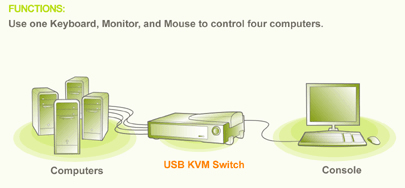

IOGEAR MiniView USB KVM Switch Function Diagram
IOGEAR MiniView USB KVM Switch Function Diagram

IOGEAR MiniView GCS124U Features and Benefits:

  • Includes four complete sets of Premium 2-in-1 bonded KVM cables
  • Features the first ever USB Sniffing Technology
  • Hot Swappable - Plug-N-Play
  • Keyboard and Mouse Wakeup Function
  • USB Hot Key Selection
  • OSD (On Screen Display) with security control
  • Keyboard and Mouse emulation
  • Daisy Chainable (control up to 64 computers)
  • USB 1.1 Compliant
  • Directly select computers from switch
  • Rack Mountable (requires optional kit)

IOGEAR GCS124U Package Contents:

  • 4 Port USB KVM Switch GCS124U (Hotkeys/OSD)
  • User Manual
  • Registration Card
  • 4 Premium Bonded USB KVM cables (2-4' & 2-6')
  • Power Adapter
  • Quick Start Guide

IOGEAR MiniView GCS124U Specifications:

Height 2 in. (5.08 cm.)
Width 8.8 in. (22.35 cm.)
Depth 6 in. (15.24 cm.)
Case Plastic / Metal
Consumption DC 9V 600mA
Amps 600mA
Voltage DC 9V
CPU Connectors
Monitor 4 x HDB-15 Male (Std. VGA/SVGA)
Keyboard & Mouse 4 x USB Type B
Console Connectors
Mouse 1 x USB Type A
Keyboard 1 x USB Type A
Monitor 1 x HDB-15 Female (Std. VGA/SVGA)
Computer Connections
Direct 4
Daisy Chain or Cascading 64
On Line 4
Selected 4
Mouse USB Plug-n-Play
Keyboard USB Plug-n-Play
Video Resolution Max: 1920 x 1440, DDC2B
Scan Interval 5 sec.
Port Selection Push Button, Hot Keys, or OSD
