4-Port Dual Monitor VGA KVMP Switch

GCS1744

$299.95$245.00
Save $54.95

Discontinued
For upgrade or replacement options: Contact Us

Description

The Dual View GCS1744 USB KVMP Switch brings dual head video functionality to IOGEAR's USB KVM switch technology. Now four dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In addition, the GCS1744 allows the computers to share USB peripherals connected to the USB peripheral ports, such as printers, scanners, portable hard drives, etc.
Recognizing the importance of sound, this switch is also audio enabled. A single microphone can provide audio input to each of the computers, and you can enjoy the audio output of each computer on a single set of speakers.

Features

  • One dual monitor console controls four dual monitor computers
  • Additional VGA display channel provided for dual display of each computer
  • Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners, and portable hard drives, etc.
  • Audio jacks provided for speaker and microphone sharing
  • Independent switching of KVM, USB, and audio
  • Easy to install - no software required - connecting cables is all it takes
  • Easy to operate - computer selection via push button switches or hotkeys
  • Auto Scan function to monitor computer operation
  • Hotkey selection for OS and keyboard language
  • LED display for easy status monitoring
  • Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching
  • Hot pluggable - add or remove computers for easy maintenance
  • Firmware upgradable
  • Keyboard and mouse emulation for error free booting
  • Supports multimedia USB keyboards
  • Supports Mac & Sun keyboards
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Efficient, ergonomic design - logical connector layout

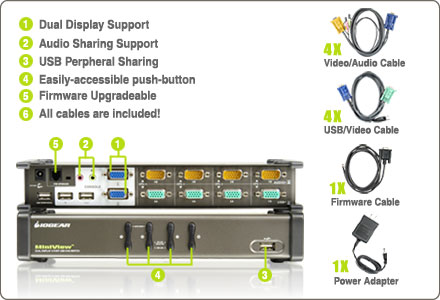

Component Diagram

Iogear GCS1744 Component Diagram

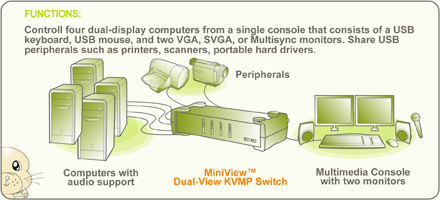

Function Diagram

Iogear GCS1744 Function Diagram

Requirements:

  • CONSOLE
  • 2 x VGA Monitors
  • 1 x USB style mouse
  • 1 x USB style keyboard
  • COMPUTER
  • 2 x VGA, SVGA, or Multisync port
  • 1 x Type A USB port
  • Operating Systems:
  • Windows 98, 98SE, ME, 2000, XP
  • Mac OS 8.6 or greater
  • Sun Solaris work station
  • Linux, UNIX and other USB supported systems*
    *Additional drivers and support may be needed
  • Audio: Requires 2-piece powered speaker system

Package Content:

  • 1 x GCS1744 USB KVM Switch
  • 1 x Power adapter
  • 4 x Custom audio/video cables (6 ft long)
  • 4 x Custom USB/video cables (6 ft long)
  • 1 x Firmware upgrade cable
  • 1 x User Manual
  • 1 x Quick Start Guide

Specifications:

GCS1744

Scan Interval

1-99 secs

Operating Temperature

0-50 C

Port Selection

Push button, Hotkey

Storage Temperature

-20-60 C

Video Resolution

Up to 2048 x 1536, DDC2B

Power Consumption

DC5V, 1.25W

Humidity

0 - 80% RH, NC

Power Adaptor

1 x DC5V Jack

CPU Connectors



Monitor

USB/Video1: 4 x SPHD-15 Female, Audio/Video2: 4 x SPHD-15 Male

Peripherals

2 x USB Type A female

Weight



Package Wt.

6.7 Lb

Case Wt.

21.6 Lb

Housing



Case

Metal

Console Connectors



Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

Monitor

2 X HDB15 Female

Audio

1 x Earphone Jack Female, 1 x Microphone Jack Female

Flash ROM Upgrade

1 x RJ11 Socket

LEDs



Link

4 x Green

On Line

4 x Orange

Emulation



Keyboard

USB

Mouse

USB

Computer Connections



Direct

4

Package Dimensions



Width

6.5 in

Length

13 in

Depth

4 in

Case



Length

13.5 in

Height

13 in

Case Qty.

3

Width

9 in

UPC / EAN Barcode icon
UPC 881317003645
EAN 0881317003645
Question: Will this system work with Windows 7? (not listed...)
Answer: The short answer is yes, this hardware based KVM should work with Windows 7. However, there have been reports that some KVM switches do not pass the console display's EDID and DDC information correctly to all attached systems leading to display issues. This seems to arise mostly when mixing XP and Windows 7 systems.

Also remember that like any hardware based KVM, certain functions of multimedia keyboards and multibutton mice may or may not be supported.

Question: is audio played simultaneously from all 4 computers or only the selected device?
Answer: The IOGEAR GCS1744 dual video KVM provides audio from the selected computer only. The audio source can be selected independently of the KVM, so audio can come from one computer while the KVM focus can be on another source.

Question: does IOGear or someone do repair work on the 4-Port Dual Monitor VGA KVMP Switch? I have a blown power supply.
Answer: Thank you for your inquiry,

Sorry to hear that! They do indeed; The IOGEAR GCS1744 includes a 3 Year manufacturer warranty for any defects and workmanship.

You can contact IOGEAR support at support@iogear.com, via telephone at 866-9-IOGEAR (866-946-4327).

Question: Is the firmware upgrade cable for the IOgear GCS1744 available for purchase?
Answer: Thank you for your inquiry. We reached out to IOGear to inquire about purchasing the upgrade cable.

Unfortunately, they do not sell the upgrade cable separately. Additionally, they responded that earlier serial numbers for this model are not firmware upgrade-able. However, they added that if the KVM was capable of being upgraded, they would send out a cable directly.

Please reach out to the IOGear support team directly and they should be able to assist you further. When you contact them, please be sure to include the serial number of the switch to determine if the unit's firmware is able to be updated.

Contact information can be found here: https://www.iogear.com/corp/contactus
