Iogear 2-Port DVI KVMP Switch



Recommended replacement: Iogear GCS1102
Alternative options: Contact Us


The IOGEAR DVI KVMP Switch GCS1762 switch charts a revolutionary new direction in KVM switch functionality by combining a 2-port USB KVM switch with USB peripheral sharing capability at the same time as it provides an interface for a digital monitor (DVI).
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor, and any peripherals such as printers and scanners.
The GCS1762's independent (asynchronous) switching feature, allows the KVM focus to be on one computer while the USB peripheral focus is on another. This eliminates the need to purchase a separate USB hub as well as the need to purchase separate stand-alone peripheral sharers - such as printer servers, modem splitters, etc.
The GCS1762 further improves on previous designs with DVI (Digital Video Interface) connectors, and the transfer of keyboard and mouse data to the computers via a fast, reliable USB connection. DVI supports both digital input (flat panel displays, data projectors, plasma displays, digital TVs and set-top boxes) and analog video input (traditional monitors and TVs).

GCS1762 Features:

  • Dual function KVMP-USB switch

  • One console controls 2 computers

  • Independent (asynchronous) switching of KVM and peripheral USB/Audio ports

  • Fully compliant with the USB 1.1 specification - supports transfer rates of up to 12 Mbps

  • DVI digital and analog monitor support - fully compliant with the DVI specifications

  • Computer selection via front panel switches and hotkeys

  • LED display for easy status monitoring

  • Auto Scan Mode for monitoring all computers

  • Complete keyboard emulation for error free booting

  • Superior Video quality - 1600 x 1200; DDC2B

  • Easy installation

  • Hot pluggable - add or remove computers for maintenance without powering down the switch

  • Supports Windows and Mac host systems

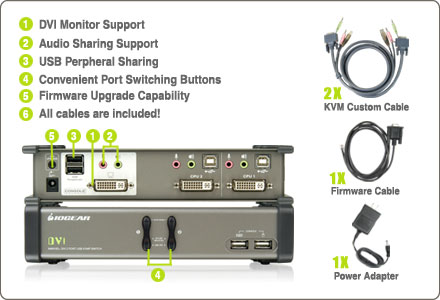

Component Diagram

Iogear GCS1762 Component Diagram

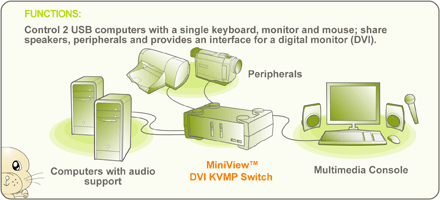

Function Diagram

Iogear GCS1762 Function Diagram

GCS1762 Requirements:

  • Console:

  • A DVI Monitor

  • A USB style mouse

  • A USB style keyboard

  • Microphone and speakers (optional)

  • Computer:

  • A DVI port (The quality of the display is affected by the quality of the DVI display card. For best results, we recommend you purchase a high quality product).

  • Type A USB port

  • Audio ports (optional)

  • Windows 98, 98SE, ME, 2000, XP

  • Mac OS 8.6 or greater

  • Linux, UNIX and other USB supported systems*
    *Additional drivers and support may be needed

  • Audio

  • Requires 2-piece powered speaker system

  • Cables:

  • Only IOGEAR Custom cable sets specifically designed to work with this switch may be used to link to the computers. Two cable sets are provided with this package.

GCS1762 Package Content:

  • 1 x GCS1762 KVMP switch

  • 2 x 6' custom cables

  • 1 x Firmware upgrade cable

  • 1 x Power Adapter

  • 1 x User Manual

  • 1 x Quick Start Guide

Function GCS1762
Operating Temperature 0 - 50 C
Port Selection Front Panel Switches; Hotkey
Storage Temperature -20 - 60 C
Scan Interval 1-99 secs (default: 5 secs)
Video Resolution Up to 1600 x 1200; DDC2B
Humidity 0-80% RH
Power Adaptor 1 x DC 5V Jack
CPU Connectors
Microphone 2 x Microphone jack
Monitor 2 x DVI-I ports (female)
Audio 2 x Stereo earphone jack
Keyboard & Mouse 2 x USB Type B sockets
Depth 7.87 in. (19.99 cm.)
Height 1.65 in. (4.19 cm.)
Width 2.93 in. (7.44 cm.)
Case Wt. 15 Lb
Package Wt. 4.6 Lb
Unit Wt. 1.76 Lbs.
Case Metal
Console Connectors
Keyboard 1 x USB Type A socket
Microphone 1 x Microphone jack
Monitor 1 x DVI-I (female) port
Audio 1 x Stereo earphone jack
Mouse 1 x USB Type A socket
On Line 2 x Orange
USB Peripherals 2 x Green
Selected 2 x Orange
Keyboard USB
Mouse USB
Computer Connections
Direct 2
Package Dimensions
Width 9
Depth 3.75
Length 10.5
Width 9.5
Height 11.5
Length 12.5
Case Qty. 3
