IOGEAR 2-Port USB KVM Switch using PS/2 KB & Mouse



Recommended replacement: Belkin F1DG102P
Alternative options: Contact Us

IOGEAR GCS52U Description

Miniview Micro 2-port USB KVM w/built-in Cables GCS52U - Miniview Micro 2-port USB KVM w/built-in Cables (6')

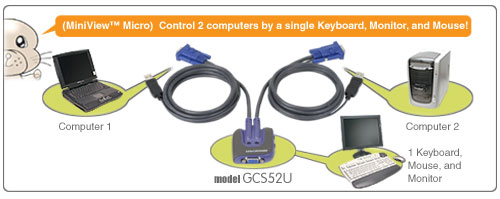

Introducing the two port MiniViewª Micro USB KVM Switch GCS52U from IOGEAR - a simple solution for those with more PCs than hands. Use one keyboard, one monitor and one mouse to control two PC or Macintosh systems. This self-powered KVM switch features mouse & keyboard emulation to ensure smooth operation, as well as support for Plug-n-Play monitors and most wheel mice. Our patented VSE Video Signal Enhancementš technology provides rich, 32-bit color at resolutions up to 1920 x 1440. With KVM cables (6' long) molded into the unit, all you need to do is to plug it into your computers, and you've got a complete KVM solution from IOGEAR.

IOGEAR GCS52U Function


IOGEAR GCS52U Features/Benefits
  • The smallest 2-port KVM switch available
  • Use one keyboard, monitor and mouse to control two USB computers
  • 6' long molded-in cables to simplify setup
  • Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+, and other special mice are supported
  • Port selection through convenient Hot Keys
  • Keyboard and mouse emulation for error-free boot-up
  • Save space and reduce desktop clutter
  • Plug-n-Play monitor support
  • Support video resolutions up to 1920 x 1440
  • No software required
  • Built in AutoScan mode
  • LEDs allow for easy status monitoring
  • 3 Year Limited Warranty
Supports all USB-equipped PC and Mac desktops and notebooks All necessary cables are already built-in; high-quality 6' length for maximum convenience Plug-n-play, no drivers required
IOGEAR GCS52U Requirements
  • Computers with USB mouse connections, USB keyboard connections, and HDDB15 VGA connection.
IOGEAR GCS52U Package Contents
  • 1 Miniview Micro 2-port USB KVM GCS52U
  • 1 User manual
  • 1 Quick start guide
  • 1 Warranty registration card
IOGEAR GCS52U Specifications

Function GCS52U
Cable Length 6
Case Qty. 12
Height 11
Length 18
Width 13.75
Computer Connections
Direct 2
Console Connectors
Keyboard PS/2
Monitor 1xHDB15 Female (Std. VGA/SVGA)
Mouse PS/2
CPU Connectors
Keyboard & Mouse 2 x USB Type A
Monitor 2xHDB15 Male (Std. VGA/SVGA)
Depth 0.875"
Height 2.25"
Length Two 6
Width 2.5"
Case Plastic
Selected 2
Port Selection Hot Keys
Scan Interval 5 seconds
Video Resolution 1920x1440; DDC, DDC2, DDC2B
Case Wt. 17.75
Package Wt. 1.2
Unit Wt. 1.1
