IOGEAR ADC 2-Port KVM Switch

GCS602

$199.95

Discontinued
For upgrade or replacement options: Contact Us

IOGEAR GCS602 Product Description


MiniView 2-port ADC KVM Switch GCS602 - MiniView 2-port ADC KVM Switch


Introducing the two port MiniView™ ADC KVM switch from IOGEAR GCS602 - use one keyboard, one mouse and one ADC display to control two ADC Macintosh systems. This self-powered KVM switch supports most displays with ADC interface (such as 15-inch Apple Studio Display, 17-inch Apple Studio Display, and 22-inch Apple Cinema Display, etc.), and provides superior video quality of up to 1600x1024, DDC, DDC2, DDC2B. Other features include LED displays for easy status monitoring, easy computer selection via a push button. It is easy to install, no software required, plug in the cables is all it takes.



IOGEAR GCS602 Function

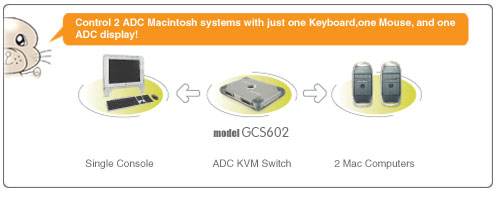

IOGEAR MiniView ADC KVM Switch GCS602


IOGEAR GCS602 Features/Benefits

  • 1 ADC console controls 2 ADC computers
  • Supports most displays with an ADC interface (such as 15-inch Apple Studio Display, 17-inch Apple Studio Display, and 22-inch Apple Cinema Display, etc.)
  • Easy to install - no software required - connecting cables to the computers is all it takes
  • Easy to operate - computer selection via push button on KVM switch
  • LED displays for easy status monitoring
  • Superior video quality - up to 1600x1024 (22-inch Apple Cinema Display); DDC, DDC2, DDC2B
IOGEAR MiniView GCS602 IOGEAR GCS602 MiniView GCS602
1 ADC console controls 2 ADC computers Video quality up to 1600x1024; DDC, DDC2, DDC2B Select via push button on KVM switch
IOGEAR GCS602 Requirements

  • Computers with ADC connections
  • Computers with DVI connections (additional DVI to ADC adapter needed)
IOGEAR GCS602 Package Contents

  • 1 Miniview 2-port ADC KVM switch GCS602
  • 2 ADC KVM cables
  • 1 User manual
  • 1 Warranty registration card
IOGEAR GCS602 Specifications


Function GCS602
Case
Case Qty. 6
Height 13"
Length 18.5"
Width 11.5"
Computer Connections
Direct 2
Console Connectors
Keyboard, Mouse, and Monitor 1 _ ADC-35 (F)
CPU Connectors
Keyboard, Mouse, and Video 2 _ ADC-35 (M)
Dimensions
Depth 4" (105 mm)
Height 1" (25 mm)
Length 5.75" (145 mm)
Housing
Case Plastic
Humidity 0 ~ 80% RH, NC
LEDs
On Line 2 _ Orange
Selected 2 _ Green
Operating Temperature 0∘〜 50∘C
Package Dimensions
Height 4
Length 10.5
Width 8.75
Port Selection Push Button
Storage Temperature -20∘〜 60∘C
Video Resolution 1600 _ 1024, DDC, DDC2, DDC2B
Weight
Unit Wt. 0.45 Lbs
