IOGEAR MiniView Micro USB Audio KVM Switch

GCS712U

$59.95

Discontinued
Recommended replacement: Belkin F1DG102P
Alternative options: Contact Us

Introducing the IOGEAR 2-port MiniView Micro USB Audio KVM switch– the simplest way to manage two PCs or Macs from a single PS/2 keyboard, monitor and PS/2 mouse and share the multimedia speakers among them. This self-powered KVM switch features mouse and keyboard emulation to ensure smooth operation, as well as support for Plug-n-Play monitors and most wheel mice. Our patented VSE Video Signal Enhancement® technology provides rich, 32-bit color at resolutions up to 2048 x 1536. With KVM cables (6’ long) molded into the unit, all you need to do is to plug it into your computers, and you’ve got a complete KVM solution from IOGEAR.

Features

  • The smallest 2-port KVM switch available with audio support
  • Use one keyboard, monitor and mouse to control two computers
  • Share multimedia speakers among two computers
  • 6’ long molded-in cables to simplify setup
  • Support for Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+, and most PS/2 mice
  • Port selection through convenient Hot Keys
  • PS/2 mouse emulation for error-free boot-up
  • Saves space and reduces desktop clutter
  • Plug-n-Play monitor support
  • Supports video resolutions up to 2048 x 1536
  • No software required
  • Built in AutoScan mode
  • LEDs allow for easy status monitoring
  • 3 Year Limited Warranty

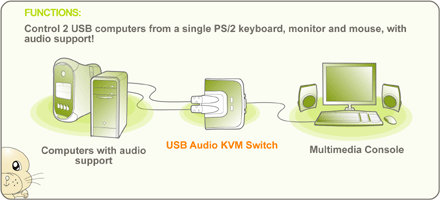

Function Diagram

Requirements

  • Computers with USB connections, and HDDB15 VGA connection
  • PS/2 Keyboard and mouse
  • To share audio, a multimedia sound card is required. Only support 2-piece, powered speakers systems

Package Content

  • 1 2-port MiniView Audio Micro KVM
  • 1 User manual
  • 1 Quick start guide
  • 1 Warranty registration card

Specifications

Function
IOGEAR GCS712U
Scan Interval 5 Seconds
Port Selection Hot Keys
Storage Temperature -20 - 60° C
Operating Temperature 0-50° C
Video Resolution 2048 x 1536; DDC2B
Humity 0-80% RH Non-condensing
CPU Connectors

Audio 2 x Earphone Plug (speaker)
Monitor 2 x 6 HDB-15 male (blue)
Keyboard & Mouse 2 x USB Type A
Dimensions
Width 4.9 cm (1.93 in)
Height 2.5 cm (0.98 in)
Length 12 cm (4.72 in)
Weight
Case Wt. 16.5 lb (7.43 kg)
Package Wt. 1.15 lb (0.52 kg)
Unit Wt. 0.9 lb (0.41 kg)
Housing
Case Plastic
Console Connectors
Keyboard 1 x 6 pin mini-DIN female (purple)
Audio 1x Earphone Jack (speaker)
Mouse 1 x 6 pin mini-DIN female (green)
Monitor 1 x HDB-15 female (blue)
LEDs
Selected 4
Computer Connections
Direct 2
Package Dimension
Width 6 in (15.24 cm)
Height 9.6 in (24.38 cm)
Length 2.75 in (6.99 cm)
Case
Width 13 in (33.02 cm)
Length 17.5 in (44.45 cm)
Height 11 in (27.94 cm)
Case Qty 12
