IOGEAR Hybrid VGA KVM with Cables and Audio

GCS742UW6

$49.95

Discontinued
Recommended replacement:
Alternative options: Contact Us

The IOGEAR GCS742UW6 is a Hybrid VGA KVM with cables and audio which addresses the problem of connecting a USB mouse and PS/2 keyboard to a KVM.

In addition to the hybrid connections you can also share your desktop speakers and microphone between both computers, plus have the ability to switch them independently from KVM functions.

The KVM has a selectable rate Auto scan mode that allow hands-off monitoring of your computers which is perfect for the times when you have processes running on both computers, and just want to monitor their progress. The one touch switch is small enough to be placed in a handy, out-of-the-way place.

IOGEAR GCS742UW6 Features:

  • Hybrid connections for USB mouse and PS/2 keyboard
  • Hot key or manual switching
  • Independent Audio switching (hot key only)
  • Asymmetric cable lengths
  • Video resolution up to 2048 x 1536, DDC2B
  • 3-year Limited Warranty

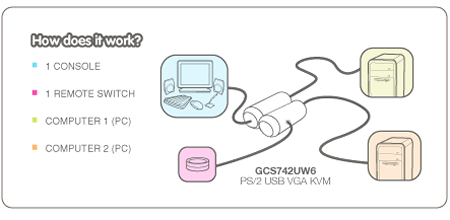

IOGEAR GCS742UW6 Application Diagram
IOGEAR GCS742UW6 Application Diagram

Requirements:

  • Console
    • PS/2 keyboard
    • USB mouse
    • Powered desktop speakers and microphone (for audio functions)
  • Computers
    • PS/2 keyboard port
    • USB type A port
    • VGA / SVGG Video card Operation System
  • Windows
    • Win98SE/ME/2000/XP/Vista
  • Linux
    • RedHat 7.1 and above
    • Fedora Core 2 and above
    • SUSE 9.0 and above
    • Mandriva (Mandrake) 9 and above
  • Unix
    • FreeBSD 4.2, 4.5
  • Novell
    • Netware 6.0 and above

Package Includes:

  • 1 x GCS742UW6 Hybrid VGA KVM
  • 1 x Remote switch
  • 1 x User Guide
  • 1 x Registration card

IOGEAR GCS742UW6 Specifications:

Mechanical
Height 10.4 in. (26.5 cm.)
Width   7.6 in. (19.3 cm.)
Depth 2.8 in. (7.2 cm.)
Weight 1.4 lbs. (0.6 kg.)
CPU Connectors
Mouse 2 x USB 2.0 Type A Male (Black)
Keyboard 2 x 6-pin Mini-DIN Male (Purple)
Monitor HDB-15 Female (Blue)
Microphone  2 x Mini Stereo Plug Male (Pink)
Audio 2.0 Stereo
Console Connectors
Mouse USB 2.0 Type A Female (Black)
Keyboard 1 x 6-pin Mini-DIN Female (Purple) [PS/2]
Monitor HDB-15 Female (Blue)
Microphone Mini Stereo Jack Female (Pink)
Audio 2 x Mini Stereo Jack Female Green
Scan Interval 3, 5, 10, 20 Seconds
Cable Connections
Input 6in (0.15m)
Output 2 ft (0.6m) and 4ft (1.2m)
Shared Functions Audio / Microphone
Connectors
Video Input VGA
USB USB-2
Video Output  VGA
