IOGEAR 8 Port VGA KVM Switch PS/2, 1u Kit w/ cables



For upgrade or replacement options: Contact Us

The IOGEAR GCS78KIT is a 8-port PS/2 KVM that is just the tool you need to help reduce the need for redundant hardware. Now you can control up to eight computers with a single keyboard, monitor and mouse. This 8-port KVM switch comes with built-in AutoScan mode that lets you conveniently monitor every attached computer for a specified amount of time, while our Hot Key technology allows you to switch ports easily using the keyboard. With its 1U, 19" inch rack-mountable casing and status-monitoring LEDs, the IOGEAR 8-port PS/2 is the perfect switch for your home, small business or any other multi-computer environment. This kit includes four 6 ft KVM cables and four 10ft KVM cables.

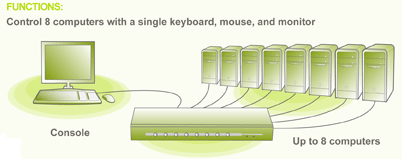

IOGEAR 8 Port KVM Switch Kit Application Diagram
IOGEAR 8 Port KVM Switch Kit Application Diagram


  • Use one keyboard, monitor and mouse to control 8 computers
  • Includes four 6 ft KVM cables and four 10ft KVM cables
  • Connected computers can be added or removed from the setup without disturbing the other computers
  • Plug-n-Play monitor support; high-resolution video support (up to 1920 x 1440)
  • Easy to install - no software required
  • Easy to operate use push button at the front and hot keys to switch port
  • Built in AutoScan mode
  • LEDs allow for easy status monitoring


Computers with PS/2 connections, and HDDB15 VGA connection

Package Includes:

  • 1 x 8-Port MiniView PS/2 KVM switch
  • 1 x Power adapter
  • 1 x Rack mount kit
  • 1 x Quick start guide
  • 1 x Warranty/Registration card
  • 4 x KVM Cables (6', PS/2) (IOGEAR Part Number G2L5002P)
  • 4 x KVM cables (10', PS/2) (IOGEAR Part Number G2L5003P)

IOGEAR GCS78KIT Specifications:

Height 1.75 in. (4.45 cm.)
Width 17 in. (43.18 cm.)
Depth 6 in. (15.24 cm.)
Weight 7.8 lbs. (3.51 kg.)
CPU Connectors
Mouse 8x6 pin mini-DIN Female (PS/2)
Keyboard 8x6 pin mini-DIN Female (PS/2)
Monitor 8xHDDB15 Male
Console Connectors
Mouse 1x6 pin mini-DIN Female (PS/2)
Keyboard 1x6 pin mini-DIN Female (PS/2)
Monitor 1xHDDB15 Female
Port Selection Push Buttons, Hot Keys
Case Metal
Voltage DC 9V
Amps 400 mA(Max)
Computer Connections
Direct 8
Power On 1
Selected 8
On Line 8
Power Consumption 1.08W max
Video Resolution 1920x1440; DDC2B
Scan Interval 5 seconds
Keyboard PS/2
Mouse PS/2
UPC / EAN Barcode icon
UPC 881317004482
EAN 0881317004482
