IOGEAR MiniView SE 4-Port w/Cables

GCS84A

$199.95

Discontinued
Replaced by: IOGEAR GCS1804
Alternative options: Contact Us

MiniView SE GCS84A KVM Switch - MiniView SE 4 Port Desktop KVM Switch, PS/2

A faster Way To Connect! Once again, IOGEAR raised the bar on quality KVMs. These desktop PS/2 KVMs feature the latest in micro-design and technology. Setup is fast and easy; simply plug cables into their appropriate ports. The 2 PS/2 console ports are on the front of the unit for easy and convenient access. IOGEAR's MiniView™ SE GCS82A provides two convenient methods to access the connected computers: use push-button selection switches, located on the unit's front panel; or type Hot Key combinations from the keyboard. There is no better way to save time and money than with IOGEAR's MiniView™ SE GCS82A.

Cables Included!

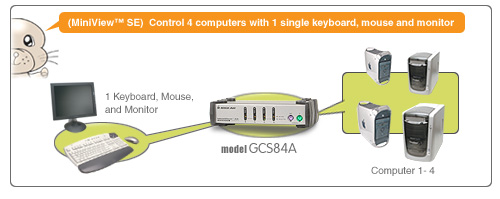

IOGEAR GCS84A Diagram and Application

IOGEAR MiniView 4-Port KVM Switch GCS84A

IOGEAR GCS84A Features and Benefits

  • Use one keyboard, monitor and mouse to control up to four PCs
  • Works with PS/2 compliant computers
  • Operating System independent
  • Plug-n-Play monitor support
  • MiniView™ switches support video resolutions up to 2048 x 1536
  • Self or Bus-powered
  • No software required
  • Built in AutoScan mode
  • LED's allow for easy status monitoring
  • Increases desk space and productivity
  • Decreasing power and equipment costs
  • Trim-line, compact design
  • 3 Year Limited Warranty
IOGEAR MiniView GCS84A IOGEAR GCS84A MiniView GCS84A
PS/2 console placed in front for easy access No DIP switches, software or power supply needed VSE: Patented Video Signal Enhancement technology supports ultra high resolution up to 2048 x 1536

IOGEAR GCS84A Requirements

  • PS/2 Enabled/Compliant Computer System

IOGEAR GCS84A Package Contents

  • 1 MiniView SE 4-Port KVM switch GCS84A
  • 4 sets of premium bonded KVM cables
  • 1 installation manual
  • 1 quick start guide
  • 1 product registration card

IOGEAR GCS84A Specifications

Function GCS84A
Computer Connections
Daisy Chain or Cascading 64
Direct 4
Console Connectors
Keyboard 1 x 6 pin mini-DIN Female (PS/2)
Monitor 1 HDB-15 Female (Std. VGA/SVGA)-
Mouse 1 x 6 pin mini-DIN Female (PS/2)
CPU Connectors
Keyboard 4 x 6 pin mini-DIN Female (PS/2)
Monitor 4 HDB-15 Male (Std. VGA/SVGA)
Mouse 4 x 6 pin mini-DIN Female (PS/2)
Dimensions
Height 1.7
Length 3
Width 8
Emulation
Keyboard PS/2; AT
Mouse PS/2
Housing
Case Metal
LEDs
On Line 4
Selected 4
Port Selection Pushbutton Switch / Hot Keys
Power
Amps 40mA (Max.)
Voltage DC 9V
Power Consumption DC 9V 360 mW (Max.)
Scan Interval 5 sec.
Video Resolution 2048 x 1536 (Max.); DDC/ DDC2B/ DDC2AB
Weight 1.55LBs
