IOGEAR 6 Port Compact FireWire Hub



For upgrade or replacement options: Contact Us

The IOGEAR GFH610 is a 6-port FireWire hub which provides IEEE 1394a compliant ports that support data transfer rates of 100, 200 and 400 Mbps (megabits per second), and automatically switch to the highest speed that the peripheral supports. FireWire peripherals connect externally by simply plugging in the cables. Configuration is automatic - there is no need to specify memory addresses, IRQ assignments, device IDs, or to plug in terminators. IEEE 1394-compliant peripherals can be hot swapped (added and removed without having to shut the computer down).

The fastest growing use of FireWire is in the realm of digital video (DV) devices. The digital format provides precise audio and video capabilities that are more directly compatible with a computer than the older generation of analog video devices. FireWire provides the physical structure for hassle free, inexpensive, Plug-n-Play networking - perfect for the Small Office/Home Office environment.

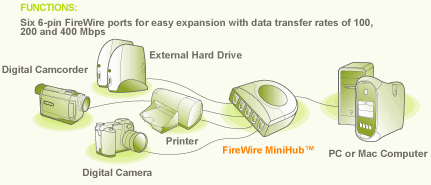

IOGEAR FireWire Hub Application Diagram
IOGEAR FireWire Hub Application Diagram

IOGEAR FireWire Hub Features:

  • IEEE 1394 & 1394OHCI v1.0 and IEEE 1394A v2.0 compliant
  • 100, 200, 400 Mbps data transfer rate
  • Supports hot swapping
  • PC 98 and PCI power management v2.2 compliant
  • Works with DV camcorders, harddrives, digitial cameras, removable drives, scanners, etc.
  • DC input terminal for optional external power supply
  • Six IEEE 1394 ports
  • Six-pin IEEE 1394 I/O connectors
  • Small size for convenient placement

IOGEAR GFH610 Package Includes:

  • 6 Port FireWire Hub
  • Warranty card
  • Manual
  • DC 9V 600mA Power Adapter
  • 6ft. 6-6 Pin FireWire Cable

IOGEAR GFH610 Specifications:

FireWire Specification IEEE 1394a, IEEE 1394a
Cable Length 6 ft. (1.83 m.)
Operating Temperature 20 to 50 degrees (Celsius)
Storage Temperature 0 to 70 degrees (Celsius)
Humidity 20-80% RH, (Non Condensing)
Connections Bus or Self Powered
Consumption DC 9.0V (adapter optional)
Case Plastic
Power On 1
Ports 6 Downstream/Upstream
Operating System Support Windows 98SE, 2000, ME, XP, MAC OS 8.6 or greater
Transfer Rate 100, 200, 400 Mbps
PC Users Windows 98, 98SE, 2000, ME, XP
MAC Users Mac OS 8.6 or Greater
