IOGEAR USB RF Wireless Optical Mini Mouse, 800 dpi



For upgrade or replacement options: Contact Us

IOGEAR's GME223R new USB RF Wireless Optical Mini Mouse is an excellent tool for mobile professionals. RF- or 'radio frequency'- is a power-efficient wireless technology that allows you the freedom of a wireless mouse. IOGEAR's GME223R small and portable design saves precious space in your mobile work area, and it is one less tangled wire in your laptop carrying case. The ergonomically contoured design and optical sensor offer comfortable use on most surfaces, without the need for a mouse pad. This mouse features 800 dpi resolution, meaning it offers twice the accuracy of typical mouse movement, which is ideal for graphic designing or any other type of computing where precision matters. IOGEAR's GME223R unit is USB ready, Plug-n-Play and hot pluggable. For added convenience, the RF Mini Mouse also features a power On/Off switch to avoid battery drainage during travel, and a USB charger cable for convenient charging through the USB port on laptops. This mouse is the ultimate tool for the road warrior of today.

IOGEAR GME223R  Features and Benefits:

  • 800 dpi resolution offers twice the accuracy of typical mouse movement
  • Operates on most surfaces without the need for a mouse pad
  • Works up to 4 feet from your computer and can easily be positioned wherever it is most comfortable
  • Plug-n-Play and Hot Pluggable
  • Light and very portable, great for mobile professionals
  • Saves precious space in your mobile work area
  • Power on/off switch conserves electricity for maximum battery life
  • Comes with a USB charger to allow you to charge batteries through the laptop
  • Ergonomically contoured design for comfortable use
  • 3 Year Limited Warranty

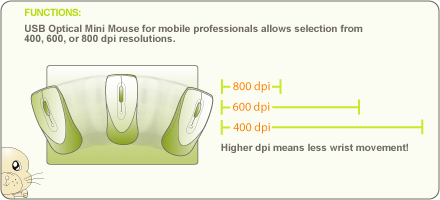

IOGEAR GME223R Function Diagram
IOGEAR USB RF Wireless Optical Mini Mouse GME223R

IOGEAR GME223R  Requirements:
Windows 98, 98SE, 2000, ME, XP
Mac OS X or later (For Mac 9.x or earlier, it works only as a one button mouse)
Available USB port

IOGEAR GME223R  Package Content:
1 USB Wireless Optical Mini Mouse 800
1 Carrying case
1 USB battery charger cable
1 USB extension cable
1 User manual
2 batteries
1 Warranty registration card

IOGEAR GME223R  Specifications:

Resolution 800 dpi
Number of IDs 2048
Battery Type Ni-Mh
Interface USB
Frequency Band 27.015 MHz
Operating Range 4 ft. (1.2m)
Height 1.125 in. (2.86 cm.)
Length 3.25 in (8.26 cm.)
Width 1.5 in. (3.81 cm.)
Case Wt. 10.05 Lbs. (4.57 kg.)
Package Wt. 0.5 Lbs. in (0.225 kg.)
Unit Wt. 0.15 Lbs for the mouse, 0.7 Oz for the transmitter
Voltage 2.4V
Amps <20mA
Package Dimensions
Depth 3 in. (7.62 cm.)
Width 6 in. (15.24 cm.)
Height 10 in. (25.4 cm.)
Height 11.4 in. (28.95 cm.)
Case Qty. 12
Width 15.5 in. (33.37 cm.)
Length 22 in. (55.88 cm.)
