IOGEAR USB Print Server, 1-Port



For upgrade or replacement options: Contact Us

IOGEAR's GPSU01 palm sized 1-port USB Print Server allows any networked computer to share an USB printer. It complies with USB 1.1 specifications, and provides users with an auto-sensing 10/100Base-T port. IOGEAR GPSU01 works with either 10BaseT or 100BaseT networks. IOGEAR GPSU01 also supports multiple protocols and multiple operating systems, and it integrates Internet Printing Protocol (IPP) in this print server to allow users to print from any computer over a LAN/WAN or the Internet by specifying the device's URL. The built-in web management feature provides more convenience by allowing the user to configure, monitor and even reset the print server via a web browser. This eliminates the need to place the printer right next to the computer. Print jobs can be sent to a printer in another country just as easily as to a printer in the same office. Why bother sending a degraded fax image while you can print an original at the destination?

IOGEAR's GPSU01 1-port USB Print Server Features and Benefits:

  • Easily connect your USB printer to a network
  • Allows multiple computers to share one USB printer on the network
  • Print from any computer on your network or from across the Internet
  • Supports DHCP Client and multiple network protocols
  • 10/100Mbps auto-sensing
  • Supports Telnet and Web Management software

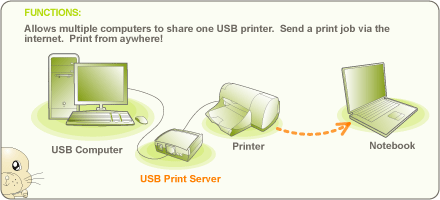

IOGEAR GPSU101 Function Diagram
IOGEAR's GPSU01 1-port USB Print Server Function Diagram

IOGEAR's GPSU01 1-port USB Print Server Requirements:

  • This USB print server supports: Windows 98SE/ME/NT/2000/XP, Novell(iBindery/NDS), Mac OS 8.6 or Later*, Unix/Linux, Printer with USB connection (*The print server only supports post-script printers under Mac OS 8.6 or later)

IOGEAR's GPSU01 1-port USB Print Server Package Content:
1 USB Print Server
1 Six-foot CAT5 patch cable
1 User manual
1 Installation CD
1 Warranty/registration card
1 Power adapter

IOGEAR's GPSU01 1-port USB Print Server Specifications:

Buffer Size 1M
Network Interface 10/100Mbps RJ45
Management Web, Telnet, PSAdmin, SNMP, HP JetAdmin Support
Standards IEEE 802.3 10Base-T; IEEE 802.3u 100Base-T; USB 1.1
Printer Connection USB 1.1
Network Protocol IPX, TCP/IP, NETBUEI, APPLETALK, lpr, smb (Over IP)
Width 2 in. (5.08 cm.)
Length 2.25 in. (5.72 cm.)
Height 1 in. (2.54 cm.)
Package Wt. 0.95 Lbs. (0.43 kg.)
Unit Wt. 2 Oz. (56.7 g.)
Case Wt. 13.75 lbs. (6.19 kg.)
Package Dimensions
Length 8 in. (20.32 cm.)
Width 5.5 in. (13.97 cm.)
Depth 2.75 in. (6.99 cm.)
Height 12.25 in. (31.12 cm.)
Case Qty. 12
Width 8.75 in. (22.23 cm.)
Length 17.75 in. (45.09 cm.)
