IOGEAR 2 Port USB 2.0 PCMCIA CardBus Card

GPU202

$49.95

Discontinued
For upgrade or replacement options: Contact Us

IOGEAR introduces the first Dual Port Hi-Speed USB 2.0 PCMCIA (GPU202)
IOGEAR GPU202 cardBus card for Macintosh and PC notebook computers. IOGEAR's GPU202 USB 2.0 PCMCIA CardBus card auto configures and requires no additional drivers. IOGEAR GPU202 brings the cutting edge technology of USB 2.0 to your Macintosh PowerBookor PC Laptop. You will enjoy the convenience and newfound speed that has made USB an industry standard. IOGEAR's GPU202 USB 2.0 PCMCIA CardBus card will allow you to easily add up to 127 simultaneous USB 2.0 and 1.1 devices. This device will fit into any PCMCIA CardBus slot. IOGEAR's USB 2.0 PCMCIA Cardbus card will fit the need of any mobile professional who needs the speed and convenience of USB 2.0.

IOGEAR GPU202 cardBus card for Macintosh and PC Features and Benefits:

  • Fully backwards compatible to USB 1.1
  • Supports 32-bit CardBus PC Card Type II slot
  • Up to 480Mbps data transfer rate
  • Hot Swappable - Plug-n-Play
  • USB 1.1 and USB 2.0 compliant
  • 2 built-in type A USB connections
  • No software needed
  • 3 Year Limited Warranty

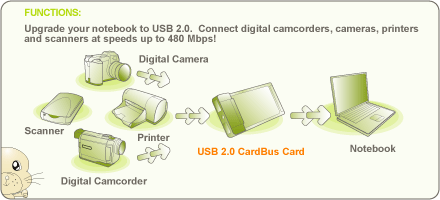

IOGEAR GPU202 Function Diagram
IOGEAR GPU202 cardBus card for Macintosh and PC


IOGEAR GPU202 cardBus card for Macintosh and PC Requirements

  • For PC Users: Windows 98SE,2000, ME, XP, Available 32 bit PCMCIA slot (CardBus slot)
  • For MAC Users:  Mac OS 8.6 or greater (NOTE: OSX 10.1.x is required for USB 2.0 functionality), Available PCMCIA slot

IOGEAR GPU202 cardBus card for Macintosh and PC Package Content
1 GPU202 - 2-Port USB 2.0 PCMCIA Card
1 Warranty Card
1 User Manual
1 Installation CD

IOGEAR GPU202 cardBus card for Macintosh and PC Specifications:

USB Specification USB 1.1 and 2.0 compliant
Operating Temperature 20 to 50 degrees (Celsius)
Storage Temperature 0 to 70 degrees (Celsius)
Ports 2 USB 2.0
Transfer Rate 480 Mbps
Operating System Support Windows, 98SE, ME, 2000, XP, MAC OS 8.6 or greater (OSX 10.1.x or higher is required for USB 2.0)
Power Consumption 3.0V
Power Connections DC adapter (optional)
Humidity 20-80% RH, (Non Condensing)
Dimensions
Length 2.0 in. (5.08 cm.)
Height 0.5 in. (1.27 cm.)
Depth 4.5 in. (11.4 cm.)
Weight
Case Wt. 18.75 lbs. (8.44 kg.)
Package Wt. 0.6 lbs. (0.27 kg.)
Unit Wt. 1.4 oz. (39.69 g.)
Housing
Case Metal/Plastic
Package Dimensions
Depth 2.5 in. (6.4 cm.)
Width 9.5 in. (24.1 cm.)
Height 6.5 in. (16.5 cm.)
Case
Height 13.75 in. (34.93 cm.)
Width 16 in. (40.64 cm.)
Length 20 in. (50.8 cm.)
Case Qty. 24
Question: WHAT IS THE POLARITY OF THE OPTIONAL EXT POWER CONNECTOR ?
Answer: Thank you for your inquiry. According to the manufacturer, the power adapter (part # 0AD1-0705-231) is a 5VDC 2.3A Center Pin Positive AC Adapter.
