IOGEAR PS/2 to USB Adapter



Recommended replacement: ATEN UC100KMA
Alternative options: Contact Us

IOGEAR USB Adapter GUC100KM - USB to PS/2 adapter for keyboard/mouse

Universal Serial Bus (USB) port technology has emerged in response to the proliferation of external peripheral devices (scanners, digital cameras, removable drives, etc.), that are increasingly being connected to the latest generation of PCs.

USB behaves in a similar fashion to conventional bus ports (i.e., serial, parallel, PS/2), but since it does not require any IRQs, more devices can be attached to the system, and the problem of IRQ conflict is eliminated. The GUC100KM PS/2 to USB Keyboard and Mouse interface converter provides the means for PS/2 type keyboards and mice to connect to a PC, notebook, laptop, or handheld computing device that supports the USB specification via the USB bus instead of using conventional bus technology.

An advantage of this for notebooks, for example, is that now an external mouse and keyboard can be connected at the same time without causing conflicts. The GUC100KM comes with two standard 6 pin mini DIN female connectors for the PS/2 keyboard and PS/2 mouse to plug into and has an attached 30 cm USB cable with a type A plug for connection to the PC's USB port, or to a USB hub. For further convenience - especially to users of notebooks, laptops, and handhelds - the GUC100KM adapter derives its operating power from the Universal Serial Bus itself, so no bulky external power supply needs to be taken along. And because it is a USB Specification compliant device, the GUC100KM supports energy-saving suspend and resume operations.

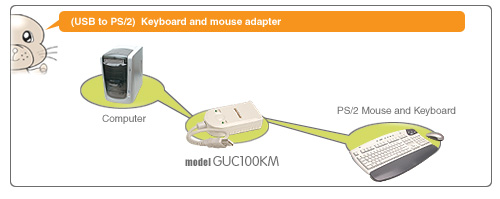

IOGEAR GUC100KM Function


IOGEAR GUC100KM Features/Benefits
  • Works with any USB compliant System PS/2 Keyboard and PS/2 Mouse Ports
  • Supports wheel mice
  • USB Powered
These flash when the keyboard or mouse is transmitting data packets The Cables from the PS/2 Mouse and PS/2 Keyboard plug in here Press to activate the USB to PS/2 converter
IOGEAR GUC100KM Requirements
  • For PC users:
  • Windows® 98, 98SE,2000, ME, XP
  • Available USB port
  • For MAC users:
  • Mac OS 8.6 or greater
  • Available USB port
IOGEAR GUC100KM Package Contents
  • GUC100KM - USB to PS/2 adapter for keyboard/mouse
  • Instruction sheet
IOGEAR GUC100KM Specifications

Function GUC100KM
Cable Length 6 in.
Case Plastic
Humidity 20-80% RH, (Non Condensing)
Operating System Support Win 98, 98SE, 2000, ME, XP, MAC OS 8.6 or greater
Operating Temperature 20 to 50 degrees (Celsius)
Ports (2) PS/2
Power Connections Bus powered
Storage Temperature 0 to 70 degrees (Celsius)
Transfer Rate 12 Mbps
USB Specification USB 1.1 compliant
