| Descriptions |
USB to PS/2 adapter for keyboard/mouse - Convert your PS/2 mouse and keyboard to USB.

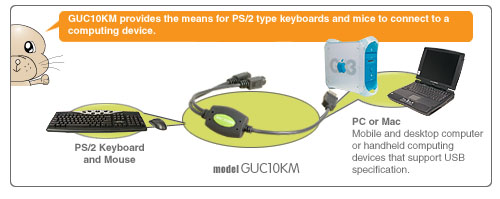

The GUC10KM USB to PS/2 Keyboard and Mouse adapter provides the means for PS/2 type keyboards and mice to connect to a PC, notebook, laptop, or handheld computing device that supports the USB.
An advantage of this for notebooks, for example, is that now an external mouse and keyboard can be connected at the same time without causing conflicts. The GUC10KM comes with two standard 6 pin mini DIN female connectors for the PS/2 keyboard and PS/2 mouse to plug into and has an attached 16in. USB cable with a type A plug for connection to the PC's USB port, or to a USB hub. For further convenience - especially to users of notebooks, laptops, and handhelds - the GUC10KM adapter derives its operating power from the Universal Serial Bus itself, so no bulky external power supply needs to be taken along. And because it is a USB Specification compliant device, the GUC10KM supports energy-saving suspend and resume operations.
| Function |
| Features/Benefits |
- Works with any USB compliant System PS/2 Keyboard and PS/2 Mouse Ports
- Supports wheel mice
- USB Powered
| Requirements |
- For PC users:
- WindowsĘ 98, 98SE, ME, 2000, XP
- Available USB port
- For MAC users:
- Mac OS 8.6 or greater
- Available USB port
| Package Contents |
- GUC10KM - USB to PS/2 adapter for keyboard/mouse
- Users Manual
| Specifications |
| Function || GUC10KM |
|Cable Length || 16.5 in. (41.9 cm.) |
| Case |
| Case Qty. || 24 |
| Height || 14.0 in. (35.5 cm.) |
| Length || 22.0 in. (55.8 cm.) |
| Width || 13.5 in. (34.2 cm.) |
| Dimensions |
| Height || 0.2 in. (0.5 cm.) |
| Length || 16.5 in. (41.9 cm.) |
| Width || 1.0 in. (2.5 cm.) |
| Housing |
| Case || Plastic |
| Humidity || 20-80% RH, (Non Condensing) |
| Operating System Support || Win 98, 98SE, 2000, ME, XP, MAC OS 8.6 or greater |
| Operating Temperature || 20 to 50 degrees (Celsius) |
| Package Dimensions |
| Depth || 2.5 in. (6.35 cm.) |
| Height || 7.6 in. (19.3 cm.) |
| Width || 6.0 in. (15.2 cm.) |
|Ports || Two (2) PS/2 |
|Power Connections || Bus powered |
| Storage Temperature || 0 to 70 degrees (Celsius) |
| Transfer Rate || 12 Mbps (Megabits per-second) |
|USB Specification || USB 1.1 compliant |
| Weight |
| Case Wt. || 10.95 lbs. (4.9 kg.) |
| Package Wt. || 0.3 lbs. (0.13 kg.) |
| Unit Wt. || 0.1 lbs. (0.05 kg.) |UPC 672792502897EAN 0672792502897
Question: Does it work with IBM Model M keyboard (part number 52G9658) and Model M2 (part number 1395300)?
Answer: Thank you for your inquiry,
According to the vendor, as long as the IBM keyboard models in question have a PS/2 connector and not an older 5 pin AT style connector they should work just fine.
Note, In some instances you may need to reverse the connections of the KB/mouse.
Please let us know if there is anything else we can help you with!
