IOGEAR USB 2.0/FireWire PCI card



For upgrade or replacement options: Contact Us

IOGEAR GUF3121 brings the cutting edge technology of USB 2.0 and FireWire to your desktop computer, in a single convenient host controller card. You will enjoy the convenience and newfound speed that has made the USB and FireWire product specifications to be industry standards. IOGEAR's GUF3121 USB 2.0 / FireWire Combo Card is a great addition for anyone needing to integrate the latest in digital technology while preparing their system for future connectivity devices. IOGEAR's combo card features 3 external and 1 internal Type A USB ports; and 2 external and 1 internal 6 pin FireWire ports. Add external and internal FireWire and USB peripherals to your computer. With IOGEAR's Combo Card, you are ready for the latest technology.

IOGEAR GUF3121 Features and Benefits:

  • 40 Times Faster Than The Original USB
  • Supports High Speed Data Transfer Rates of up to 480 Mbps
  • Supports Mac OS 8.6 (OS X needed for USB 2.0 support) or Greater; Windows 98SE, 2000, ME, XP
  • Fully Backward Compatible With USB 1.1
  • Hot swappable - Plug-n-Play
  • PC Power Management v2.2 Compliant
  • 3 External Type A USB Ports
  • 1 Internal Type A USB Port
  • 2 External 6 pin FireWire Port
  • 1 Internal 6 pin FireWire Port

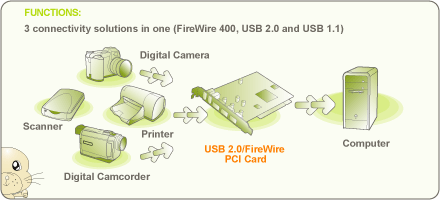

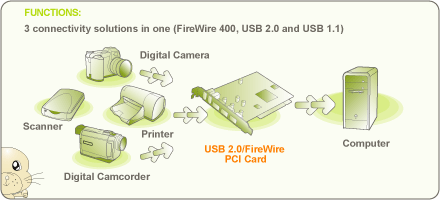

IOGEAR GUF3121 Function Diagram
IOGEAR GUF3121 Function Diagram

IOGEAR GUF3121 Requirements:

  • For PC Users:  Windows 98SE, 2000, ME, XP, Available PCI Card Slot
  • For MAC Users:  Mac G3, Mac OS 8.6 or Greater, Mac OS X (for USB 2.0 support), Available PCI Card Slot

IOGEAR GUF3121 Package Content:
1 GUF3121 Combo PCI Card
1 Installation CD
1 ArcSoft "ShowBiz" DV Editing Software CD
1 Users Manual
1 Warranty/Registration Card

IOGEAR GUF3121 Specifications:

USB Specification USB 1.1 and 2.0 compliant
Operating Temperature 20 to 50 degrees (Celsius)
Storage Temperature 0 to 70 degrees (Celsius)
Ports (2) USB 2.0 External, (1) Internal, (2) FireWire 1394a External, (1) Internal
Transfer Rate USB - 480 Mbps, FireWire - 100, 200, 400 Mbps
FireWire Specification IEEE 1394a
Operating System Support Win 98SE, 2000, ME, XP, MAC OS 8.6 to 9.1 (USB 1.1) Mac OS X.1.3 (USB 2.0)
Humidity 20-80% RH, (Non Condensing)
Package Wt. 1.5lbs. (0.68 kg.)
Case Wt. 10.20 lbs. (4.59 kg.)
Package Dimensions
Height 6.5 in. (16.5 cm.)
Width 9.5 in. (24.1cm.)
Depth 2.5 in. (6.4 cm.)
Case Qty. 12
Width 10.5 in. (26.67 cm.)
Length 16.5 in. (41.91 cm.)
Height 14 in. (35.56 cm.)
