IOGEAR 4 Port USB & FireWire Combo Hub
GUH420
The IOGEAR GUH420 is a 4-port USB 2.0 / 3-port FireWire Universal Hub which offers a complete high speed connectivity solution. It brings USB 2.0 and FireWire connectivity to your notebook or desktop computer. You'll enjoy the convenience and reliability that has made USB and FireWire industry standards when it comes to connecting multiple high-tech peripheral devices. USB 2.0 and FireWire provide high bandwidth, thus broadening the range of peripherals that may be attached to your computer.

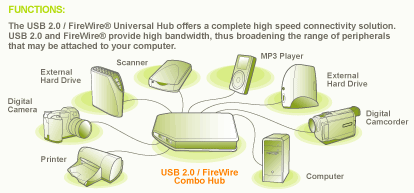

IOGEAR USB Firewire Combo Hub Diagram
IOGEAR USB FireWire Combo Hub Features:
- USB 2.0
- Provides four up/downstream ports
- 480 Mbps data throughput
- 100% Backward compatible with USB v1.1
- USB & IF certified
- Chain up to 127 devices together (by daisy chaining)
- Plug-n-Play, hot swappable
- Automatically switches to the highest speed supported by peripheral
- Hot Pluggable - connect devices without restarting the computer
- Easy to install - no jumpers, switches or terminators required
- FireWire
- Three up/downstream ports
- 400 Mbps data throughput
- Supports 100/200/400 Mbps connections
- Fully IEEE 1394 compliant
- Connect up to 63 devices together (by daisy chaining)
IOGEAR GUH420 Package Includes:
- (1) USB 2.0 (4-Ports)/ FireWire (3-Ports) Combo Universal Hub
- (1) USB 2.0 6 feet A type to B type Cable
- (1) FireWire 6 feet 6 pin to 6 pin Cable
- (1) 100-240VAC, DC 5V 2.6A Switching Adapter
- (1) Warranty Card
- (1) Quick User Guide
IOGEAR GUH420 Specifications:
| Mechanical | |
| Height | 5.9 in (15 cm) |
| Width | 3.42 in (8.7 cm) |
| Depth | 1.18 in (3 cm) |
| Cable Length | 6 ft. (1.83 m.) |
| Weight | 0.32 lb. (0.15 Kg) |
| Environmental | |
| Operating Temperature | 20 to 50 degrees (Celsius) |
| Storage Temperature | 0 to 70 degrees (Celsius) |
| Humidity | 20-80% RH, (Non Condensing) |
| Power | |
| Consumption | 5.0V - 2.6A |
| Connections | DC adapter (included) |
| Housing | |
| Case | Plastic |
| Ports | 4 USB 2.0 3 FireWire |
| Compliance | |
| USB | USB 1.1 and 2.0 compliant |
| FireWire | IEEE 1394-1995, P1394a (rev 1.1) and OHCI Interface specification 1.0 compliant. |
| Transfer Rate | 400 mbps - 480 mbps |
| Operating System Support | Windows, 98SE, 2000, ME, XP, MAC OS 8.6 or greater |
| Requirements | |
| PC Users | Pentium or K6 - class processor (266Mhz or higher) Windows 98 Second Edition or later 64MB of RAM Available USB 2.0 and FireWire ports |
| MAC Users | PowerMac G3 (Blue & White Tower) or later Mac OS v8.6 or higher * Mac OSX 10.1.5 or higher is required for USB 2.0 functionality 64MB of RAM Available USB 2.0 and FireWire ports |
UPC 881317003577
EAN 0881317003577
Question: Will the IOGear GUH420 allow me to connect my mini-DV video camera with Firewire output to my laptop PC with USB 2.0 ports?
Answer: Thank you for your inquiry. Unfortunately, this is a "pass-through" type hub that does not provide any conversion. It would need to attach to your laptop via both FireWire and USB 2.0 to function.
Answer: Thank you for your inquiry. Unfortunately, this is a "pass-through" type hub that does not provide any conversion. It would need to attach to your laptop via both FireWire and USB 2.0 to function.
