The IOGEAR GVS162W6 is a 2 Port DVI Splitter with audio. This product allows you to simultaneously broadcast video across 2 displays. The video splitter is an ideal solution for simultaneous broadcasting environments and digital signage applications
Classrooms, exhibits, trade shows, monitor testing, demonstrations and multi-media presentations.
Broadcasting video information such as news headlines, stock prices, airline flights and train schedules.
Universities with multiple campuses, a single teacher to teach class to students in two or more locations at the same time
Iogear's DVI splitter supports both Analog & Digital video signal PLUS Audio.

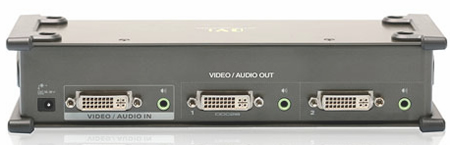

IOGEAR 2 Port DVI Splitter Backview
IOGEAR GVS162W6 Features:
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels
- Installs in minutes.
- Maintains highest single link video resolution (1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).

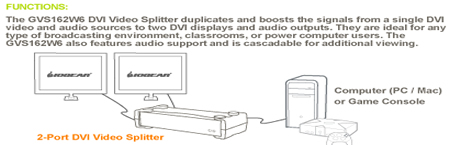

IOGEAR 2 Port DVI Splitter Application Diagram
Monitors and TVs with DVI connections
Computers or source devices with DVI connections
- 1 x IOGEAR 2 Port DVI Video Splitter
- 1 x DVI-D 6ft Cable
- 1 x Mini-Stereo Jack (Male) to Stereo RCA Jack (Male)
- 1 x Mini-Stereo Jack (Male) to Stereo RCA Jack (Female)
- 1 x Full Range Universal Power Adapter
- 1 x US to German Prong Adapter
- 1 x Quick Start Guide
- 1 x Warranty / Registration Card
IOGEAR GVS162W6 Specifications:
|Height||1.75 in. (4.4 cm.)|
|Width||3.2 in. (8.1 cm.)|
|Depth||8.3 in. (21.1 cm.)|
|Weight||3.2 lbs. (1.42 kg.)|
|Power Consumption||DC 5.3V, 3.4W|
|Video Resolution||1920 x 1200|
|Operating Temperature||32F-122F (0C-50C)|
|Storage Temperature||-4F-140F (-20C-60C)|
|Humidity||0-80% RH (Non-Condensing)|
|Daisy Chain||Dependent on Signal Strength|
|Signal Type||DVI-Digital and DVI-Analog|
|Cable Distance||15 ft (4.6m)|
|Connectors (Input)||1 x DVI Female, 1 x Earphone Jack Female|
|Connectors (Output)||2 x DVI Female, 2 x Earphone Jack Female|
