IOGear DVI Video Extender Kit (CAT 5e/6) w/Audio



Recommended replacement: IOGear GVE250
Alternative options: Contact Us

The IOGEAR GVE600W6 is the DVI Video Extender System which amplifies and extends video up to 100ft (30m) away from your HDTV or PC monitor via a single solid CAT 5e/6 cable, and it is audio enabled for stereo speaker connection.

NOTE: Can extend the DVI video and audio up to 300ft by cascading 3 levels.

It accomplishes this by means of a local transmitting unit (GVE600L), and remote receiving unit (GVE600R), connected by a solid Category 5e or Category 6 Ethernet cable.

The DVI Video/Audio Extender System allows you to remove valuable system equipment from high traffic areas and store it in a secure location. Hence, it is ideal for:

  • Broadcasting and digital signage applications
  • Classrooms, exhibits, trade shows, monitor testing, demonstrations and multi-media presentations
  • Broadcasting video information such as news headlines, stock prices, airline flights and train schedules
  • Universities with multiple campuses, a single teacher to teach class to students in two or more locations at the same time
  • Factory and construction sites or any installation where the display needs to reside in a harsh setting, but you want the system equipment kept in an environmentally friendly location

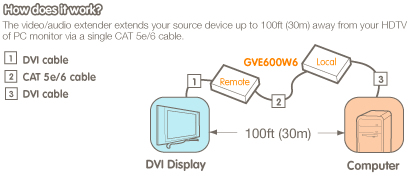

IOGEAR DVI Video Extender Application Diagram
IOGEAR DVI Video Extender Application Diagram

IOGEAR GVE600W6 Features:

  • Audio enabled for stereo speaker connection
  • Requires only one solid CAT cable to extend DVI video signals up to 100ft (30m)
  • Solid CAT5e/6 cable is more economical and provides for easy installation
  • Fully compliant with DVI 1.0 specification
  • Supports VESA standard display resolutions and HDTV resolutions
  • Supports DDWG standard for DVI compliant monitors
  • SXGA (1280 x 1024)


Computer with DVI-D Single Link or Dual Link connectors
Display device with DVI-D Single Link or Dual Link connectors
A solid CAT5e / CAT6 cable

Package Includes:

  • 2 x DVI extenders (remote & local)
  • 2 x Power adapters (Universal)
  • 1 x DVI with audio cable
  • 1 x Quick Start Guide
  • 1 x Warranty / Registration Card

IOGEAR GVE600W6 Specifications:

Height 4.7 in. (11.9 cm.)
Width 1 in. (2.3 cm.)
Depth 3.4 in. (8.6 cm.)
Weight 3.5 lbs. (1.6 kg.)
Operation Temperature 23-122F (-5-50C)
Storage Temperature -13-149F (-25-65C)
Humidity 0-80%RH; Non-Condensing
Physical Properties
Housing Metal
