IOGear 4-Port HDMI Audio/Video Splitter

GVS184

$189.95

Discontinued
Recommended replacement: Aten VS184A
Alternative options: Contact Us

The IOGEAR GVS184 is a 4-Port HDMI Audio/Video Splitter is used to take high definition video from a single HDMI media source and direct it to 4 separate HD TVs or displays. By using today's newest connectivity standard, HDMI v1.3b (High Definition Multimedia Interface) and being High-bandwidth Digital Content Protection (HDCP) compliant, the GVS184 is able to support the highest quality HD video and multi-channel audio, play all the top DVD or Blu-Ray movies, and carry the best signal from source to 2 HD TVs or displays. Providing a data rate of up to 2.25Gbps, the high bandwidth allows for the transmission of large amounts of information at a very high rate of speed. It is compatible with TV resolution: 480i/480p/720p/1808i/1080p. It is also compatible with computer resolution: VGA/SVGA/XGA/SXGA/UXGA.

IOGEAR's HDMI Audio/Video Splitters have the ability to auto-downscale the display resolution to fit all displays that you have connected to the splitter.* No more hassle to setup display resolution manually from your HD media source.

*Note: For HD media sources that support auto video resolution scaling.

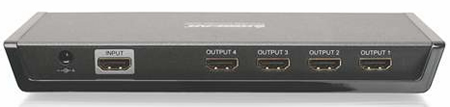

IOGEAR 4 Port HDMI Splitter Backview
IOGEAR 4 Port HDMI Splitter Backview

IOGEAR GVS184 Features:

  • Stream a single HD media source to 4 displays
  • Auto-downscale video resolution to fit all displays*
  • Zero signal loss from source to display
  • Full HD 1080p support
  • HDMI 1.3b Certified and HDCP Compliant
  • Front panel reset button
  • Power LED and ActivePort LED
  • Plug-N-Play
    *Note:For HD media sources that support auto video resolution scaling.

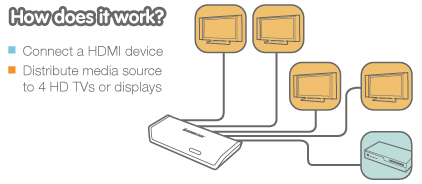

IOGEAR 4 Port HDMI Splitter Application Diagram
IOGEAR 4 Port HDMI Splitter Application Diagram

Requirements:

HD TVs or displays with HDMI input connections
HD media source with HDMI output connection

Package Includes:

  • 1 x 4-Port HDMI Splitter
  • 1 x Power Adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Card

IOGEAR GVS184 Specifications:

Mechanical
Height 0.875 in. (2.2 cm.)
Width 8.0 in. (20.3 cm.)
Depth 4.0 in. (10.2 cm.)
Weight 0.86 lbs. (0.39 kg.)
Housing
Case Plastic
LEDs
Power On 1
Port Status 4 (Output)
Power Consumption 12 Watts (max)
Power
Voltage DC6V
Amps 2A
Data Rate Up to 2.25Gbps
Video Resolution 480i / 480p / 720p / 1080i / 1080p; VGA / SVGA / XGA / SXGA / UXGA
Cable Connections
Input HDMI
Output HDMI
Connectors (Input) 1 x HDMI Type A 19 Pin Female
Connectors (Output) 4 x HDMI Type A 19 Pin Female
Environment
Operation Temperature 32-122F (0C-50C)
Humidity 0-80% RH (Non-Condensing)
Storage Temperature -4F-140F (-20C-60C)
Switches
Reset 1 x Reset Button
POP Information
10" Peg Hook 3
6" Peg Hook 2
