IOGear 8-Port VGA Video Splitter

GVS78

$69.95
FREE Shipping on orders over $100

The IOGEAR GVS78 is an 8-port VGA video splitter and a signal booster with IOGEAR's patented VSE (Video Signal Enhancement) Technology. It is the best choice for splitting and carrying a video signal to more that one display with the same quality as the original signal. The GVS78 VGA Video Splitter is used to take video input from a single source and direct it to eight video outputs for monitors using analog signals.

The signal boost obtained by using IOGEAR's patented VSE (Video Signal Enhancement) Technology allows you to not only split the signal but it also amplifies the video signal to increase the transmission distance to about 215 feet away. This is no small feat, your average VGA card, over a standard VGA cable, sends a clear VGA signal approximately 25 feet.

Operating with a bandwidth of 300MHz (300 million cycles per second) that is 50 times greater than a simple TV signal. The high bandwidth allows for the transmission of large amounts of information at a very high rate of speed, thus allowing for the use of high resolution settings upwards of 1920 x 1440 in 24- or 32-bit true color mode.

IOGEAR 8 Port Video Splitter Backview
IOGEAR 8 Port Video Splitter Backview

IOGEAR GVS78 Features:

  • Stream a single video source to 8 separate VGA monitors
  • Ultra High 350MHz Bandwidth Superior video quality, maintains highest signal strength in all applications up to 1920 x 1440
  • Includes IOGEAR's patented VSE (Video Signal Enhancement) Technology, which amplifies video signal strength throughout your desire set-up
  • Amplifies video signals increasing transmission distance up to 215 ft.
  • Cascadable; allows you to expand your video splitter set up beyond 8 displays
  • Hassle free, no software to install, instant installation and use
  • Hot-Plug capability, Hot-Swappable, Plug-n-Play
  • Compact design for easy placement
  • Supports DDC, DDC2, DDC2B at Port 1

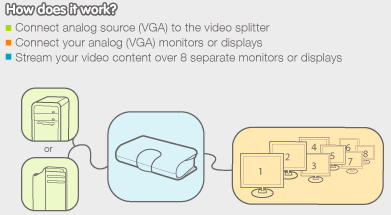

IOGEAR 8 Port Video Splitter Application Diagram
IOGEAR 8 Port Video Splitter Application Diagram

Requirements:

Video source with VGA (HDB-15) connection
Displays with VGA (HDB-15) connection

Package Includes:

  • 1 x 8-Port VGA Video Splitter
  • 1 x Power Adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Card

IOGEAR GVS78 Specifications:

Mechanical
Height 2.0 in. (5.1 cm.)
Width 8.5 in. (21.6 cm.)
Depth 3.75 in. (9.5 cm.)
Weight 1.0 lbs. (0.45 kg.)
Housing
Case Plastic
LEDs
Power On 1
Power Consumption 3.94W (Max)
Power
Voltage DC9V
Video Bandwidth (-3db) 300MHz
Video Resolution 1920 x 1440 @ 60 Hz
Signal Type VGA, SVGA, XVGA, USXGA and Multi-sync
Cable Distance 65m (214.5 ft.)
Cascade 3 Level
Environment
Operation Temperature 32-122F (0C-50C)
Humidity 0-80% RH (Non-Condensing)
Storage Temperature -20F-140F (-20C-60C)
UPC / EAN Barcode icon
UPC 881317504722
EAN 0881317504722
Question: is this wireless or i need cable to conect
Answer: Thank you for your inquiry. This device requires VGA cables to operate.
