IOGEAR's innovative GW3DHDKIT takes wireless home entertainment and 2 HDTV set-ups to the next level of connectivity, flexibility, and convenience. The GW3DHDKIT is capable of streaming uncompressed Full HD 1080p video, with support for the latest 3D movie content along with wireless 5.1 digital surround sound audio, up to 100 feet* away. Video and audio signals can be wirelessly sent through standard hollow walls and ceilings within the home. (Distances and reception are dependent on wall/door construction.)
Wireless Transmitter for Wireless Video and Wireless Audio
The kit consists of a wireless video transmitter supporting 5.1 digital surround sound audio and a wireless audio / video receiver with connections for your HDMI¨ enabled devices. Consolidate your HDMI¨ A/V electronics and use the Wireless HD Digital Kit as an 2-port HDMI¨ switch to connect devices such as Blu-ray players, DVR / Cable boxes and or computer to design your own custom wireless entertainment space. Built-in Infrared (IR) pass-through gives you wireless control of your HDMI¨ devices while in a separate room away from your devices.
Use as a Wireless TV and a HDMI¨ Switch
Supports 2 HDTVs - A built-in loop-through (local) HDMI port allows you to set up your living room HDTV and add an additional room wirelessly making your second HDTV a wireless TV. Wirelessly transmit your favorite movies and videos to your bedroom, bathroom, den, loft, kitchen or patio. Set-up 2 HDTV environments in minutes. If you have access to a power outlet then you can place your HDTV anywhere and receive your favorite HDTV shows or 3D movies wirelessly.
Wireless Video Through Walls
The Wireless HD Digital Kit does not require a line-of-sight placement, keeping home theater devices neatly out of sight, which enables a quick, simple, and flexible wireless audio and wireless video solution.
The configuration possibilities and usage for this solution are endless and a must have for today's digital home.
*Distances may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances.
In the box:
1 x Wireless HD Transmitter
1 x Wireless HD Receiver
1 x Remote Control
1 x IR Blaster Cable
2 x Power Adapter
2 x Battery (AAA)
1 x HDMI Cable
1 x Quick Start Guide
1 x Warranty / Registration Card

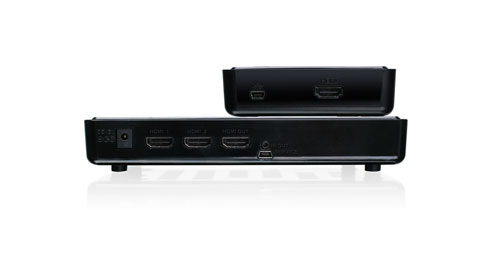

IOGEAR GW3DHDKIT Transmitter and Receiver Backs
Features of the GW3DHDKIT
- Wireless HD audio / video streaming up to 100 ft.* away through standard home walls
- 2 HDTV set-up - Share your HD content in a second location at the same time:
- Living room HDTV can connect to transmitters loop-through (local) port directly
- Bedroom HDTV can receive content from wireless receiver
- Connect and transmit wireless video content from your Blu-ray / DVD player and DVR / Cable box turning your HDTV into a wireless TV
- Wireless 3D support
- Wireless HD in Full 1080p and 5.1 channel digital audio
- Video Resolutions: 480p, 720p, 1080i and 1080p (24 / 30 / 60fps)
- Create the floating HDTV in almost any location such as bedroom, bathroom, family room, living room, den, loft, kitchen or patio
- Keep home theater electronic devices neatly out-of-sight
- Built-in IR allows the user control over their source devices that are hidden away in a different location
- No software or driver installation needed
- HDCP Compliant
- Based on WHDIª Technology - Low latency <1ms
- Multilingual keyboard mapping - Supports English, Japanese, and French keyboards
- Multiplatform support - Windows, Linux and Mac
*Distances may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances

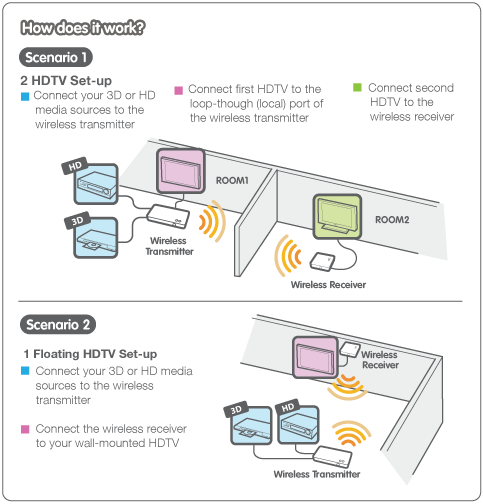

Wireless HDMI Extension Application Diagram
|Width||TX: 3.75"; RX: 3.75"|
|Height||TX: 1.25"; RX: 1.25"|
|Depth||TX: 7.25"; RX: 3.75"|
|Video Input||2 x HDMI|
|Video Output||2 x HDMI (loop-through & remote)|
|Audio Input||2 x HDMI|
|Audio Output||2 x HDMI (loop-through & remote)|
|Cable||2.5mm IR extender; 33KHz ~ 40KHz|
|Resolution||480p, 576p, 720p, 1080i, 1080p and 3D|
|Video Streaming||<1ms Latency|
|Audio Output||Up to 5.1 channels of surround sound|
|Frequency||5Ghz unlicensed band|
|Range||100ft. Distances may vary depending on environment|
|Antenna Type||High Performance Internal Antennas|
|Power Switch||Pushbutton on the unit and remote control|
|Port ID||LED (Transmitter and Receiver)|
|Power On||LED (Transmitter and Receiver)|
|Link||LED (Transmitter and Receiver)|
|Voltage||100~240V AC in, 5V DC out Power Adaptor|
|Amps||Transmitter: 2A; Receiver: 1.5A|
Answer: Thank you for your inquiry. International orders are accepted on a case-by-case basis with a $1,000 minimum, $100 transaction fee and additional requirements.
IOGEAR has several Australian distributors that you should be able to purchase this product through. See: http://www.iogear.com/buy/reseller/?c=Australia
Question: Can you turn on the remote tv without the home tv being on ? If the remote tv is on is the home tv automatically on ? If the home tv is hd can I send and operate a remote non hd tv ?
Answer: Yes, the remote TV can be turned on separately. This device is an HDMI transmitter and receiver, so it will only transmit the HDMI source (blu-ray player, cable box, etc...) The "home" TV will only be a video signal coming out of the box as if it was connected directly to the source. The 2 screens are independent of each other.
Question: can you have 2 recievers, and one transmitter?
Answer: Thank you for your inquiry. Unfortunately no, this is a one to one solution in which you cannot add an additional receiver.
Question: If you have 2 receivers and 2 transmitters is there any chance of interference ?
Answer: Thank you for your inquiry. There may be some chance for interference between units, but the quick start guide states the following:
'If you have more than one pair, each transmitter and receiver should be at least 6.5 feet away from one another.' We would assume that the 6.5 feet will limit the interference.
Question: Will this work with the surface rt
Answer: Thank you for your inquiry. This product is operating system independent, so if a particular device has an HDMI out, the kit should work.
Question: can i have one transmitter and two or more recievers working together viewing the one transmitter at the same time?
Answer: Thank you for your inquiry. Unfortunately, due to bandwidth requirements, support for multiple receivers is not available. For multiple receivers, a wired extension/splitter solution may be the way to go.
If you would like, please feel free to give us a call at 1-877-586-6654 or via our online chat feature to discuss your project in greater detail.
Question: What is GW3DHDKIT Receiver output resolution?
Answer: Thank you for your inquiry,
In order for the GW3DHDKIT to deliver the best audio and video formats supported by both source displays, the kit reads the EDID information from both sources whenever a display is plugged in, unplugged, or turned on/of. You will see both TVs and/or monitors flash couple seconds in order to automatically adjust the "Best Common" resolution that all devices can handle.
To get the best resolution for a specific TV or monitor (i.e. 1080p 3D), you can also manually change the resolution from your video source or unplug the lower EDID devices then power cycle the kit and devices. For certain 3D Blu-ray players, you may need to eject and insert the 3D Blu-ray disc. Note, if your video source is not outputting the "best common" resolution, one of your TVs may not show any content or play audio only. Please refer to your devices' user manuals and the Aten GW3DHDKIT Quick Start Guide for further instructions.
The GW3DHDKIT receiver (and transmitter) supports the following resolutions with a PC or a Mac:
|640x480 @ 59.94 / 72.809Hz||VGA||YES|
|800x600 @ 60.317 / 72.188Hz||SVGA||YES|
|1024x768 @ 60 / 70.069Hz||XGA||YES|
|1280x768 @ 60 Hz||WXGA||YES|
|1280x1024 @ 60 Hz||SXGA||YES|
