Video/Audio/IR CAT5 Transmitter

HDC-VX-TXS

$100.00$77.92
Save $22.08
FREE Shipping on orders over $100
smartavi_madeinusa

HDC-VX allows the extension of Composite Video, Stereo Audio and InfraRed control signals via a single Category twisted pair cable using a unique method of transparent data transfer.
*Transmitter only.

Applications

  • Hotels
  • Cable TV Remote Control
  • Control Rooms
  • Remote On-Digital set top control
  • Sky box control extrension
  • Deal rooms
  • Point of Sale

Features

  • Uses easy to install, inexpensive CAT5/5e/6/7/8.
  • Output reaches up to 1000 feet (300m)
  • Supports PAL, NTSC and SECAM.
  • Video 100 MHz Bandwidth.
  • Video cable compensation (automatic).
  • Sends Composite Video Stereo Audio, IR and Power signals over CAT5.
  • Compatible with line level stereo audio signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Remote units come with buffered outputs.
  • Compact enclosure.
  • Optional power supply for remote unit.
  • Fully transparent path for all protocols and data transfers

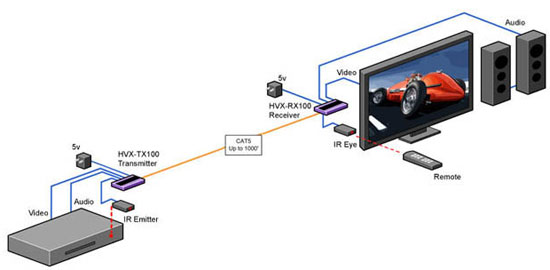

diagram

SmartAVI HDC_VX_TXS Transmitter Specifications

Mechanical
Height 0.88 in. (2.23 cm)
Width 3.75 in. (9.52 cm.)
Depth 2.75 in. (6.98 cm.)
Signal TypeNTSC/PAL/SECAM Compostive Video 1V p-p
Bandwidth100 MHz
Impedance75 Ohm
Connector RCA, Female
Power5x2.1 mm 5VDC1A
AV+IR over CAT5 UTP1000 ft
UPC / EAN Barcode icon
UPC 813280017787
EAN 0813280017787
