HDX576 Matrix Router Sync Card


The hot-swappable Sync Card provides a reference input and loop output so that switch connections can be made synchronously with an external reference or "house sync". All switch connection timing complies with SMPTE RP 168 and with SMPTE 274M depending on signal format.

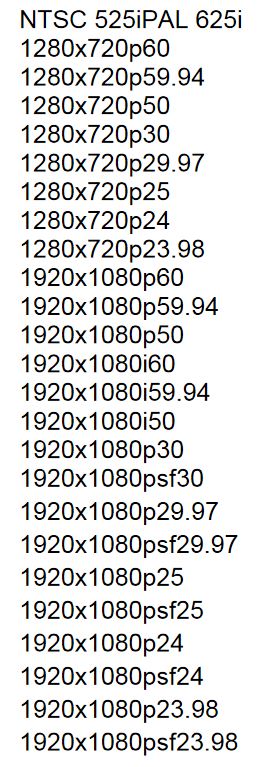

Sync Card format reference
