HDX576 Fiber/Coax Matrix Router Chassis


Thinklogical's HDX 576 router is designed for a wide range of video applications and provides the performance, resiliency and versatility required in pre-production, post-production and broadcast osettings. The HDX 576 is fully compliant with SMPTE standards and supports blackburst and tri-level synchronization.

Features & Benefits

  • Up to 576 Fiber Ports In and Out for 576 x 576 Non-Blocking Matrix Switching (16 x 16 Minimum)
  • Reference video input for synchronizing switching point is fully compliant to SMPTE "blackburst" and "tri-level" synchronization (RP-168)
  • Each Video Connection Supports 4 Gbps
  • Route NTSC/PAL, SDI, HD-SDI, 3G, Dual link HD-SDI
  • SMPTE 259M, 292M, 372M, 424M and 425 Level A and B compliant
  • Compatible with the Xtreme 3G+ Transmitters and Receivers
  • Controllable via LAN or Serial Connection
  • SNMP Support
  • Multicasting and Macros Supported
  • Control/Administration GUI Included
  • Unique hot pluggable optical (single-mode or multi-mode) or coaxial I/O modules
  • Hot Swappable, 16 Port I/O cards in a passive midplane chassis
  • Redundant, Hot-Swappable, and Current Sharing Power Supply Modules
  • Single, Hot-Swappable Fan Tray with Annunciator Port (for alarms)
  • Redundant Controller Card (optional)
  • Four Swappable Switch Cards

In the Box

  • HDX576 Chassis (includes 4 Power Modules, 1 Fan Tray Unit, and 1 Controller Card)
  • Power Cords - (4) PWR-000006-R (International connections may differ)
  • CAT5 Cable Assembly, 15 Feet - CBL000001-015FR
  • Product Manual CD
  • Product Quick Start Guide

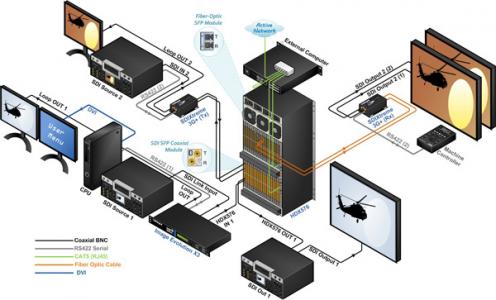

HDX576 Use Diagram
Rack SizeEIA 19" (48.26 cm)
Height45.5" (26RU)
Depth23" (including fiber management trays)
Ship Weight170 lb
Ports16 x 16 minimum - up to 576x 576
RequirementsAC Input: 100-240VAC, 47-63 Hz; Universal AC Power Supply
ConsumptionApproximately 1700 Watts Fully Loaded
In/OutSMPTE 259M, SMPTE 292M, SMPTE 372M, SMPTE 424M, SMPTE 425 level A and B;
Any optical signal between .05 Mb/s and 4 Gbp/s
Coax I/O ModulesDIN 1.0/2.3 or HD-BNC
Humidity5-95% RH non-condensing
Operating Temperature32°F - 122°F (0-50°C)
