4K HDBaseT 8x8 HDMI Matrix with POE

HDR-8X8-XTS

$4,999.00
FREE Shipping on orders over $100

The HDR-8x8-XT is an 8x8 matrix switch enhanced with HDBaseT technology. Users can send eight ultra-HD video sources to eight local displays over HDMI, as well as eight remote displays over CAT5e/6/7 cables up to 328 ft away when paired with receiver units**. Doubling as a transmitter extension unit, the HDR-8x8-XT sends 4K (3840x2160) resolution video further that standard matrix units and effectively cuts costs by utilizing inexpensive CAT5e/6/7 cabling. It also routes internet to remote smart TVs over HDBaseT and power to connected receivers through POE (Power-over-Ethernet).

**(supports HDX-POE and HDX-POE-PRO*, each sold separately)

Features & Benefits

  • Up to 4K (3840x2160 @30Hz) Resolution
  • (8) HDMI Input
  • (8) HDMI Local Output
  • (8) HDMI HDBaseT Output (over CAT5e/6/7)
  • Supports Power-over-Ethernet (POE)
  • HDBaseT signal extension up to 328 ft
  • Ethernet routing: connect output displays to internet via CAT5e/6/7 HDBaseT.
  • HDMI 2.0 & HDCP Compliant
  • Route RS-232 control to remote monitors
  • Supports bi-directional IR remote control
  • Supports TCP/IP Web Console control
  • EDID learning & management
  • Supports HDX-POE receivers: Video & IR extension (sold seperately)
  • Supports HDX-POE-PRO receivers: video, IR, RS-232, and Ethernet extension (sold separately)

Package Includes

  • (1) HDR-8x8-XT HDMI Matrix
  • (1) Power Cable (for internal power supply)
  • (1) Quick Start/Installation Guide

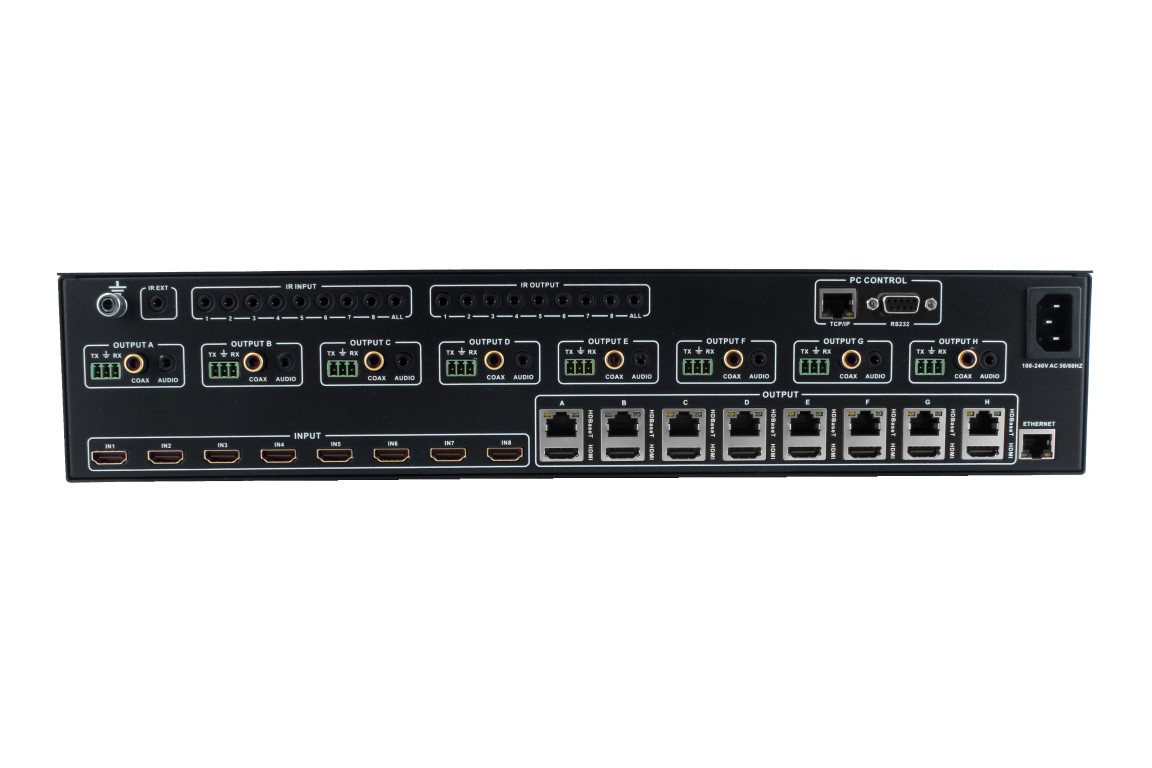

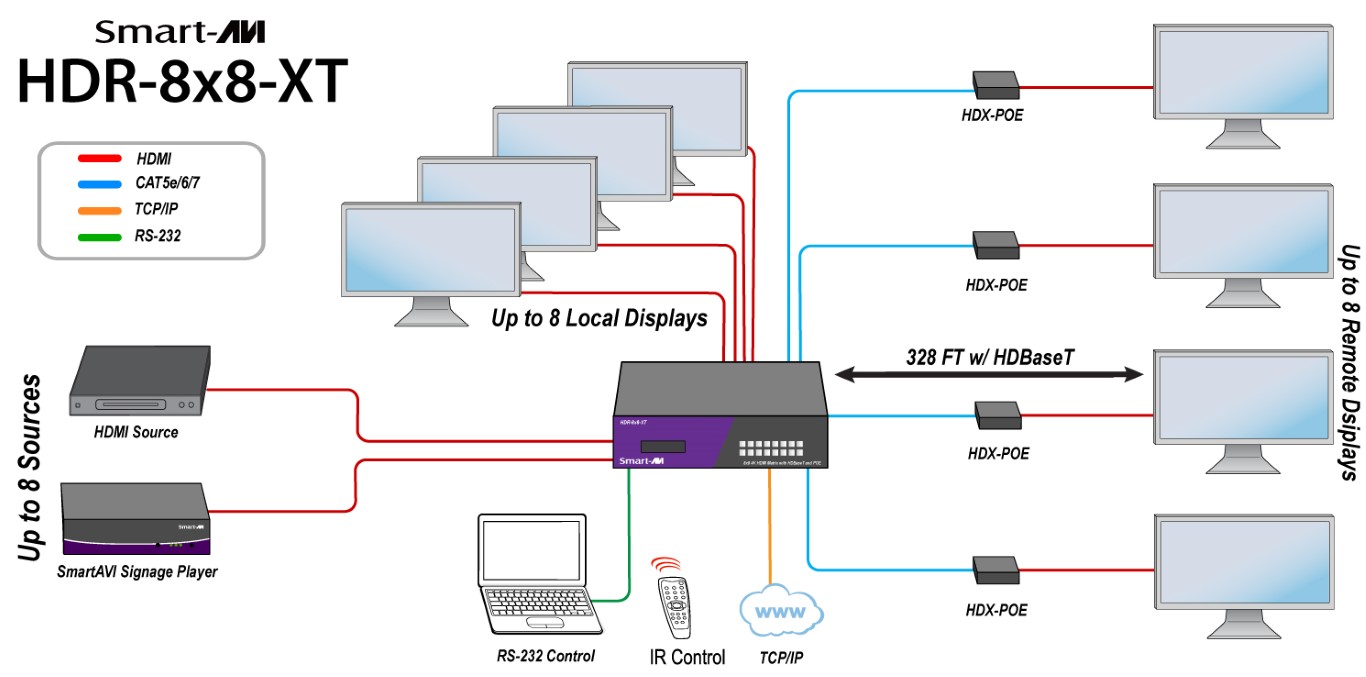

Back of Product Product use diagram
Video
FormatHDMI 1.4
Video Bandwidth1.2 Gbps
Input(8) HDMI
Output(8) HDMI, (8) CATx, (8) 3.5mm Stereo Jack, (8) Coaxial Audio
ResolutionsUp to 4K (3840x2160 @ 30Hz)
HDMI ConnectorType A 19-pin female
RJ-45WE/SS 8P8C
Audio Connectors3.5mm, Coaxial
Controls
Front PanelFront panel switching buttons
IRInfrared remote control
RS-232RS-232 Serial Commands
TCP/IPvia Ethernet-connected computer
Other
Power SupplyInternal 100-240 VAC/CCPWR06
Max Consumption100W
Dimensions17.3" W x 14.2" H x 3.5" D
Weight5.0 lbs
ApprovalsUL, CE, ROHS Compliant
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
HumidityUp to 90% RH, non-condensing
