SmartAVI 1 Port HDMI Extender System up to 150 feet

HDX-100S

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100

SmartAVI HDX-100S Contents:

The Smart-AVI HDX-100 is an innovative solution for extending any HDMI signal up to 150 feet away - be it a gaming console, Blueray player, computer, etc. - over CAT6 STP cabling to one local screen to one remote display for real-time monitoring of content. This is the perfect solution for broadcasting high-definition media easily and inexpensively from an HDMI source to a display screen for customers to view while keeping the source computer in a remote, secure location. With the HDX-100, you're able to monitor what's being shown on the remote display in real-time via a local display, allowing you to retain full control while ensuring only key personnel are able to access the local HDMI source. The HDX-100 is a compact, dynamic unit that is small and easily integrated into existing digital display networks such as those in a retail store or bar/lounge.

SmartAVI HDX-100 Features & Benefits:

  • Compact Transmitter/Receiver Units
  • Local HDMI Output
  • Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)
  • Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit
  • Bandwidth to 1.64Gps
  • Automatic DDC Learning from Local Monitor
  • Unit Operates Regardless of Local Monitor Connectivity
  • Distances up to 150 Feet using Cat6 STP Cabling
  • Compatible with all Operating Systems
  • Plug-and-Play - No Software Required

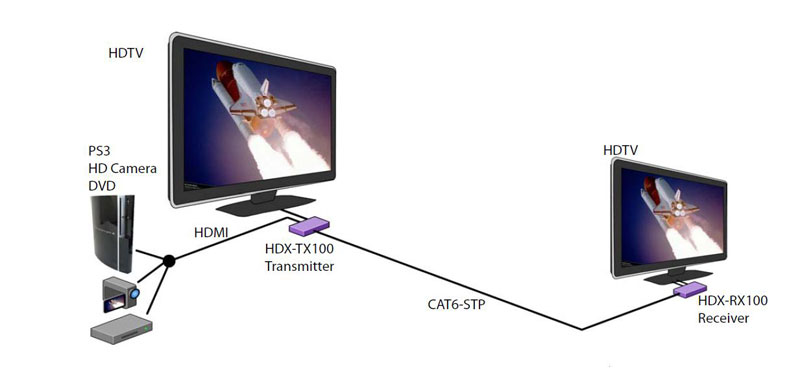

SmartAVI HDX-100 Application Diagram

SmartAVI HDX-100 Application Diagram

SmartAVI HDX-100 Applications:

  • Retail Locations
  • Bars/Lounges
  • Showroom Floors
  • Convention Booths
  • Hotel/Resort/Check-in Counters
  • Corporate/Educational Demonstrations
  • Houses of Worship
  • Medical Facilities
  • Recording/Editing Studios

 SmartAVI HDX-100 Specifications:

Mechanical
Width2.75 in. (6.99 cm.)
Height1 in. (2.54 cm.)
Depth3.875 in. (9.84 cm.)
Video
Resolution1920x1200;
480p/720i/720p/1080i/1080p
Bandwidth1.65Gps
ConnectorHDMI Connector x 1
Environmental
Storage Temperature-20-60 °C (-4-140 °F)
UPC / EAN Barcode icon
UPC 813280021784
EAN 0813280021784
Question: will this work well if the Output Hdmi is split to two displays?
Answer: Thank you for your inquiry. According to the manufacturer, you should be able to split the signal after extension with little signal loss. This of course is dependent on the quality of the signal that is sent, the distance traveled and the splitter in use.

An alternative to splitting the signal after transmission would be something like the HDX-400 transmitter (https://www.kvm-switches-online.com/hdx-400s.html) paired with a couple HDX-RX100 (https://www.kvm-switches-online.com/hdx-rx100s.html) receivers.
