SmartAVI 1 Port HDMI Transmitter Unit

HDX-TX100S

$159.00$123.90
Save $35.10
FREE Shipping on orders over $100

The HDX-TX100S is the transmitter unit. The complete HDX-100 extender system is the HDX-100.

The Smart-AVI HDX-TX100 is an innovative solution for extending any HDMI signal up to 150 feet away - be it a gaming console, Blueray player, computer, etc. - over CAT6 STP cabling to one local screen to one remote display for real-time monitoring of content. This is the perfect solution for broadcasting high-definition media easily and inexpensively from an HDMI source to a display screen for customers to view while keeping the source computer in a remote, secure location. With the HDX-TX100, you're able to monitor what's being shown on the remote display in real-time via a local display, allowing you to retain full control while ensuring only key personnel are able to access the local HDMI source. The HDX-TX100 is a compact, dynamic unit that is small and easily integrated into existing digital display networks such as those in a retail store or bar/lounge.

SmartAVI HDX-TX100 Features & Benefits:

  • Compact Transmitter/Receiver Units
  • Local HDMI Output
  • Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)
  • Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit
  • Bandwidth to 1.64Gps
  • Automatic DDC Learning from Local Monitor
  • Unit Operates Regardless of Local Monitor Connectivity
  • Distances up to 150 Feet using Cat6 STP Cabling
  • Compatible with all Operating Systems
  • Plug-and-Play - No Software Required

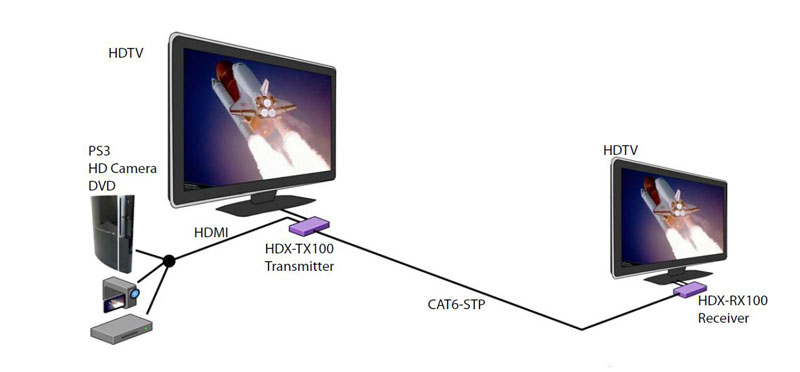

SmartAVI HDX-TX100 Application Diagram

SmartAVI HDX-TX100 Application Diagram

SmartAVI HDX-TX100 Applications:

  • Retail Locations
  • Bars/Lounges
  • Showroom Floors
  • Convention Booths
  • Hotel/Resort/Check-in Counters
  • Corporate/Educational Demonstrations
  • Houses of Worship
  • Medical Facilities
  • Recording/Editing Studios

 SmartAVI HDX-TX100 Specifications:

Mechanical
Width2.75 in. (6.99 cm.)
Height1 in. (2.54 cm.)
Depth3.875 in. (9.84 cm.)
Video
Resolution1920x1200;
480p/720i/720p/1080i/1080p
Bandwidth1.65Gps
ConnectorHDMI Connector x 1
Environmental
Storage Temperature-20-60 °C (-4-140 °F)
UPC / EAN Barcode icon
UPC 813280018128
EAN 0813280018128
