HDMI Receiver via IP Over CAT5

The HDX-200-RX-S is the receiver side of the HDX-200-S HDMI extender Over-IP system. Add up to eight HDX-200-RX receivers to create a point-to-multipoint HDMI extender/splitter system. The HDX-200-RX HDMI Receiver requires the HDX-200-TX HDMI transmitter to function. The full system, with one transmitter and one receiver, can be found here: HDX-200-S

HDX-200 HDMI extender Over-IP System Features

• Extends HDMI Over CAT5 up to 500 ft: Ensures high-quality image transmission over distances up to 500 ft using cost-effective CAT5 cabling.
• Multi-Point Distribution: Splits and extends HDMI signals to up to 8 receivers, increasing the extension range by an additional 500 feet with an Ethernet switch.
• High-Performance Video: Supports resolutions up to 1920×1080 at 60Hz, ensuring clear and vibrant image quality.
• Advanced Compression: Utilizes H.265 compression technology to deliver high-quality images with minimal latency.
• Flexible Connectivity: Operates in a direct 1-to-1 setup or a 1-to-many configuration using a standard Ethernet switch.
• Automatic DDC Learning: Automatically configures itself by learning display data from the connected monitor for optimal resolution settings.
• Universal Compatibility: Functions seamlessly with all operating systems.
• Compact Design: Small footprint allows for easy integration into any setup without spatial constraints.
• Plug-and-Play Installation: Ready to use out of the box, requiring no complicated setup. (requires the purchase of the HDX-200-TX)

Perfect for simple Digital Signage applications - Managing a multi-screen digital signage solution requires some important foresight regarding the signal path to those informative and attractive displays. Particularly when it comes to properly scheduled, updated and managed content being displayed, it's much more efficient to keep all of the digital signage hardware in one central location and to extend the video signals out from there. That means signal extension is an important part of a smart digital signage solution, and the HDX-200 gives users the flexibility they want and need to place their digital signage screens in the right locations to maximize their effectiveness.

The HDX-200 is the perfect solution for broadcasting high-definition media easily and inexpensively for Retail Locations, Bars/Lounges, Showroom Floors, Convention Booths, Hotel/Resort Check-In Counters, Corporate/Educational Demonstrations, Houses of Worship, Medical Facilities, Recording/Editing Studios, and more!

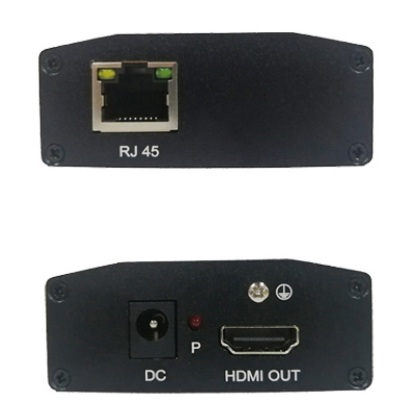

The part number HDX-200-RX-S is the receiver side of the HDX-200 HDMI extender system and includes one receiver and one power supply. Please note: the HDX-200-RX requires one transmitter to function.

The HDX-200 system set up in a point-to-multipoint splitter application using one HDX-200-TX HDMI transmitter, three HDX-200-RX HDMI receiver units, and a network switch.

HDX-200-S HDMI Extender Specifications

What's in the box of the HDX-200-RX-S HDMI Receiver

• (1) HDX-200-RX - HDMI Receiver over CAT5 up to 500 feet
• (1) PS5VDC2A - Power Supply
• (1) HDX-200 Quick Start Guide (Download from SmartAVI)

UPC 657477054885
EAN 0657477054885
