HDMI Extender/Splitter via IP Over CAT5

Extend FHD HDMI up to 500 feet to one or multiple locations using standard CAT5 cabling with an Ethernet switch

The HDX-200 HDMI Extender/Splitter revolutionizes your audiovisual setups, extending pristine HDMI signals up to 500 ft through economical CAT5 cabling. Its compact design ensures it can be conveniently placed anywhere, preserving the aesthetics of your space while delivering unmatched performance. Whether operating in a point-to-point setup or through an Ethernet switch, the HDX-200 is designed to split and extend your HDMI signals to up to 8 receivers without any loss in signal quality. This flexibility makes it perfect for a variety of professional and commercial environments. This plug-and-play solution is ready to deploy with automatic settings adjustment for various display resolutions and compatibility across all operating systems. Keep your primary equipment out of sight by utilizing the HDX-200 to reliably manage your HDMI connections remotely.

• Extends HDMI Over CAT5 up to 500 ft: Ensures high-quality image transmission over distances up to 500 ft using cost-effective CAT5 cabling.
• Multi-Point Distribution: Splits and extends HDMI signals to up to 8 receivers, increasing the extension range by an additional 500 feet with an Ethernet switch.
• High-Performance Video: Supports resolutions up to 1920×1080 at 60Hz, ensuring clear and vibrant image quality.
• Advanced Compression: Utilizes H.265 compression technology to deliver high-quality images with minimal latency.

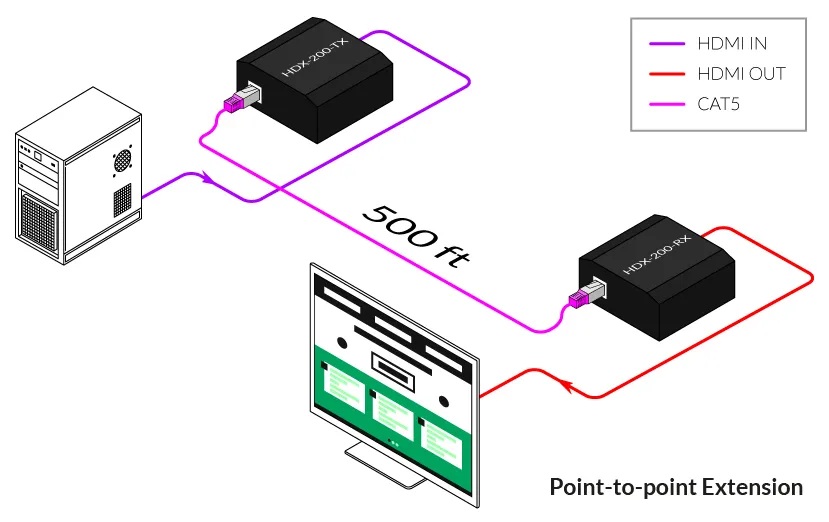

• Flexible Connectivity: Operates in a direct 1-to-1 setup or a 1-to-many configuration using a standard Ethernet switch.
• Automatic DDC Learning: Automatically configures itself by learning display data from the connected monitor for optimal resolution settings.
• Universal Compatibility: Functions seamlessly with all operating systems.
• Compact Design: Small footprint allows for easy integration into any setup without spatial constraints.
• Plug-and-Play Installation: Ready to use out of the box, requiring no complicated setup.

Perfect for simple Digital Signage applications - Managing a multi-screen digital signage solution requires some important foresight regarding the signal path to those informative and attractive displays. Particularly when it comes to properly scheduled, updated and managed content being displayed, it's much more efficient to keep all of the digital signage hardware in one central location and to extend the video signals out from there. That means signal extension is an important part of a smart digital signage solution, and the HDX-200 gives users the flexibility they want and need to place their digital signage screens in the right locations to maximize their effectiveness.

The HDX-200 is the perfect solution for broadcasting high-definition media easily and inexpensively for Retail Locations, Bars/Lounges, Showroom Floors, Convention Booths, Hotel/Resort Check-In Counters, Corporate/Educational Demonstrations, Houses of Worship, Medical Facilities, Recording/Editing Studios, and more!

The part number HDX-200-S is the full HDX-200 HDMI extender system part number and includes one transmitter, one receiver and power supplies. Additional receivers are available for purchase to expand the system from a point-to-point extender system to a point-to-multipoint splitter system.

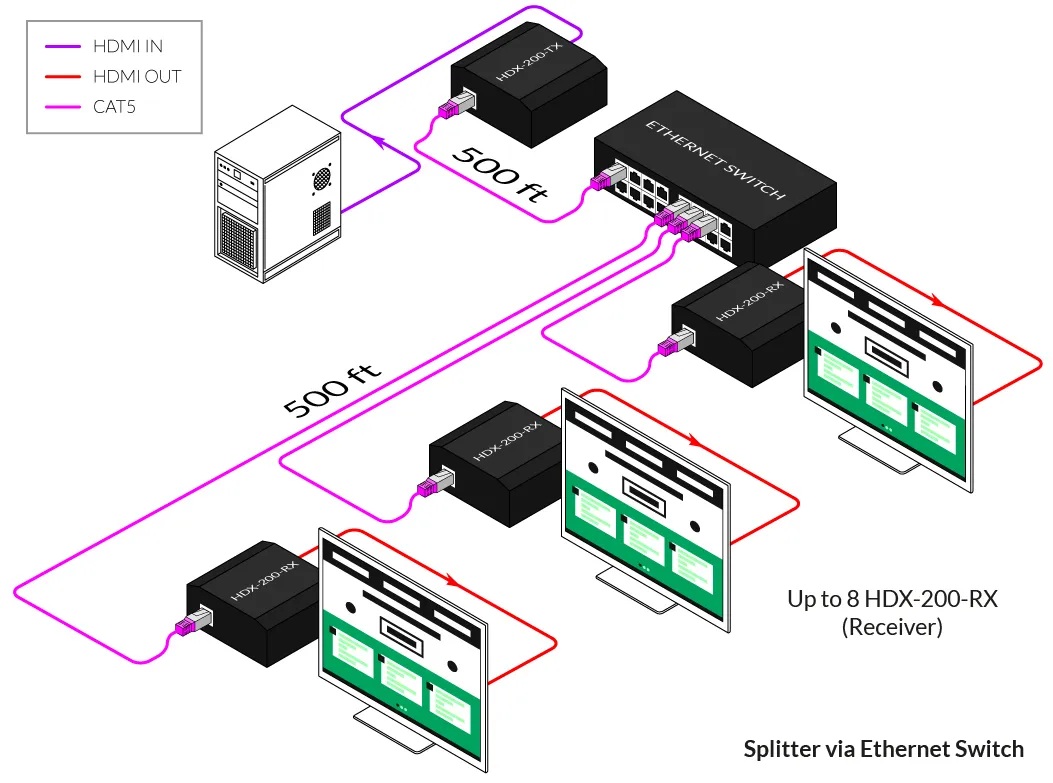

The HDX-200 system set up in a point-to-multipoint splitter application using one HDX-200-TX HDMI transmitter, three HDX-200-RX HDMI receiver units, and a network switch.

HDX-200 HDMI Extender Specifications

What's in the box of the HDX-200-S HDMI Extender System

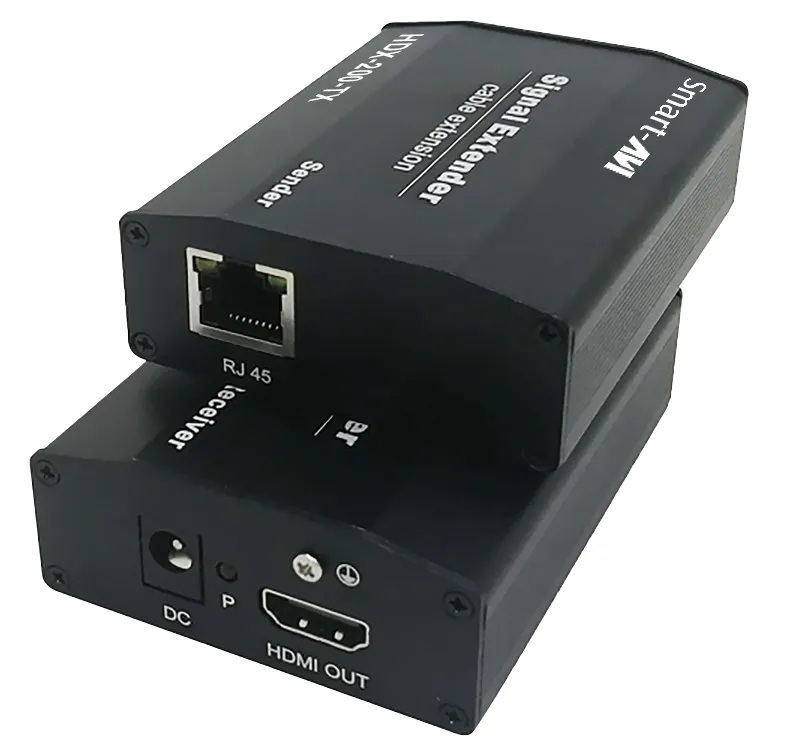

• (1) HDX-200-TX - HDMI Transmitter over CAT5 up to 500 feet
• (1) HDX-200-RX - HDMI Receiver over CAT5 up to 500 feet
• (2) PS5VDC2A - Power Supplies
• (1) HDX-200 Quick Start Guide (Download from SmartAVI)

UPC 657477106423
EAN 0657477106423
