17" Rack Mount Keyboard Drawer w/ High Brightness LCD & 8-Port PS/2 KVM Switch



Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

NOTE: Option C comes with a cherry keyboard with trackball
17" 1.5U Rackmount High Brightness LCD Monitor w/8 Port KVM (comes with 8 6' cables)

HRKP series is a combination of keyboard, mouse and high brightness monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, and built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

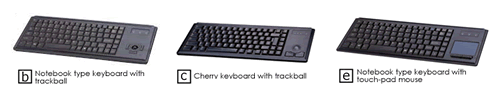

The HRKP117-801 model comes with the following keyboard options:

Rackmount LCD Monitor Keyboard Options

AH HRKP117-801 Features

  • 1.5U 17" LCD screen
  • Rear rackmount bracket included.
  • Standard D-sub 15-pin VGA input connector.
  • Provides the longest lamp life possible for all brightness levels.
  • Power saving feature for prolonging the life of LCD panel
  • High brightness and contrast enhances display panel
  • Unique mechanical design to maximize rack mountable space.
  • Slide rails have fixed position to prevent movement of keyboard.
  • Lightweight aluminium construction - with a black anodize finish.
  • Built in On Screen Display controlled by integral membrane switches.
  • Brightness more than 1000cd/m2
  • Adjustable mounting brackets from 390mm to 790mm (front to rear 19" mounts)

AH HRKP117-801 Specifications

  Panel Samsung 17" LCD Panel
  Screen Type TFT
  Display Area 337.92(H) x 270.34(V) mm
  Contrast Ratio 420 : 1
  Viewing Angle 120 ° (H) x 100 ° (V) (Typ.)
  Resolution 1280 x 1024
  Pixel pitch 0.264(H) x 0.264(W) mm
  Response Time Tr=5ms, Tf=20ms (Typ.)
  Brightness 1000 cd/m2
  Panel Color 16.7M
  Back Light 4 CCFTs
(Cold Cathode Fluorescent tube)
  Horizontal Synchronization 64 - 80 KHz (Typ.)
  Vertical Synchronization 60-75 Hz (Typ.)
  Input Signal Analog RGB 0.7Vp-p
  Power Management VESA DPMS
  OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save
  External Connection
  Power Input 12V/5A DC adapter
  Video Input 15-pin D-Sub connector
  Product dimension 43.9(W) x 6.6(H) x 60(D)cm
  Packing dimension 73.5(L) x 57.5(W) x 18(H)cm
  Net / gross weight

27.55 lb / 44.1 lb
12kg / 20kg
