Aten PCI IP Card

IP9001

$795.95$745.00
Save $50.95

Discontinued
Recommended replacement: Aten IP8000
Alternative options: Contact Us

ATEN PCIP Card (IP9001)
The IP9001 is a PCI card that provides remote access to your server should it go down. With the IP9001 you can check the event log, the health of your machine, reset it, or power it on and off. Also, with the virtual CD Rom and floppy enabled, you can remotely install new software, upgrade your firmware or restore your computer's operating system. All the features you need to manage your server easily from your office or anywhere where you can connect to the internet via web browser interface. With the kind of protection that the IP9001 provides, you can be sure that your equipment is always running, always healthy and always secure.

ATEN PCIP Card (IP9001) Features and Benefits:

  • PCI card
  • Independent VGA on card
  • Assessable from anywhere in the world
  • Hardware health monitoring
  • Supports up to 64 accounts
  • Virtual CD Rom: Remote software install and upgrade
  • USB 2.0 Hub
  • Support SNMP traps: substantial savings of network and agent resources by eliminating the need for frivolous SNMP requests
  • Independent Power source: not affected when system power failure
  • Host-side OS support: Windows 2000/2003/XP, Redhat 8.0 and above.
  • Out of band operation (with optional modem module)
  • Independent control

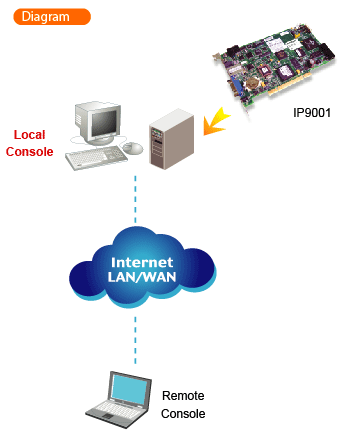

IP9001 Function Diagram
ATEN PCIP Card (IP9001) Function Diagram


ATEN PCIP Card (IP9001) Requirements:
Compatible with following mother boards:  1st Mainboard -- FR33E , Abit --BW7, American Megatrend -- 825, Asus -- A7M266-D, Dell -- Diammond 8450, Dell -- Gecko 1300, Dell -- Iguana 2400, Dell -- Napa 6400, Dell -- Opal 4400, Intel -- D850G, Intel -- Plumas, MegaRUM II -- 774, MSI -- MSTK7N420P, Super Micro -- P3TDER, Super Micro -- P3TDLE, Super Micro -- P3TDE6 Tran -- S2688

ATEN PCIP Card (IP9001) Package Content:
1 x IP9001 Card
1 x USB Cable
1 x Custom Made Feature Connector Cable
1 x Power Cord
1 x AC Adapter
1 x Software
1 x User Manual
1 x Quick Start Guide
1 x Warranty registration card

ATEN PCIP Card (IP9001) Specifications:

Power Supply
. PCI 3.3V
. PCI 5V
. Wall Adapter 6V
. 900ma/hr Lion Battery
Processor SOC
. 16K D-Cache
. 400 MIPS MMU
. 16K I-Cache
. 32-Bit 266Mhz
Weight
Unit Wt. 0.28 LB. (130 g.)
Hardware Monitor PCI Voltages, Card Inernal Voltage, Temperature
Modem + DAA Plug-In Socket Modem 56K
Power Consumption 15W(Max.)
RTC Time Clock Chip + Lithium Coin Cell
Flash Memory 16 MB, 16-Bit
USB Device Conntroller For CDROM USB 1.1 Device Controller
USB HUB I2C Controller USB 1.0 HUB
LAN Connection 10/100 MBit SOC Integrated
USB Device Controller for Floppy USB 1.1 Device Controller
CPU Memory 32 MB PC-133 MHz SDRAM
Frame Memory 8 MB, 32-Bit SDRAM
USB Device Controller For Mouse/Keyboard USB 1.1 Device Controller
VGA Controller ATI RAGE XL with 8 MB, 32-Bit SDRAM with DVI Output PCI 2.2 32-Bit, 66 MHz
