Remote Management PCI Card - IP Gateway

IP8000

$420.00

Discontinued
For upgrade or replacement options: Contact Us

 The IP8000 is a PCI card implementation of a control unit that provides "over-IP" access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications

Features:

  • Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world
  • Virtual media via USB 2.0 data transmission
  • Remote power control and reset support
  • Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing
  • Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
  • External authentication support: RADIUS; LDAP; LDAPS; MS Active Directory
  • Web-based Windows and Java implementations allow the server to be controlled from any browser
  • Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems
  • Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
  • Supports 10Base-T, 100Base-T
  • Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions
  • Bandwidth optimization via grayscale and video quality setting
  • Advanced security features include password protection and advanced encryption technologies
  • Secure 128-bit SSL encryption
  • Enable/disable browser operation
  • Three level authentication - Multi - Administrators, Users, Viewers
  • Event logging
  • Remote fi rmware upgrading
  • Host-side OS support- Windows ; Redhat 7.1 and above; FreeBSD, Novell

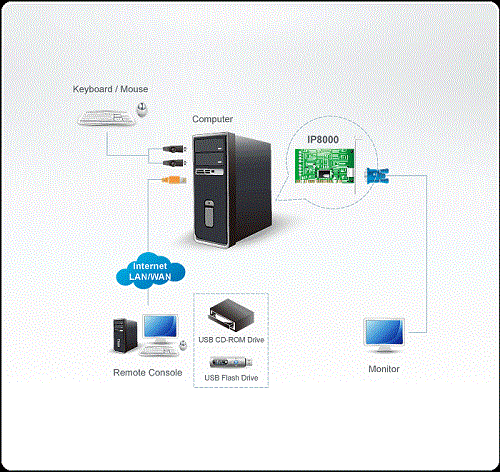

Diagram

diagram



Specifications:

Physical Properties
Dimensions  6.1x 4.7x 0.8 inch
Environmental
Operating Temperature  32-104°F
Storage Temperature -4-140°F
Humidity 0 ~ 80% RH, NC
Console Connectors(Keyboard, Mouse, and Monitor)  1 x SPHD-18 Female (Green)
Video Resolution  1600 x 1200@60Hz; DDC2B
Connectors
Video Output 1 x HDB-15 Female (Blue)
LAN Connection  1 x RJ-45 Female
LEDs
Link  1 (Green)
10/100 mpbs  1 (Green / Orange)
Power Connections  1 x DC Jack
Power Consumption  DC5V, 1.2A
UPC / EAN Barcode icon
UPC 672792112270
EAN 0672792112270
