DVI-D/Audio/PS2 CAT6 STP Transmitter

KDX-TX200S

$250.00$194.81
Save $55.19
FREE Shipping on orders over $100
smartavi_madeinusa

The KDX-200 extends any DVI-D signal, keyboard, mouse and audio up to 200 feet with two CAT5 cables. *Transmitter only.

product

Features

  • Top Image Quality at all Resolutions.
  • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance.
  • User selectable: DCC-Information used from the remotely located monitor, from the locally located monitor or from an internal DDC table.
  • Basic device to remotely locate monitor, keyboard/mouse and sound.
  • Supports PS2-keyboard/mouse.
  • Maximum screen resolution on all distances: 250 ft w/ STP CAT5e.
  • Compatible with all operating systems.
  • Compatible with all major KVM switches.
  • Rack mount options (19"): Mount up to 4 devices in a 19"/1U rack mount kit. This saves expensive rack space.
  • Supports stereo sound

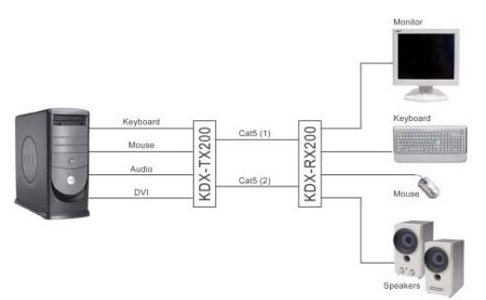

diagram

SmartAVI KDX-200 Transmitter Specifications

Mechanical
Height 0.82 in. (2.08 cm)
Width 6.25 in. (15.87 cm.)
Depth6.12 in. (15.54 cm.)
Weight0.4 lbs
Resolution1920x1200 @ 60 Hz
KeyboardMinidin color coded, supports PS2 compatible
MouseMinidin color coded, PS/2, wheelmouse, 5 button mouse
Audio Signal TypeStereo Audio
Bandwidth15MHz, 0db
Impedance100 Phm
Connector3.5 mm mini jack, Female
Power Supply5VDC
SystemsWindows 2000, XP and 2003 Linux
UPC / EAN Barcode icon
UPC 813280022118
EAN 0813280022118
