Aten Hideaway LCD Console with 16-Port KVMP Switch

KL3116M

$3,499.95$2,430.40
Save $1,069.55

Discontinued
Recommended replacement: Raloy RD119
Alternative options: Contact Us

The Aten KL3116M is a control unit that allows access to multiple computers from a single KVM (keyboard, monitor, and mouse), console. A single KL3116 can control up to 16 computers. As many as 31 additional units can be daisy chained to each other, so that up to 512 computers can all be controlled from a KL3116M.

The dual interface supports both PS/2 and USB keyboard/mouse data transfer from switch to the computer.

The Aten KL3116M offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, LCD monitor, and touchpad in a 1U Hideaway housing. The LCD module and keyboard module slide separately - you can see the video display, for example, while the keyboard and touchpad are conveniently out of the way.

Access to any computer connected to the installation is easily accomplished either by means of a powerful mouse driven OSD (On Screen Display) menu system, or by entering Hotkey combinations from the keyboard. A convenient Auto Scan feature also permits automatic scanning and monitoring of the activities of all computers running on the installation one by one.

Additional console port allows the second user access remotely or locally. Work with ATEN's IP access unit (CN5000), you can control attached computers anywhere around the world.

KL3116M Features:

  • Integrated KVM console with 17" LCD monitor in a Hideaway housing
  • Space saving technology - up to two consoles (one bus) control up to 16 computers
  • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
  • Dual interface - supports PS/2 and USB keyboards and mice in the computer ports
  • Hideaway housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual slide - LCD monitor slides independently of the keyboard/touchpad
  • Supports external PS/2 mouse
  • USB peripheral support for attached computers
  • Conveniently located station and port selectors with 7-segment LED displays to quickly switch to target computers
  • Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
  • OSD tree structure makes finding and managing computers easy
  • Daisy chain up to 31 additional KVM switches to control up to 512 computers
  • Auto Scan Mode enables continuous monitoring of user-selected computers
  • Security - Administrator/User password authorization for enhanced security protection; Administrator access rights synchronized between master and slave stations
  • Two-level password security - only authorized users can view and control computers
  • Supports one Administrator and four User accounts with separate profiles
  • Superior video quality - supports resolutions up to 1280 x 1024 @ 75Hz

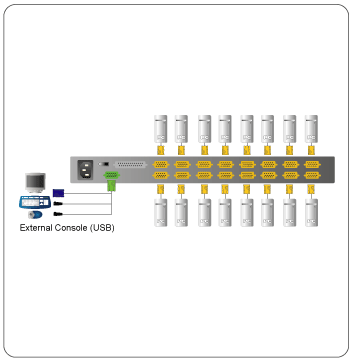

KL3116M Diagram


Aten KL3116M Requirements:

  • The following equipment must be installed on each computer:

    • VGA, SVGA or Multisync card; Maximum lcd resolution is 1280 x 1024 at 75 Hz.

    • Either 6-pin mini-din PS/2 mouse and PS/2 keyboard port or USB port are required.

    • ATEN KVM to USB computers:

      • 2L-5202U -6'

      • 2L-5203U- 10'

      • 2L-5205U - 16"

    • ATEN KVM to PS/2 computers:

      • 2L5202P - 6'

      • 2L5203P - 10'

      • 2L5206P - 20'

    • ATEN KVM to ATEN KVM (Daisy Chaining):

      • 2L1700 - 2'

      • 2L1701 - 6'

Aten KL3116M Package Content:

  • 1 x KL3116M Hideaway 17" LCD KVMP Switch with Standard Rack Mounting Kit

  • 1 x Custom PS/2 KVM Cable Set

  • 1 x Custom USB KVM Cable Set

  • 1 x Firmware DB9 Upgrade Cable

  • 1 x Console cable

  • 1 x upgrade Long Rack Mounting Kit

  • 1 x Power Cord

  • 1 x User Manual

  • 1 x Quick Start Guide

  • 1 x Registration Card



Aten KL3116M Specification :

Master Carton Width 26.4 in. (67.0 cm)
Depth 32.6 in. (82.7 cm)
Height 5.5 in. (14.0 cm)
ConnectorsPower 1 x 3prong AC socket ( black)
Unit Package Dimensions Width 31.9 in (80.9 cm)
Depth 22.3 in (56.7 cm)
Height 4.3 in (10.9 cm)

Computer Connections


Daisy Chain or Cascading 512
Direct16
LEDs
Station ID 2 digits 7 segment orange at keyboard pad module

On Line

16 x green@ keyboard touch module

Power On 1 x blue at front panel
Console Connectors
Remote Console2 x 6 pin mini-DINF Female for keyboard and mouse, 1 x HDB-15 Female for video
Flash ROM Upgrade 1 xRJ-11 female (black)
Keyboard, Mouse, and Monitor 1 x SPHD-15M (Yellow) at rear
Mouse additional 1 x mini-din-6 F (Green)
Power
Voltage AC 84V ~ 240V
Housing
CaseMetal
Weight Unit Pack Wt. 38.6 lb. (17.5 kg)
Master Carton Wt. 38.6 lb. (17.5 kg)
 Unit Dimensions Height 1.7 in. (4.4 cm.), 1U
Width 19.0 in. (48.2 cm.)
Depth 27.8 in. (70.5 cm.)
CPU Connectors
Keyboard, Mouse, and Monitor 16 x SPHD-15 Female, (yellow)
Scan Interval1~255 Sec
Console Connection1 built-in, 1 additional
Humidity 0 - 80% RH
Security 2-level password security
Daisy ChainDB-25
Power Consumption 40W
Operating Temperature 32F~122F (0C~50C)
Port Selection OSD, Hotkey, Push Buttom
Storage Temperature -4F~140F (-20C ~ +60C)
