DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Receiver (only)


Save $67.35
FREE Shipping on orders over $100

The SmartAVI KLX-500-V2-RX-S Receiver is ideal in preconfigured work environments, because it allows users to employ the preexisting LAN infrastructure commonly available in office environments. KLX-500 provides 500 feet of connectivity using the Cat5e/6 cables used in LAN infrastructure. Users can add additional extenders to break the distance barriers for KVM extension over DVI and VGA. In addition to KVM operation, this compact unit also transmits audio.

The KLX-500-V2-RX-S compresses data to utilize Cat5e/6 cables, but users will see no degradation of signal when using one gigabit Internet connections and up. For users utilizing preexisting LAN connections, implementing a one gigabit switch allows for signal extension with full resolution. Users with smaller bandwidth will experience compressed signal if they decide to forgo the additional switch.



  • Extends KVM operation by 500 feet via LAN (Cat5e/6 cables)
  • Chainable for thousands of feet of extension
  • Supports DVI and VGA monitors
  • Supports full USB emulation
  • Audio input and output
  • Dual control operation, both local and remote use of KVM
  • Supports 1080p up to 1920x1080 resolution at 60Hz
  • IR (Infrared) remote enabled
  • Plug-and-Play ready
  • No software or driver required

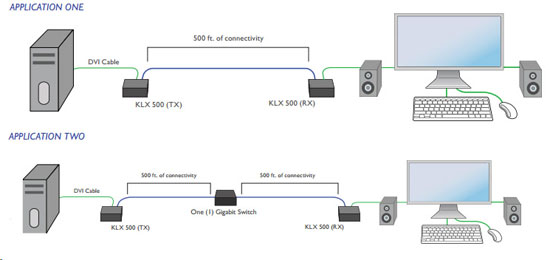

Application Diagram

SmartAVI KLX-500-V2-RX-S Specifications

Height 1.4 in. (3.55 cm)
Width 7 in. (17.78 cm.)
Depth 3.3 in. (8.38 cm.)
Weight0.6 lbs
HDTV Resolutions480p, 720p, 1080i, 1080p/60Hz/48bit
TV Resolutions480i

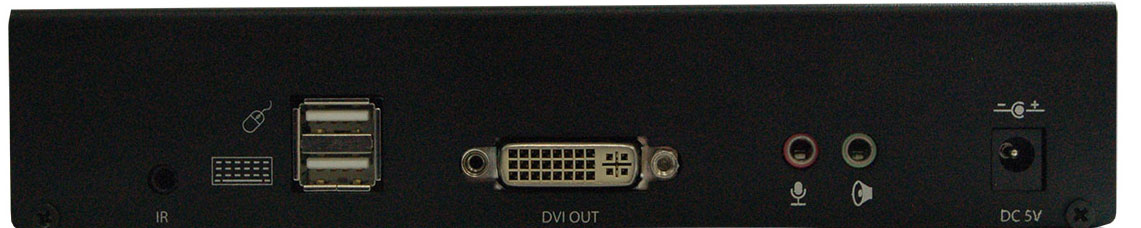

Video Output Interface (RX)DVI-D, 2 USB Tyle A Female
Video Output Cable LengthUp to 40 ft
Audio FormatStereo
Audio Input/Output Interface 3.5 mm Jack Socket (Female)
IR Signal Type38 KHz
PowerExternal 100-240 VAC/5VDC2A @ 10W

The KLX-500-V2-RX-S is the Receiver system including the KLX-500-V2-RX and a power supply. The KLX-500-V2-RX-S is formerly known as the KLX-500-V2-RXS, KLX-500-RXS, or KLX-500-RX-S.

UPC / EAN Barcode icon
UPC 813280022125
EAN 0813280022125
