2U 17" 4K Triple-display Rack Console Drawer
MRK-K17-3
Save $672.00
The CyberView MRK-K17-3 is a 2U Triple-display 17" 4K UHD rack console drawer is designed for Command and Control Systems which demand quick deployment of side by side displays.
4K 17" displays satisfy the increasing demand for superior graphics and image clarity. 2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRK-K17-3 drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.
MRK-K17-3 Features and Benefits
- DP + HDMI + VGA video inputs ( per display )
- 4K UHD (3840 x 2160) native resolution / 1920 x 1080 & 1920 x 1200 resolution support
- 2U 22" short depth design
- Light weight only 56.5 lbs / 25.7 kgs
- Rugged construction for mobility & durability
- Built-in solid bearing slide rails
- Built-in dual stereo speaker ( per display )

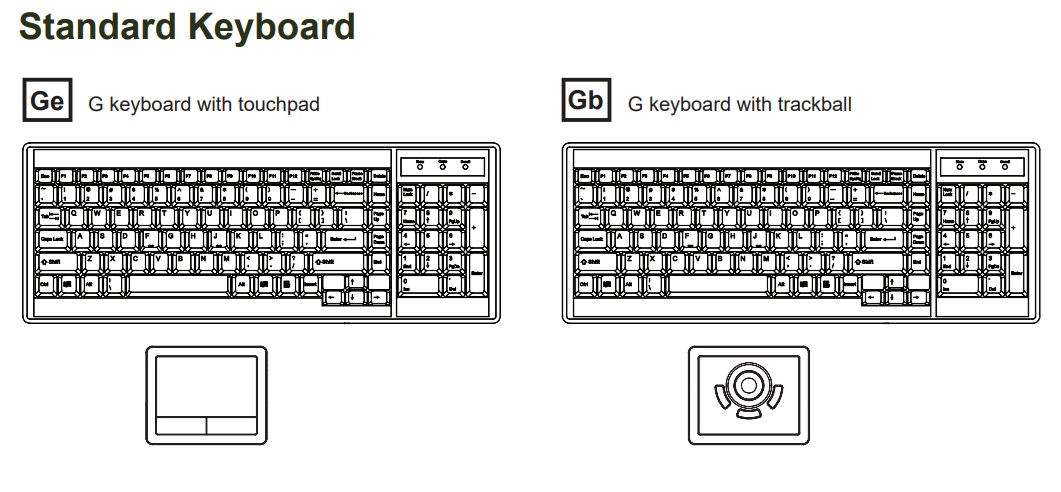

- 104-key keyboard with either touchpad or trackball
- Fits 24" ~ 36" rack via adjustable mounting brackets
- 2-year standard warranty ( upgradable up to 5 years )
MRK-K17-3 Options
- Front USB hub port for device access
- 3G / HD / SD-SDI Broadcast-grade input
- Sealed silicone IP keyboard with either touchpad or trackball
- DC power : 12V / 24V / 48V / 125V / 250V
- Military CAC USB card reader
- MIL power input connector ( MS3470W8-33P )
- Touchscreen : Projected Capacitive ( 10-pt ) / Resistive ( 1-pt )
MRK-K17-3 Package Contents
- (1) MRK-K17-3 Console Drawer
- (3) 6ft DisplayPort cable
- (3) 6ft USB A to A cable
- (1) Power adapter & cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
MRK-K17-3 Resources
MRK-K17-3 Brochure (PDF)
MRK-K17-3 Manual (PDF)
CyberView MRK-K17-3 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 3.5 x 17.4 x 21.7 in ( 88 x 441.6 x 550 mm ) | ||||||
| Package Dimensions (H x W x D) | 7.8 x 22.8 x 26.9 in ( 197 x 580 x 683 mm ) | ||||||
| Net Weight | 56.5 lb ( 25.7 kg ) | ||||||
| Gross Weight | 68.4 lb ( 31.1 kg ) | ||||||
| Chassis Color | Dark | ||||||
| Chassis Materials | Steel | ||||||
| Mounting | |||||||
| Rack Mounting | 2U | ||||||
| Mounting Depth | 21.65 to 31.1 inch ( 550 to 790 mm ) | ||||||
| Console Ports | |||||||
| Video Input | DisplayPort / HDMI / VGA | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 17.3" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 | ||||||
| Brightness (cd/m2) | 400 | ||||||
| Colors | 16.7 M, 8-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Response time ( ms ) | 16 ms | ||||||
| Dot pitch ( mm ) | 0.0995 | ||||||
| Display area ( mm ) | 382.12H x 214.94V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 50,000 | ||||||
| Audio Option | |||||||
| Speaker | Built-in 2x 2W dual stereo speaker ( per display ) | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | MIL-STD-810H, Method 502.7 & 501.7: -20 to 65°C Degree | ||||||
| Storage Temperature | MIL-STD-810H, Method 502.7 & 501.7: -30 to 65°C Degree | ||||||
| Operating Humidity | MIL-STD-810H, Method 507.6: 10~90%, non-condensing | ||||||
| Operating Altitude | MIL-STD-810H, Method 500.6-i-500.6-8: 10,000 ft | ||||||
| Non-operating Altitude | MIL-STD-810H, Method 500.6-i-500.6-8: 30,000 ft | ||||||
| Shock/Vibration | MIL-STD-810H, Method 516.8 & 514.8: Procedure VI, 50G @11ms | ||||||
| Regulatory Compliance | |||||||
| EMC | CE/ EMC EN55032/ EN55035 | ||||||
| Safety | CE/ LVD EN62368 | ||||||
| Environment | RoHS 3 & REACH & WEEE |

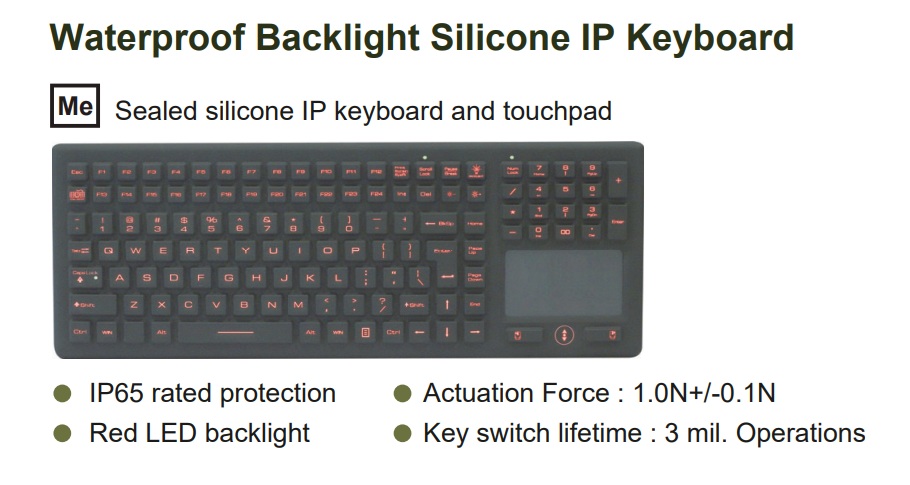

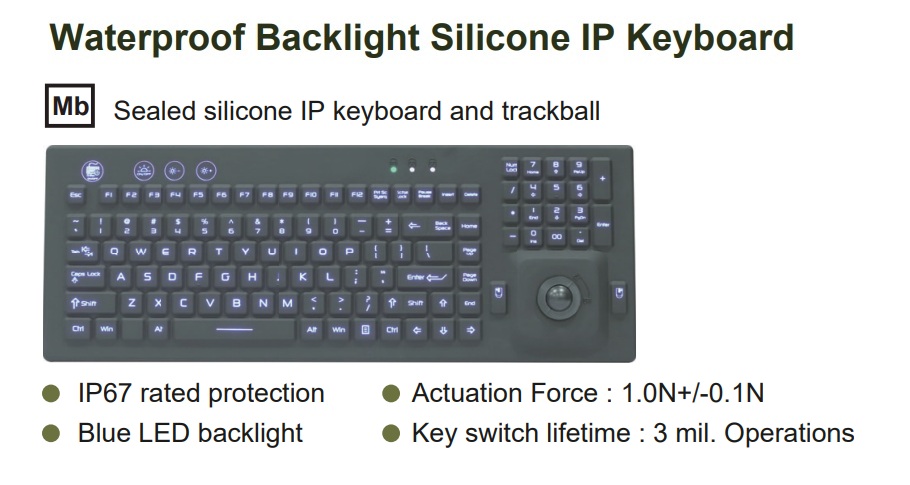

This page covers part numbers MRK-F17e-3 for the touchpad model and MRK-F17b-3 for the trackball version as well as the MRK-F17Me-3 IP65 rated sealed silicone Red-LED backlight illuminated keyboard and touchpad and MRK-F17Mb-3 IP67 rated sealed silicone Blue-LED backlight illuminated keyboard and trackball.
