2U 17" 4K Dual-display Rack Console Drawer
MRK-K17e-2L
Save $501.00
| Series | Model |
|---|---|
1U LCD Console Drawer | |
| K117 | 1U 17" 4K |
| F117 | 1U 17" 1080p FHD |
| X117 | 1U 17" 1920 x 1200 |
| L120 | 1U 20" 1600 x 1200 |
| W119 | 1U 19" 1440 x 900 widescreen |
| RKP117 / RKP119 | 1U 17" / 19" 1280 x 1024 |
| N117 / N119 | 1U 17" / 19" 1280 x 1024 with two point lock |
| RKP7 / RKP9 | 1U 17" / 19" 1280 x 1024 with optical Mouse |
Large LCD | |
| K123 | 1U 23" 4K |
| F121 | 1U 21" 1080p FHD |
| X124 | 1U 24" 1920 x 1200 |
Dual Slide LCD | |
| DK117 | 1U dual slide 17" 4K |
| DF117 | 1U dual slide 17" 1080p FHD |
| DX117 | 1U dual slide 17" 1920 x 1200 |
| D117 / D119 | 1U dual slide 17" / 19" 1280 x 1024 |
| RKP2417K | 2U dual slide short depth 17" 4K |
| RKP2417F | 2U dual slide short depth 17" 1080p FHD |
| RKP2417 / RKP2419 | 2U dual slide short depth 17" / 19" 1280 x 1024 |
Ultra Short Depth | |
| K1417 | 1U ultra short depth 17" 4K |
| F1417 | 1U ultra short depth 17" 1080p FHD |
Multi-display | |
| MRK-K17 | 2U dual or triple-display 17" 4K |
| MRK-F17 | 2U dual or triple-display 17" 1080p FHD |
| MRK-19 | 2U dual or triple-display 19" 1280 x 1024 |
High Brightness LCD | |
| HF117 | 1U 17" 1080p FHD high brightness |
| H117 / H119 | 1U 17" & 19" 1280 x 1024 high brightness |
Sun LCD Solution | |
| S117 / S119 | 1U SUN solution 17" & 19" 1152 x 900 |
| NS117 / NS119 | 1U SUN solution 17" & 19" 1152 x 900 with two point lock |
The CyberView MRK-K17-2 (MRK-K17e-2L - left hinged mount/touch pad, MRK-K17e-2R - right hinged mount/touch pad) is a 2U Dual-display 17" 4K UHD rack console drawer is designed for Command and Control Systems which demand quick deployment of side by side displays.
4K 17" displays satisfy the increasing demand for superior graphics and image clarity. 2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRK-K17-2 drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.
MRK-K17-2 Features and Benefits
- DisplayPort, HDMI and VGA video inputs ( per display )
- 4K UHD (3840 x 2160) native resolution / 1920 x 1080 & 1920 x 1200 resolution support
- 2U 22" short depth design
- MIL-STD-810H standard
- Light weight only 49 lbs / 22 kgs
- Rugged construction for mobility & durability
- Built-in solid bearing slide rails
- Built-in dual stereo speaker ( per display )

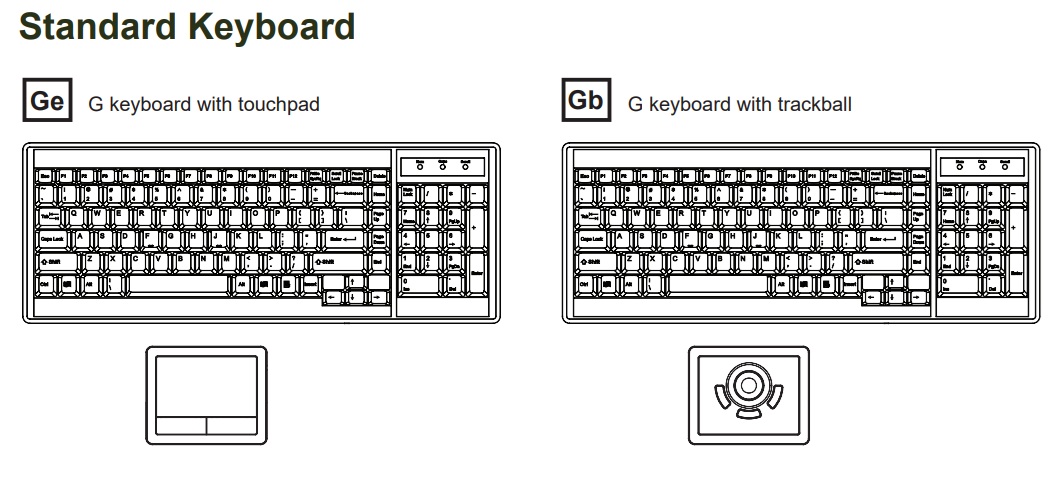

- 104-key keyboard with either touchpad or trackball
- Fits 24" ~ 36" rack via adjustable mounting brackets
- 2-year standard warranty ( upgradable up to 5 years )
MRK-K17-2L / MRK-K17-2R Options
- Front USB hub port for device access
- 3G / HD / SD-SDI Broadcast-grade input
- Sealed silicone IP keyboard with either touchpad or trackball
- USB keyboard & mouse selector
- Military CAC USB card reader
- MIL power input connector ( MS3470W8-33P )
- DC power : 12V / 24V / 48V / 125V / 250V
- LCD protection : Anti-glare, AR & EMC glass
- Touchscreen : Projected Capacitive ( 10-pt ) / Resistive ( 1-pt )
MRK-K17-2 Package Contents
- (1) MRK-K17-2 Console Drawer
- (2) 6ft DisplayPort cable
- (2) 6ft USB A to A cable
- (1) Power adapter & cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
MRK-K17-2 Resources
MRK-K17-2 Brochure (PDF)
MRK-K17-2 Manual (PDF)
CyberView MRK-K17-2L / MRK-K17-2R Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 3.5 x 17.4 x 21.7 in ( 88 x 441.6 x 550 mm ) | ||||||
| Package Dimensions (H x W x D) | 7.8 x 22.8 x 26.9 in ( 197 x 580 x 683 mm ) | ||||||
| Net Weight | 46.2 lb ( 21 kg ) | ||||||
| Gross Weight | 57.2 lb ( 26 kg ) | ||||||
| Chassis Color | Dark | ||||||
| Chassis Materials | Steel | ||||||
| Mounting | |||||||
| Rack Mounting | 2U | ||||||
| Mounting Depth | 21.65 to 31.1 inch ( 550 to 790 mm ) | ||||||
| Console Ports | |||||||

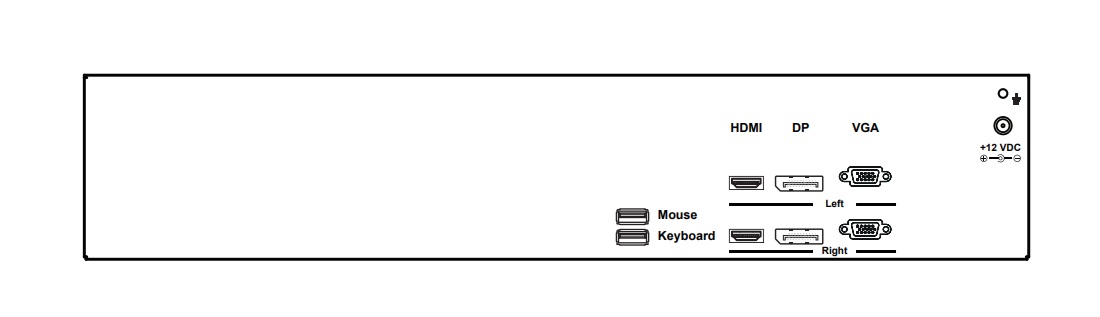

| Video Input | DisplayPort / HDMI / VGA | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 17.3" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 | ||||||
| Brightness (cd/m2) | 400 | ||||||
| Colors | 16.7 M, 8-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Response time ( ms ) | Max. 30 ms | ||||||
| Dot pitch ( mm ) | 0.0995 | ||||||
| Display area ( mm ) | 382.12H x 214.94V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 20,000 | ||||||
| Audio Option | |||||||
| Speaker | Built-in 2x 2W dual stereo speaker ( per display ) | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | -20 to 65°C Degree | ||||||
| Storage Temperature | -30 to 65°C Degree | ||||||
| Operating Humidity | 10~90%, non-condensing | ||||||
| Operating Altitude | 10,000 ft | ||||||
| Non-operating Altitude | 30,000 ft | ||||||
| Shock/Vibration | Procedure VI, 50G @11ms | ||||||
| Regulatory Compliance | |||||||
| EMC | CE/ EMC EN55032/ EN55035 | ||||||
| Safety | CE/ LVD EN62368 | ||||||
| Environment | RoHS 3 & REACH & WEEE |

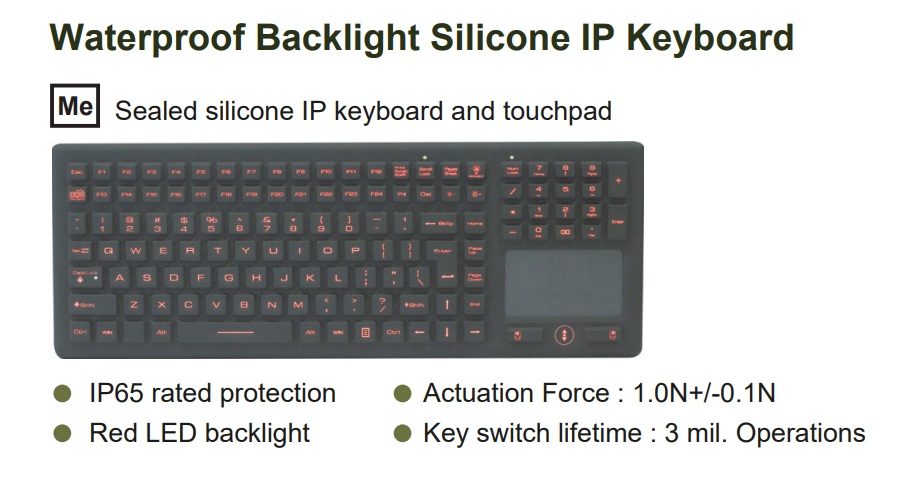

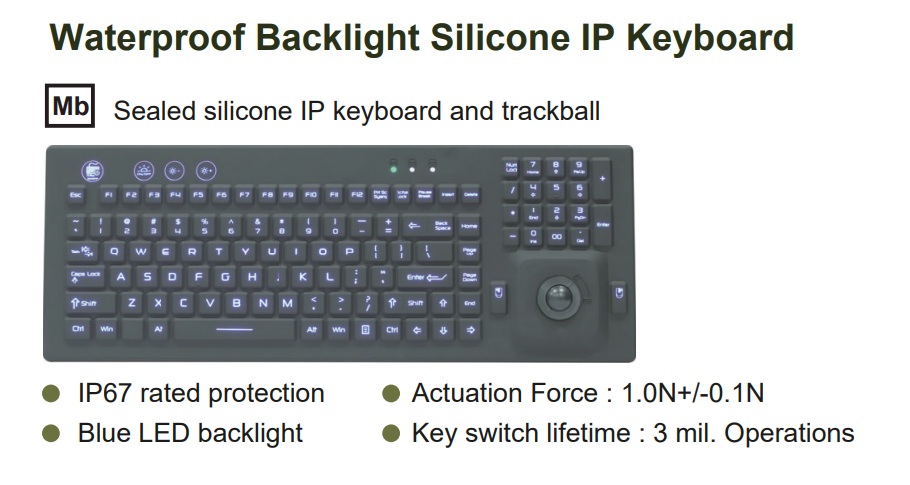

This page covers part numbers MRK-K17e-2L & MRK-K17e-2R for the touchpad models and MRK-K17b-2L & MRK-K17b-2R for the trackball versions as well as the MRK-K17Me-2L / MRK-K17Me-2R IP65 rated sealed silicone Red-LED backlight illuminated keyboard and touchpad and MRK-K17Mb-2L / MRK-K17Mb-2R IP67 rated sealed silicone Blue-LED backlight illuminated keyboard and trackball variants.
Answer: Thank you for your inquiry,

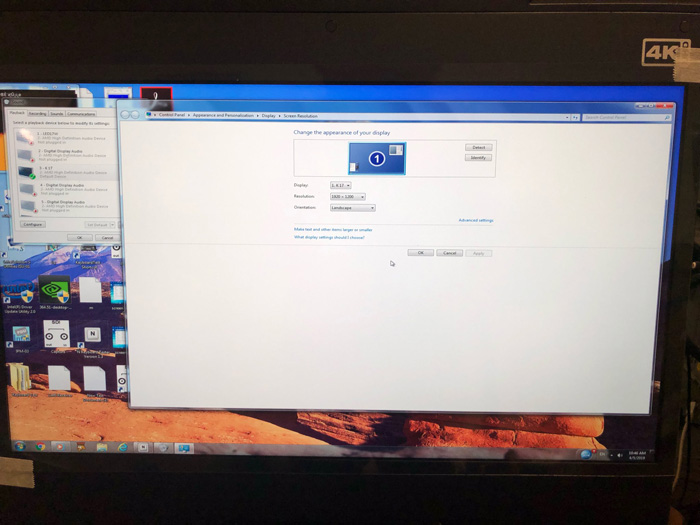

1920 x 1200 looks crystal clear and full screen on the MRK-K17-2 (see picture below).
If the source is 16:9, i.e. 1920 x 1080 resolution, the aspect ratio would stay the same as the MRK-K17.
If the source is 16:10, i.e. 1920 x 1200 resolution, the MRK-K17 would fit the video source to the screen similarly to connecting a laptop to a TV with a different aspect ratio.
There is no need a for a chip or software based scaler as the resolution can be adjusted by a built-in AD board.
Please let us know if there is anything else we can help you with!
Question: How far beyond the mounting location can the keyboard and monitors extend?
Answer: Thank you for your inquiry,
The travel distance from parking position to full extension of the MRK-K17-2 drawer, as well as the full MRK-series, is 5".
Please let us know if there is anything else we can help you with!
