16-Port Nodegrid Serial Console Plus Core Edition w/ 5G Cellular Modem and Dual DC Power Inputs
ZPE-NSCP-T16R-CORE-DDC-5G
Save $301.00
The Nodegrid™ ZPE-NSCP-T16R-CORE-DDC-5G 16-port Serial Console Plus - Core Edition with dual-SIM 5G cellular modem and DC power inputs is the data center's next-generation serial console server. The ZPE-NSCP-T16R-CORE-DDC-5G provides essential serial console functionality for secure remote access and power management to all Legrand, Raritan, and Server Technologies rack PDUs with failover to a cellular network for extra piece of mind. The ZPE-NSCP-T16R-CORE-DDC-5G offers fast, secure, and reliable out-of-band access to servers, networks, storage, power, and other serially-connected devices for faster problem resolution.
Industry-Leading Remote Access and Security On A Budget
The ZPE-NSCP-T16R-CORE-DDC-5G delivers comprehensive console server features for common remote access use cases. Budget-conscious buyers can deploy the ZPE-NSCP-T16R-CORE-DDC-5G to enable robust remote access to the IT stack while benefiting from the industry's most secure out-of-band and centralized management platform. Whether for new installations or replacing end-of-life console servers from popular vendors, this 16-port Serial Console server with DC power inputs and cellular failover makes remote troubleshooting safe and simple, so IT staff can keep services online.
- Reduce CAPEX and OPEX expenses with a consolidated, extensible solution and automated management
- Reduce downtime and trips to remote locations with instant access to your full IT stack
- Minimize MTTR and downtime expenses with secure, centralized remote device access & control
- Increase site reliability with open, industry-standard hardware and easy-to-use software
Why Nodegrid Serial Console Core Edition?

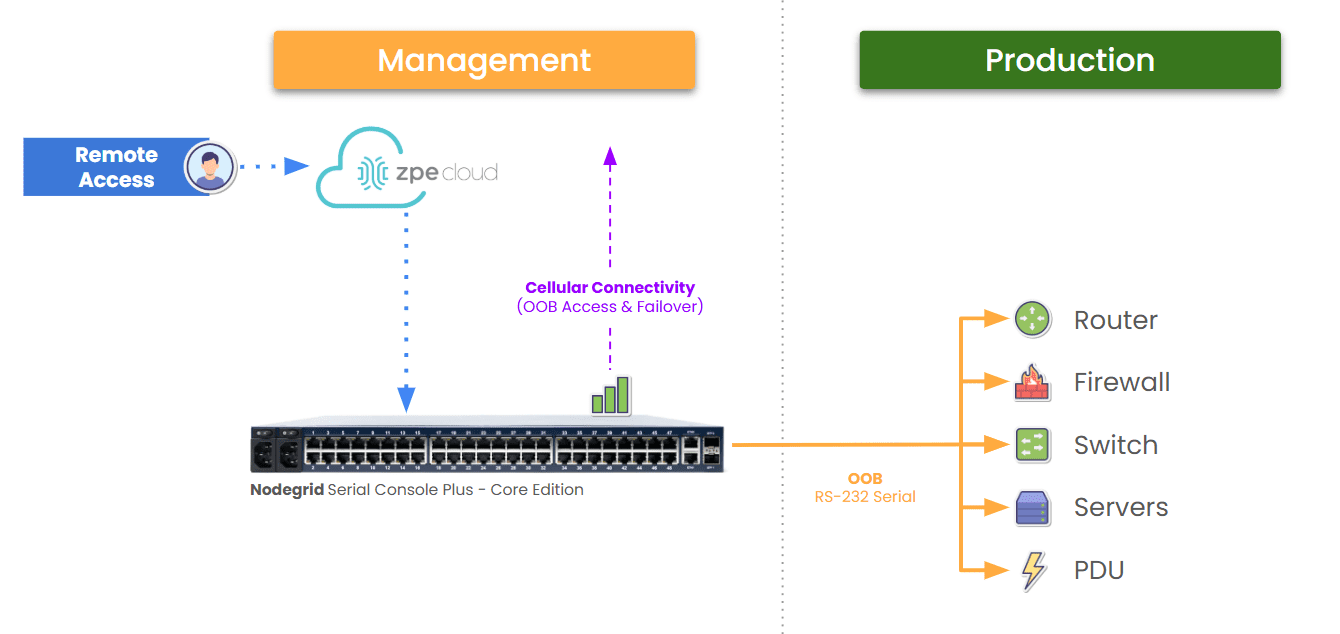

The Nodegrid Serial Console Plus - Core Edition (NSCP Core Edition) is ideal for addressing common break-fix use cases in data centers, colocations, and branch offices. IT admins use this to gain secure, low-level remote access to the entire IT stack and thereby eliminate the need for truck rolls. With up to 48 ports, optional 5G cellular, and security-in-layers design, the NSCP Core Edition is a powerful and resilient replacement for traditional console server solutions.

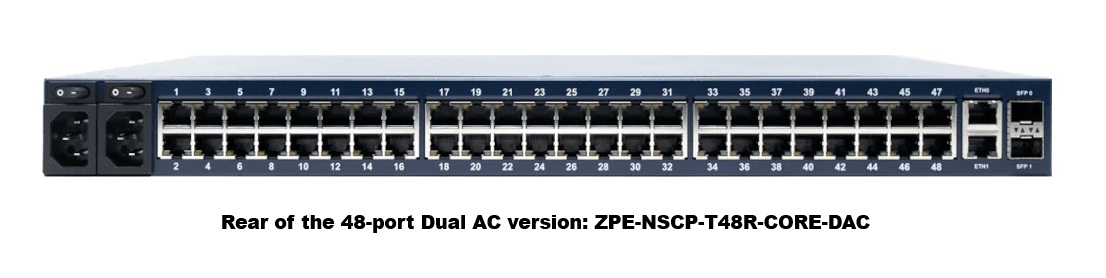

Back of the 48-port version (NSCP-T48R-CORE-DAC)
The ZPE-NSCP-T16R-CORE-DDC-5G is the direct replacement for the Raritan Dominion SX II DSX2-16-DC + 4G. Get the same dependable SX II features, now with Nodegrid's advanced security & flexibility.
ZPE-NSCP-T16R-CORE-DDC-5G Package Contents
- (1) ZPE-NSCP-T16R-CORE-DDC-5G: ZPE Nodegrid Serial Plus - Core Edition. 16-port Cisco Rolled, 4-Core CPU, 4GB DDR4, 21GB SSD, 2 SFP, 2 GbE, 2 USB 3.0, 5G Cellular Modem, Dual DC Power.
- (2) Rack Mount Ears w/ Screws
- (1) Console Cable and Adapter
- (1) User Guide
- (1) Warranty Card - 2 Years
Nodegrid Serial Console Core Edition Resources & Support
ZPE Systems NSCP-CORE Datasheet (PDF)Nodegrid Serial Console Plus - Core Edition - Hardware Installation Guide
Migrating from Raritan's Dominion SX II to ZPE Systems
ZPE Systems ZPE-NSCP-T16R-CORE-DDC-5G Specifications
| CPU | Intel x86_64 Quad-Core |
| Memory & Storage | 4 GB of DDR4 DRAM, 32 GB SSD |
| Interfaces | 16 x RS-232 serial ports on RJ45 @ 230,400 bps max/port 2 x SFP+ (10Gb) and 2 x Ethernet (10/100/1000) interfaces on RJ45 1 x RS-232 serial console port on RJ45 2 x USB 3.0 Host on Type A connector 1 x 5G Modem Slot |
| Accessibility | 2 x SFP+ Ethernet ports and 2 x Gigabit Ethernet ports with Multiple Routing Table and failover to 5G modem with Dual SIM |
| Networking | IPv4 / IPv6 Support VLAN, LACP, LLDP support |
| Managed Power Devices | ServerTech and Raritan Rack PDU's |
| Sensors | Support for a wide range of USB sensors |
| Software Specifications | |
| Port Access | Direct access by port name, TCP port, device name and IPv4/IPv6 100+ simultaneous sessions Port sharing Command line interface (CLI) Port custom field support, port icon configuration, port search Break-over SSH support |
| System Management | Web GUI management portal, command line interface (CLI), SNMP, RESTful API Zero Touch Provisioning (ZTP) via LAN/DHCP, WAN/ZPE Cloud, USB for configuration and firmware updates Multiple and customizable user levels of access SNMPv1,v2 and SNMPv3-v1 IPv4/IPv6 Orchestration Integration and Automation: ZPE Cloud, RESTful Remote Procedure Call (RPC, gRPC) |
| Access Protocols | HTTPS, SSHv2; optional HTTP, Telnet and SSHv1 |
| Data Logging & Notifications | Local port buffering: 20 MB per port Local, NFS, Syslog, offline data logging Time stamp and rotation for data logging Event destination: Local, Syslog, Email, ZPE Cloud Notification: Local, Syslog, Email, ZPE Cloud |
| Security | Hardened device with BIOS protection, TPM 2.0, UEFI Secure Boot, Signed OS X.509 SSH certificate support, 4096-bit encryption keys Selectable cryptographic protocols for SSH and HTTPS (TLSv1.3,TLSv1.2, TLSv1.1, TLSv1) Selectable cypher suite levels: high, medium, low, custom Local, AD/LDAP, RADIUS, TACACS+, Kerberos, authentication SAML 2.0 support via Duo, Okta, Ping Identity, ADFS Two-factor authentication with RSA and DUO Local backup-user authentication support User-access lists per port Group/Role-Based Authorization: AD/LDAP, RADIUS, TACACS+ Fine grain and role-based access control Firewall: IP packet and security filtering, IP forwarding support MD5 / SHA System Configuration Checksum System event logging to file, Syslog, email, ZPE Cloud Custom security settings Strong password enforcement |
| Operating System | Built-in x86-64bit Nodegrid OS |
| Infrastructure Specifications | |

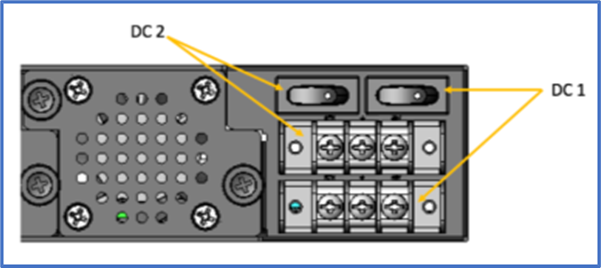

| Power | 40V-63 VDC dual power input (redundant) Dual 3-wire DC terminal blocks Power consumption 45 W typical |
| Physical | Front-Rear mounting brackets Size (L x W x H): 443 x 312 x 43 mm (17.4 x 12.3 x 1.7 in), 1U Weight: 5.265 kg (11.6 lb), depending on options Shipping weight: 2 8.745 kg (19.3 lb) Shipping (L x W x H): 533 x 497 x 209 mm (21 x 19.6 x 8.3 in) |
| Environmental | Operation: 0 to 60° C (32 to 140° F), 5-95% RH, non-cond. Storage: -20 to 67° C (-4 to 153° F), 5-95% RH, non-cond. |
| Warranty | Two Years |
