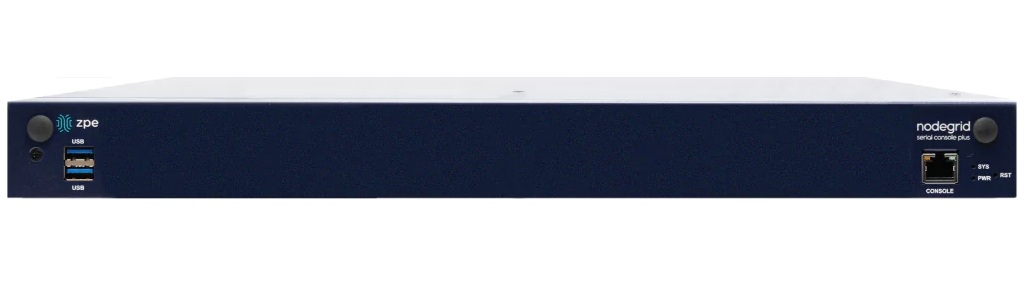

16-Port Nodegrid Serial Console Plus Core Edition w/ Analog Modem and Dual DC Power Inputs
ZPE-NSCP-T16R-CORE-DDC-AM
Save $260.05
The Nodegrid™ ZPE-NSCP-T16R-CORE-DDC-AM 16-port Serial Console Plus - Core Edition with analog modem and dual DC power inputs is the data center's next-generation serial console server. The ZPE-NSCP-T16R-CORE-DDC-AM provides essential serial console functionality for secure remote access and power management to all Legrand, Raritan, and Server Technologies rack PDUs with failover to PTSN (Public Switched Telephone Network) via an analog modem for extra piece of mind. The ZPE-NSCP-T16R-CORE-DDC-AM offers fast, secure, and reliable out-of-band access to servers, networks, storage, power, and other serially-connected devices for faster problem resolution.
Industry-Leading Remote Access and Security On A Budget
The ZPE-NSCP-T16R-CORE-DDC-AM delivers comprehensive console server features for common remote access use cases. Budget-conscious buyers can deploy the ZPE-NSCP-T16R-CORE-DDC-AM to enable robust remote access to the IT stack while benefiting from the industry's most secure out-of-band and centralized management platform. Whether for new installations or replacing end-of-life console servers from popular vendors, this 16-port Serial Console server with analog modem and DC power inputs makes remote troubleshooting safe and simple, so IT staff can keep services online.
- Reduce CAPEX and OPEX expenses with a consolidated, extensible solution and automated management
- Reduce downtime and trips to remote locations with instant access to your full IT stack
- Minimize MTTR and downtime expenses with secure, centralized remote device access & control
- Increase site reliability with open, industry-standard hardware and easy-to-use software
Why Nodegrid Serial Console Core Edition?

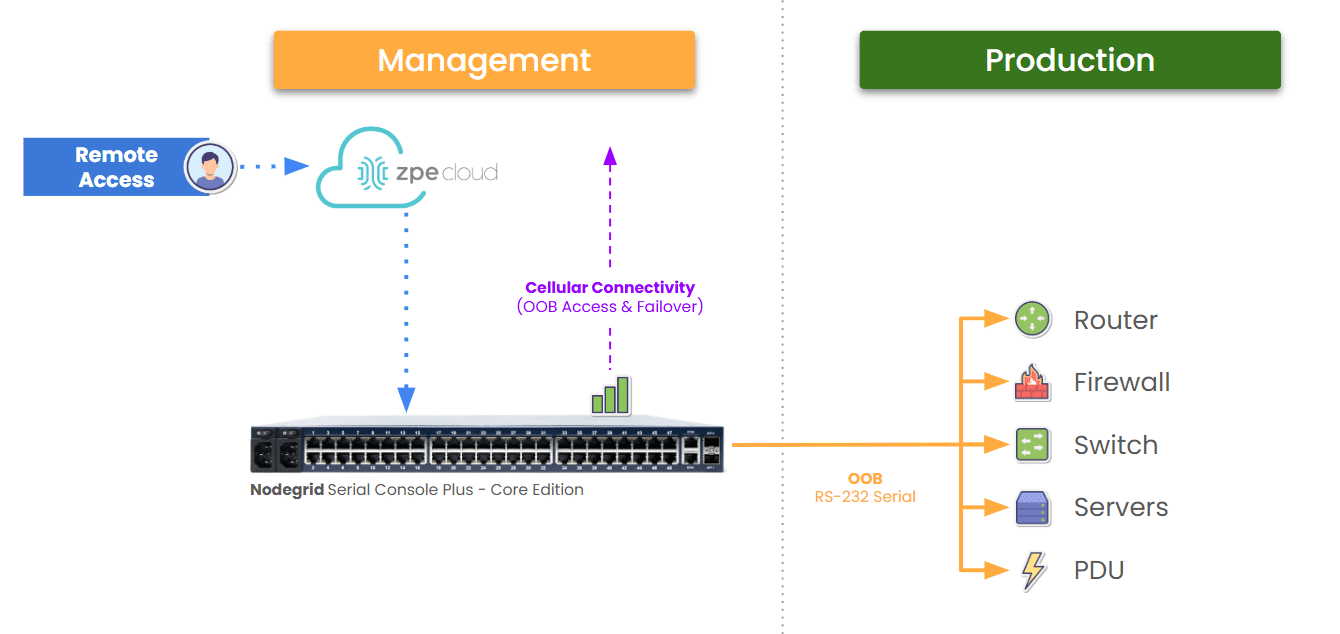

The Nodegrid Serial Console Plus - Core Edition (NSCP Core Edition) is ideal for addressing common break-fix use cases in data centers, colocations, and branch offices. IT admins use this to gain secure, low-level remote access to the entire IT stack and thereby eliminate the need for truck rolls. With up to 48 ports, optional 5G cellular, and security-in-layers design, the NSCP Core Edition is a powerful and resilient replacement for traditional console server solutions.

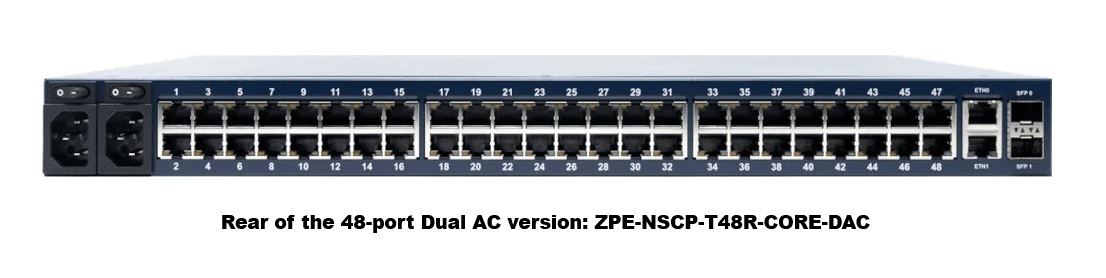

Back of the 48-port version (NSCP-T48R-CORE-DAC)
The ZPE-NSCP-T16R-CORE-DDC-AM is the direct replacement for the Raritan Dominion SX II DSX2-16M-DC. Get the same dependable SX II features, now with Nodegrid's advanced security & flexibility.
ZPE-NSCP-T16R-CORE-DDC-AM Package Contents
- (1) ZPE-NSCP-T16R-CORE-DDC-AM: ZPE Nodegrid Serial Plus - Core Edition. 16-port Cisco Rolled, 4-Core CPU, 4GB DDR4, 21GB SSD, 2 SFP, 2 GbE, 2 USB 3.0, Analog Modem, Dual DC Power inputs.
- (2) Rack Mount Ears w/ Screws
- (1) Console Cable and Adapter
- (1) User Guide
- (1) Warranty Card - 2 Years
Nodegrid Serial Console Core Edition Resources & Support
ZPE Systems NSCP-CORE Datasheet (PDF)Nodegrid Serial Console Plus - Core Edition - Hardware Installation Guide
Migrating from Raritan's Dominion SX II to ZPE Systems
ZPE Systems ZPE-NSCP-T16R-CORE-DDC-AM Specifications
| CPU | Intel x86_64 Quad-Core |
| Memory & Storage | 4 GB of DDR4 DRAM, 32 GB SSD |
| Interfaces | 16 x RS-232 serial ports on RJ45 @ 230,400 bps max/port 2 x SFP+ (10Gb) and 2 x Ethernet (10/100/1000) interfaces on RJ45 1 x RS-232 serial console port on RJ45 2 x USB 3.0 Host on Type A connector 1 x Analog Modem |
| Accessibility | 2 x SFP+ Ethernet ports and 2 x Gigabit Ethernet ports with Multiple Routing Table and failover to Analog modem |
| Networking | IPv4 / IPv6 Support VLAN, LACP, LLDP support |
| MManaged Power Devices | ServerTech and Raritan Rack PDU's |
| Sensors | Support for a wide range of USB sensors |
| Software Specifications | |
| Port Access | Direct access by port name, TCP port, device name and IPv4/IPv6 100+ simultaneous sessions Port sharing Command line interface (CLI) Port custom field support, port icon configuration, port search Break-over SSH support |
| System Management | WWeb GUI management portal, command line interface (CLI), SNMP, RESTful API Zero Touch Provisioning (ZTP) via LAN/DHCP, WAN/ZPE Cloud, USB for configuration and firmware updates Multiple and customizable user levels of access SNMPv1,v2 and SNMPv3-v1 IPv4/IPv6 Orchestration Integration and Automation: ZPE Cloud, RESTful Remote Procedure Call (RPC, gRPC) |
| Access Protocols | HTTPS, SSHv2; optional HTTP, Telnet and SSHv1 |
| Data Logging & Notifications | Local port buffering: 20 MB per port Local, NFS, Syslog, offline data logging Time stamp and rotation for data logging Event destination: Local, Syslog, Email, ZPE Cloud Notification: Local, Syslog, Email, ZPE Cloud |
| Security | Hardened device with BIOS protection, TPM 2.0, UEFI Secure Boot, Signed OS X.509 SSH certificate support, 4096-bit encryption keys Selectable cryptographic protocols for SSH and HTTPS (TLSv1.3,TLSv1.2, TLSv1.1, TLSv1) Selectable cypher suite levels: high, medium, low, custom Local, AD/LDAP, RADIUS, TACACS+, Kerberos, authentication SSAML 2.0 support via Duo, Okta, Ping Identity, ADFS Two-factor authentication with RSA and DUO Local backup-user authentication support User-access lists per port Group/Role-Based Authorization: AD/LDAP, RADIUS, TACACS+ Fine grain and role-based access control Firewall: IP packet and security filtering, IP forwarding support MD5 / SHA System Configuration Checksum System event logging to file, Syslog, email, ZPE Cloud Custom security settings Strong password enforcement |
| Operating System | Built-in x86-64bit Nodegrid OS |
| Infrastructure Specifications | |

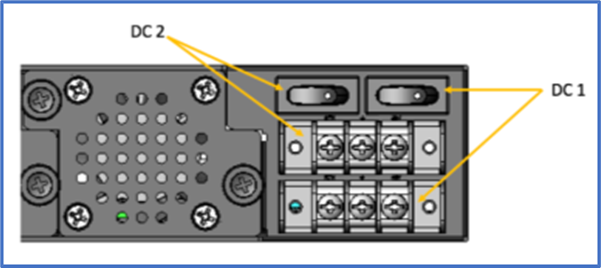

| Power | 40V-63 VDC dual power input (redundant) Dual 3-wire DC terminal blocks Power consumption 45 W typical |
| Physical | Front-Rear mounting brackets Size (L x W x H): 443 x 312 x 43 mm (17.4 x 12.3 x 1.7 in), 1U Weight: 5.265 kg (11.6 lb), depending on options Shipping weight: 2 8.745 kg (19.3 lb) Shipping (L x W x H): 533 x 497 x 209 mm (21 x 19.6 x 8.3 in) |
| Environmental | Operation: 0 to 60° C (32 to 140° F), 5-95% RH, non-cond. Storage: -20 to 67° C (-4 to 153° F), 5-95% RH, non-cond. |
| Warranty | Two Years |
