NTI Nodemux 2X2 Sun PC Multi-Platform KVM Switch



For upgrade or replacement options: Contact Us

The NODEMUX® SUN PC Multi-Platform Matrix KVM switch enables up to 2 users to individually command or simultaneously share up to 2 computers.

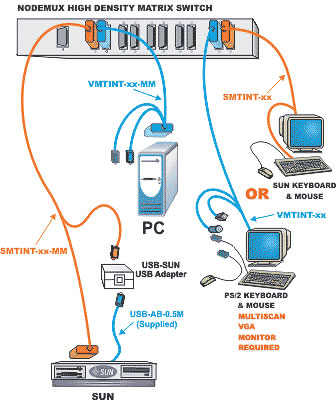

This low-cost switch accesses PC, MAC, and SUN computers (and USB computers with NTI adapters). PC, SUN or MAC keyboards and mice can be connected by using adapter cables.

  • Equipped with RS232 control.
  • Desktop model
  • Users can power-down the switch without rebooting attached computers.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Use as a single or multi-platform switch.
  • Users can work individually or share one computer.
  • Dimensions: 10" x 7.5" x 3.5"
  • Cables sold separately


  • Hosts
    • Supports PS/2 platform computers, including laptops, HP 9000, Silicon Graphics and IBM RS6000.
    • Supports SUN, including ULTRAs™, SUN Blade™ 100, SUN Blade 1000, SUN Fire™ 280R, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
    • Supports MACs, including G4,G5 and Xserve (using NTI's USB-ADB adapter).
  • Mouse
    • Smooth mouse movement.
    • Mice are hot-pluggable.
    • Compatible with all standard 2-button PS/2 mice as well as the following:
      • Microsoft IntelliMouse®.
      • Logitech (and other) 3-button mice.
      • Alps Glidepoint Touchpad (extended functions-i.e. tapping, etc.-are not supported).
      • Cirque Glidepoint Touchpad.
      • IBM Scroll Point mouse (extended stick functions are not supported).
      • Kensington Orbit Trackball.
      • Logitech 2-button Wheel Mouse.
      • Microsoft Ballpoint mouse.
    • SUN 3-button mice are supported.
      • Wheel on IntelliMouse emulates SUN's third mouse button.
    • MAC 1-button mice are supported.
    • + CLICK on the MAC mouse emulates SUN/PC right click.
  • Monitor
    • Supports crisp & clear 1900x1200 video resolution with no degradation.
    • A multiscan VGA monitor is required to display the different video outputs from different platforms.
    • Bandwidth is 150 Mhz.
  • Keyboard
    • User devices can be PS/2, SUN or MAC.
    • Keyboard is hot-pluggable.
    • MAC and SUN startup keys are supported on all platforms of input devices.
    • Keystrokes are translated across platforms.
  • Connectors
    • Female 8-pin miniDIN keyboard and mouse connectors
    • Female 15-pin HD connectors
  • Power
    • 110 or 220 VAC at 50 or 60 Hz.
  • Environmental
    • Operating temperature: 32°F to 100°F (0°C to 38°C).
    • Storage temperature: -20°F to 140°F (-30°C to 60°C).
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • RS232 Control
    • Control
      • Female DB9 connector.
      • Baud rate 300 through 9600.
      • Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
    • Commands
      • RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
      • CS - causes one INx/OUTx connection to occur.
      • CA - causes all inputs to connect to specified output.
      • RO - reads what input is connected to specified output.
      • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.
