QuadraVista, 4-Port Quad Video HDMI KVM Switch

QV-4kvmHDMI

$2,995.00$2,433.44
Save $561.56
FREE Shipping on orders over $100

The Rose Electronics QuadraVista HDMI (QV-4kvmHDMI) is a flexible and powerful multi-viewer HDMI KVM with the capability to control and monitor up to four HDMI video sources on a single display. Each of the quadrants can be adjusted and positioned to any size or location on the display.

The Rose Electronics QuadraVista HDMI can be accessed locally, sending ASCII commands using HyperTerminal, or from a third party controller for control over IP.

The Rose Electronics QuadraVista HDMI provides simultaneous support for HDMI and DVI video. The video features that the QuadraVista HDMI incorporates are, automatic sensing of the input signal, Picture-in-Picture, video loss detection and automatic output monitor resolution detection.

Each of the display windows can be resized, repositioned, swapped, or locked to the present window layout. These functions are easily performed with a simple mouse click.

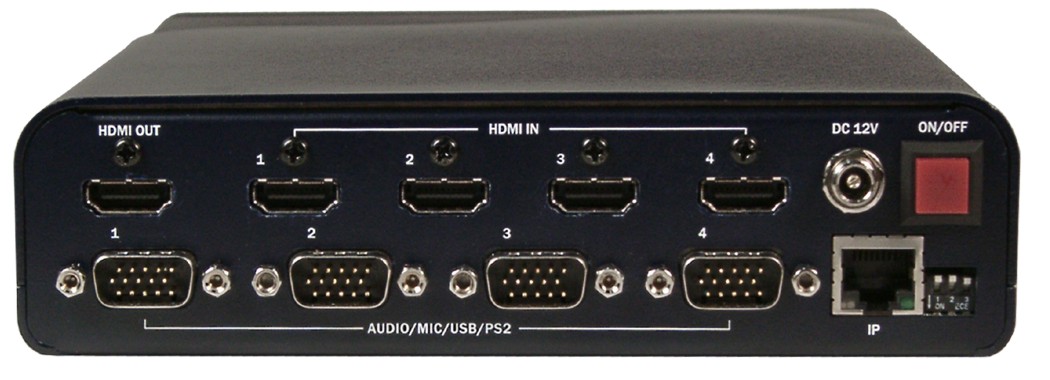

QuadraVista HDMI - rear view
QV-4kvmHDMI rear view

Features and Benefits

  • HDMI / DVI support (DVI via DVI to HDMI adapter)
  • Supports resolutions up to 1920 x 1200
  • Auto detection of input and output monitor resolutions
  • Control up to four HDMI sources on a single display
  • Adjustable quad video windows or full screen display
  • Touch screen support
  • Picture-in-Picture support
  • Four analog audio inputs / 2 built in speakers
  • Local headphone and microphone jacks
  • Customizable display with 3D borders, labels, volume bar, background picture and more
  • Full keyboard and mouse control of the HDMI source computers
  • Supports USB and PS/2 based computers
  • USB hub support for connecting USB printers, cameras, flash drives, graphic tablets and other USB compatible devices
  • Intuitive keyboard controls to toggle a window on or off, increase of decrease audio volume, toggle full screen mode on or off, switch audio source
  • Access and control the connected computers from a remote laptop using our custom access software
  • Host and remote modes

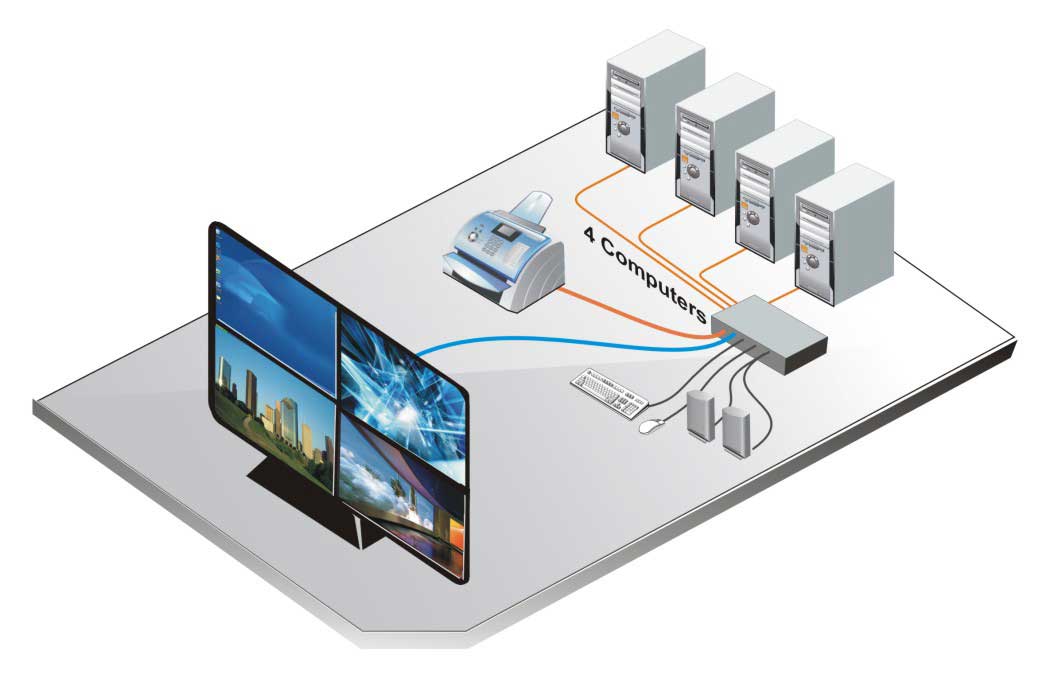

QuadraVista HDMI application diagram
QV-4kvmHDMI Typical Application

Rose QV-4kvmHDMI Package Contents

  • Rose QuadraVista HDMI unit (QV-4kvmHDMI)
  • 12V DC Power Adapter
  • US Power cord
  • USB A/B cable (Sold separate)
  • All-In-One cable (Sold separate)
  • Optional DVI to HDMI adapter (Sold separate)
  • HDMImm cable (Sold separate)
Question: I would like to have the manual for this device, were can I get it?
Answer: Thank you for your inquiry. We have uploaded the QV-4KVMHDMI manual to the product's page for your convenience.

Question: Is this their new product?
Answer: Thank you for your inquiry. The Rose Electronics QV-4KVMHDMI HDMI KVM is a newer product, but it has been available for a few years.

Question: Are the cables included?
Answer: Thank you for your inquiry,

Here are the Rose QV-4kvmHDMI package contents:
  • Rose QuadraVista HDMI unit (QV-4kvmHDMI)
  • 12V DC Power Adapter
  • US Power cord
  • USB A/B cable (Sold separate)
  • All-In-One cable (Sold separate)
  • Optional DVI to HDMI adapter (Sold separate)
  • HDMImm cable (Sold separate)
  • (See part number table for cable part numbers)

QUARDVISTA HMDI CABLE
P/NDescription
CAB-QVHAXX005Audio only
CAB-QVHXPX005PS/2 only
CAB-QVHXXU005USB ony
CAB-QVHAPX005PS/2 w/Audio
CAB-QVHAXU005USB w/Audio
CAB-QVHAPU005PS/2, USB w/Audio
CAB-QVHAXX010Audio only
CAB-QVHXPX010PS/2 only
CAB-QVHXXU010USB only
CAB-QVHAPX010PS/2 w/Audio
CAB-QVHAXU010USB w/Audio
CAB-QVHAPU010PS/2, USB w/Audio
