LCD Console Drawer w/ HDMI Multiviewer & 4-Port USB KVM Switch


Save $311.38
FREE Shipping on orders over $100

Display video from four HDMI/DVI computers simultaneously on a 1RU DVI LCD KVM drawer. Switch to and control any of the four computers while monitoring the other three connections in real time.

The RACKMUX KVM Drawer with Built-in quad screen multiviewer & USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a Quad Screen Multiviewer with USB KVM switch in a space-saving 1RU industrial strength drawer.

Features and Benefits

  • Available with forward-folding 17.1" Active Matrix LCD DVI flat panel monitor.
  • Video Resolution: 1920x1200.
  • Integrated HDMI multiviewer and USB KVM switch.
    • Simultaneously display video from four different computers on the KVM drawer's LCD display.
    • Quad, Picture in Picture, Full Screen, and Custom display modes.
  • Control up to 4 USB enabled computers with HDMI/DVI outputs.
  • Any DVI source or display can be connected by using a HDMI to DVI converter.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.

Package Includes

  • KVM Drawer
  • IEC Power Cord, country-specific
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5 patch cable
  • CD with manual and drawer installation manual
  • Single-person installation mounting kit

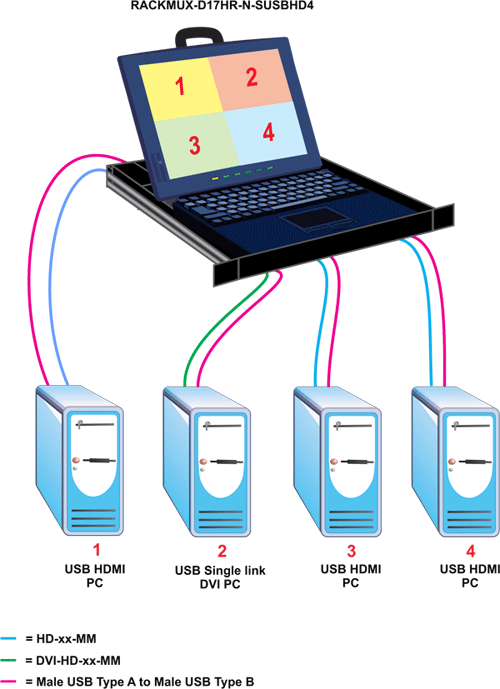

Use Diagram

Dimensions1.75" H x 21.9" D x 19" W
Weight30.5 lbs
Mounting22" (559 mm) deep to 39" (991 mm) deep.
FormatHDMI 1.4
Resolution1920 x 1200
Use110 or 220 VAC at 50 or 60 Hz via IEC connector
Operating Temp.32 to 104°F (0 to 40°C)
Storage Temp.-4 to 140°F (-20 to 60°C).
Humidity20 to 90% RH (No Condensation)
WarrantyTwo years
Question: Where is the serial number located on the RACKMUX-D17HR-N-SUSBHD4
Answer: Thank you for your inquiry,

According to the vendor, the serial number of the unit is located on a Sticker on the bottom of the RACKMUX-D17HR-N-SUSBHD4.

Please let us know if there is anything else we can help you with!
