NTI Rackmount USB KVM Drawer with Touchpad Mouse

RACKMUX-UW15

$1,215.00

Discontinued
Recommended replacement: NTI RACKMUX-V15
Alternative options: Contact Us

The NTI RACKMUX USB KVM Drawer (RACKMUX-UW15) combines a rackmount LCD monitor, USB keyboard and touchpad mouse in a space-saving 1RU industrial strength drawer.

NTI RACKMUX USB KVM Drawer (RACKMUX-UW15) Features

  • Available with 15" or 17" Active Matrix LCD flat panel monitor.
  • Equipped with On Screen Display (OSD).
  • Compact, heavy-duty tactile keyboard.
  • Security lock on front panel.
  • Front panel conceals the unit when not in use.
  • Designed to fit in a standard 19" rack/cabinet.
  • Display automatically powers off when in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.



NTI RACKMUX USB KVM Drawer (RACKMUX-UW15)


NTI RACKMUX USB KVM Drawer

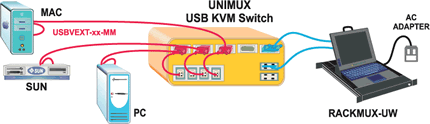

Application Diagram



NTI RACKMUX USB KVM Drawer
(RACKMUX-UW15)

Specifications

Hosts
  Compatible with USB-enabled PC, SUN or MAC computers.
Monitor
  15" Active Matrix LCD flat panel monitor.
  1024x768 video resolution
  Supports Composite sync, H/V separate (TTL) sync. Does not support Sync on Green. Not compatible with all Sun Microsystems.
Frequency:
Horizontal:  30 to 64 KHz for 15" drawers
Vertical: 50 to 75 Hz
Viewing angle:
Horizontal: 115°
Vertical: 115°




OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
  250 nits brightness and 350:1 contrast ratio typical.
  Supports DDC1 and DDC2B protocols.
Devices
  Female USB Type A connector.
  "Gold Crosspoint" keyboard contacts ensure high reliability.
  105-key keyboard.
  Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.
  Two button touchpad mouse.
Cables
  6-foot 15 HD VGA male to male cable included.
  6-foot USB Type A male to male cable included for the 15" model.
  6-foot DC power supply cable included.
Power
  110 or 220 VAC at 50 or 60 Hz via AC Adapter.
Power consumption:
  15" model: 20W
Environmental
Operating temperature:  32°F to 104°F (0°C to 40°C)
Storage temperature:  -4°F to 140°F (-20°C to 60°C).
Operating and Storage Relative Humidity:  5 to 95% non-condensing RH.
Dimensions
WxDxH (in.) 19x20.1x1.75.
Drawer is adjustable to various rack depths. 15" drawer ranges from 20.1" to 31.5".
